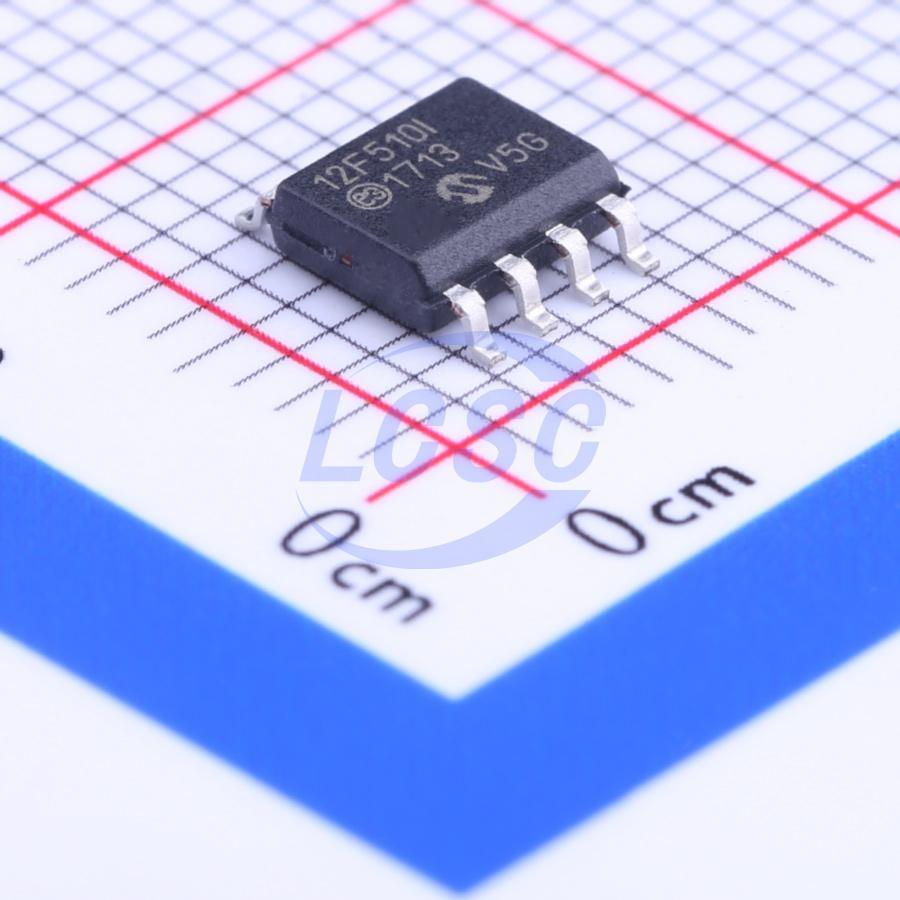

PIC12F510-I/SN

Key features

• Only 33 Single-Word Instructions to Learn
• All Single-Cycle Instructions except for Program Branches, which are Two-Cycle
• 12-Bit Wide Instructions
• Two-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing modes for Data and Instructions
• 8-Bit Wide Data Path
• 10 Special Function Hardware Registers (PIC12F510)
• 13 Special Function Hardware Registers (PIC16F506)
• Operating Speed: DC - 8 MHz Crystal Oscillator (PIC12F510); DC - 500 ns instruction cycle (PIC12F510); DC - 20 MHz Crystal Oscillator (PIC16F506); DC - 200 ns instruction cycle (PIC16F506)
• 4 or 8 MHz Selectable Precision Internal Oscillator: Factory calibrated to ±1%
• In-Circuit Serial Programming TM (ICSPTM)
• In-Circuit Debugging (ICD) Support
• Power-on Reset (POR)
• Device Reset Timer (DRT): Short DRT (1.125 ms, typical) for INTOSC, EXTRC and EC; DRT (18 ms, typical) for HS, XT and LP
• Watchdog Timer (WDT) with Dedicated On-Chip RC Oscillator for Reliable Operation
• Programmable Code Protection
• Multiplexed MCLR Input Pin
• Selectable Internal Weak Pull-Ups on I/O Pins
• Power-Saving Sleep mode
• Wake-up from Sleep on Pin Change
• Wake-up from Sleep on Comparator Change
• Selectable Oscillator Options: INTOSC: 4/8 MHz precision Internal oscillator; EXTRC: External low-cost RC oscillator; XT: Standard crystal/resonator; LP: Power-saving, low-frequency crystal; HS: High-speed crystal/resonator (PIC16F506 only); EC: High-speed external clock input (PIC16F506 only)
• Analog-to-Digital (A/D) Converter: 8-bit resolution, 4-input channels (1 channel is dedicated to conversion of the internal 0.6V absolute voltage reference)
• High Current Sink/Source for Direct LED Drive
• 8-Bit Real-Time Clock/Counter (TMR)
