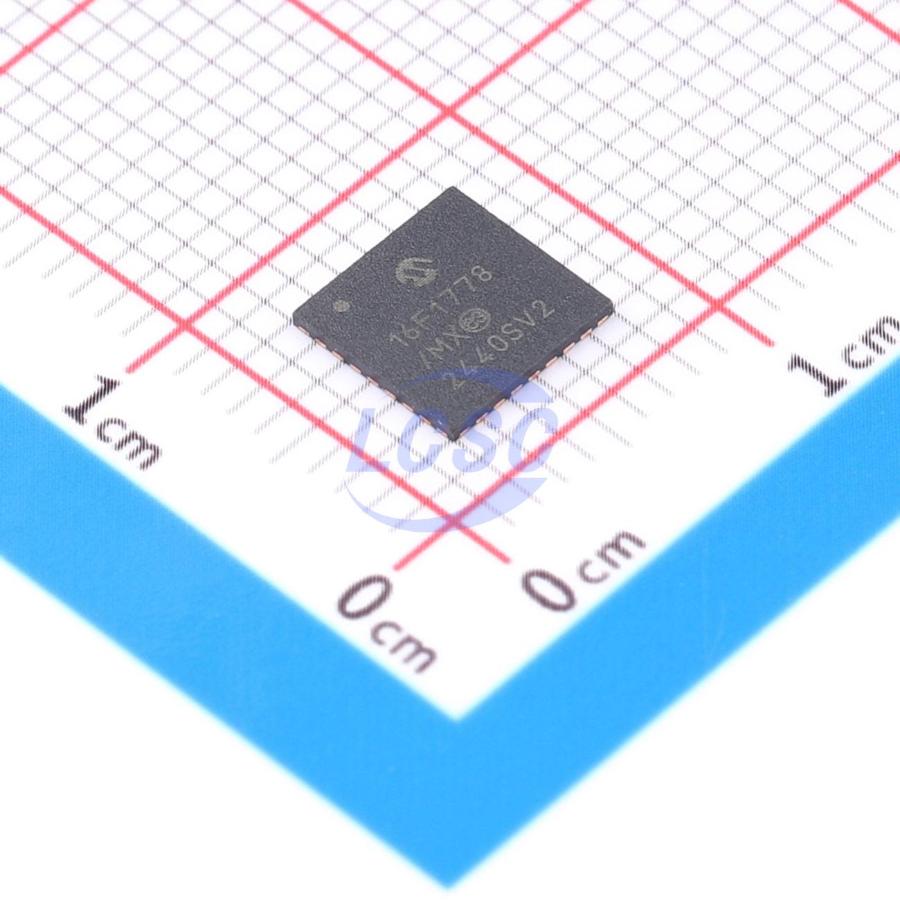

PIC16F1778-E/MX

PIC16(L)F1777/8/9 microcontrollers feature a high level of integration of intelligent analog and digital peripherals for a wide range of applications, such as lighting, power supplies, battery charging, motor control and other general purpose applications. These devices deliver multiple op amps, 5-/10-bit DACs, high-speed comparators, 10-bit ADC, 10-/16-bit PWMs, programmable ramp generator (PRG) and other peripherals that can be connected internally to create closedloop systems without using pins or the printed circuit board (PCB) area. The 10-/16-bit PWMs, digital signal modulators and tri-state output op amp can be used together to create a LED dimming engine for lighting applications. The peripheral pin select (PPS) functionality provides flexibility, eases PCB layout and peripheral utilization by allowing digital peripheral pin mapping to an I/O.

Applications

• lighting
• power supplies
• battery charging
• motor control
• general purpose applications

Key features

• C Compiler Optimized RISC Architecture
• Only 49 Instructions
• Operating Speed:
• DC – 32 MHz clock input
• 125 ns minimum instruction cycle
• Interrupt Capability
• 16-Level Deep Hardware Stack
• Five 8-Bit Timers
• Three 16-Bit Timers
• Low-Current Power-on Reset (POR)
• Configurable Power-up Timer (PWRT)
• Brown-out Reset (BOR) with Selectable Trip Point
• Extended Watchdog Timer (EWDT):
• Low-power 31 kHz WDT
• Software selectable prescaler
• Software selectable enable
• Up to 28 Kbytes Program Flash Memory (PFM)
• Up to 2 Kbytes Data RAM
• Direct, Indirect and Relative Addressing modes
• High-Endurance Flash (HEF):
• 128B of nonvolatile data storage
• 100K Erase/Write cycles
• Operating Voltage Range:
• 1.8V to 3.6V (PIC16LF1777/8/9)
• 2.3V to 5.5V (PIC16F1777/8/9)
• Temperature Range:
• Industrial: -40℃ to 85℃
• Extended: -40℃ to 125℃
• Sleep mode: 50 nA @ 1.8V, typical
• Watchdog Timer: 500 nA @ 1.8V, typical
• Secondary Oscillator: 500 nA @ 32 kHz
• Operating Current:
• 8 uA @ 31 kHz, 1.8V, typical
• 32 uA/MHz @ 1.8V, typical
• 10-Bit Analog-to-Digital Converter (ADC):
• Up to 28 external channels
• Conversion available during Sleep
• Four Operational Amplifiers (OPA):
• Selectable internal and external channels
• Tri-state output
• Part of LED dimming engine
• Eight High-Speed Comparators (HS Comp):
• Up to nine external inverting inputs
• Up to 12 external non-inverting inputs
• Fixed Voltage Reference at inverting and non-inverting input(s)
• Comparator outputs externally accessible
• Digital-to-Analog Converters (DAC):
• Four 10-bit resolution DACs
• 10-bit resolution, rail-to-rail
• Conversion during Sleep
• Internal connections to ADCs and HS Comparators
• Voltage Reference:
• Fixed Voltage Reference (FVR)
• 1.024V, 2.048V and 4.096V output levels
• Zero-Cross Detector (ZCD):
• Detect high-voltage AC signal
• Four Programmable Ramp Generators (PRG):
• Slope compensation
• Ramp generation
• High-Current Drive I/Os:
• Up to 100 mA sink or source @ 5V
• Four Configurable Logic Cells (CLC):
• Integrated combinational and state logic
• Four Complementary Output Generators (COG):
• Push-pull, Full-Bridge and Steering modes
• Four Capture/Compare/PWM (CCP) Modules
• Pulse-Width Modulator (PWM):
• Four 16-bit PWMs
• Independent timers
• Multiple output modes (Edge-, CenterAligned, set and toggle on register match)
• User settings for phase, duty cycle, period, offset and polarity
• 16-bit timer capability
• Three 10-bit PWMs
• Digital Signal Modulator (DSM):
• Modulates a carrier signal with a digital data to create custom carrier synchronized output waveforms
• Part of LED dimming engine
• Peripheral Pin Select (PPS):
• I/O remapping of digital peripherals
• Serial Communications:
• Enhanced USART (EUSART)
• SPI, I²C, RS-232, RS-485, LIN compatible
• Auto-Baud Detect, auto-wake-up on start
• Up to 25 I/O Pins:
• Individually programmable pull-ups
• Slew rate control
• Interrupt-on-change with edge-select
• Precision Internal Oscillator:
• ±1% at calibration
• Selectable frequency range 32 MHz to 31 kHz
• 31 kHz Low-Power Internal Oscillator
• 4x Phase-Locked Loop (PLL) for up to 32 MHz Internal Operation
• External Oscillator Block with Three External Clock modes up to 32 MHz
