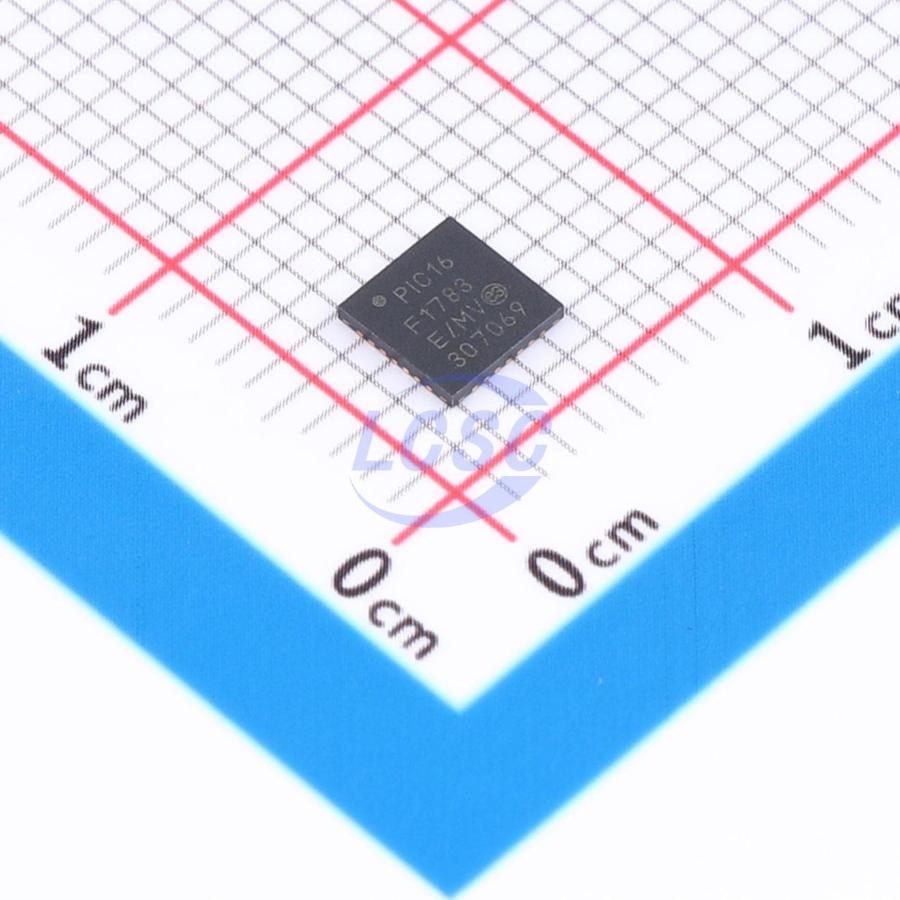

PIC16F1783-E/MV

Key features

• Only 49 Instructions
• Operating Speed: - DC – 32 MHz clock input - DC – 125 ns instruction cycle
• Interrupt Capability with Automatic Context Saving
• 16-Level Deep Hardware Stack with optional Overflow/Underflow Reset
• Direct, Indirect and Relative Addressing modes: - Two full 16-bit File Select Registers (FSRs) - FSRs can read program and data memory
• Standby Current (PIC16LF1782/1783): - 50 nA @ 1.8V, typical
• Watchdog Timer Current (PIC16LF1782/1783): - 500 nA @ 1.8V, typical
• Timer1 (32.768 kHz Real-Time Clock) Oscillator Current (PIC16LF1782/1783): - 500 nA @ 1.8V, typical
• Operating Current (PIC16LF1782/1783): - 4 μA @ 32 kHz, 1.8V, typical; - 150 μA @ 1 MHz, 1.8V, typical
• Up to 4 KW Flash Program Memory: - Self-programmable under software control - Programmable code protection - Programmable write protection
• 256 Bytes of Data EEPROM
• Up to 512 Bytes of RAM
• Two Programmable Switch Mode Controller (PSMC) modules: - Digital and/or analog feedback control of PWM frequency and pulse begin/end times - 16-bit Period, Duty Cycle and Phase - 16 ns clock resolution - Supports single PWM, complimentary, pushpull and three-phase modes of operation - Dead-band control with 8-bit counter - Auto-shutdown and restart - Leading and falling edge blanking - Burst mode
• Analog-to-Digital Converter (ADC): - Fully differential 12-bit converter - 100 ksps conversion rate - 11 single-ended channels - 5 differential channels - Positive and negative reference selection
• 8-bit Digital-to-Analog Converter (DAC): - Output available externally - Positive and negative reference selection - Internal connections to comparators, op amps, Fixed Voltage Reference (FVR) and ADC
• Three High-Speed Comparators: - 30 ns response time - Rail-to-rail inputs - Software selectable hysteresis - Internal connection to op amps, FVR and DAC
• Two Operational Amplifiers: - Rail-to-rail inputs/outputs - High/Low selectable Gain Bandwidth Product - Internal connection to DAC and FVR
• Fixed Voltage Reference (FVR): - 1.024V, 2.048V and 4.096V output levels - Internal connection to ADC, Comparators and DAC
• Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler
• Enhanced Timer1: - 16-bit timer/counter with prescaler - External Gate Input mode - Dedicated low-power 32 kHz oscillator driver
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Two Capture/Compare/PWM modules (CCP): - 16-bit Capture, maximum resolution 12.5 ns - 16-bit Compare, max resolution 31.25 ns - 10-bit PWM, max frequency 32 kHz
• Master Synchronous Serial Port (SSP) with SPI and I²C with: - 7-bit address masking - SMBus/PMBus compatibility
• Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART): - RS-232, RS-485 and LIN compatible - Auto-baud detect - Auto-wake-up on start
• Operate up to 32 MHz from Precision Internal Oscillator: - Factory calibrated to ±1%, typical - Software selectable frequency range from 32 MHz to 31 kHz
• 31 kHz Low-Power Internal Oscillator
• 32.768 kHz Timer1 Oscillator: - available as system clock - Low power RTC
• External Oscillator Block with: - 4 crystal/resonator modes up to 32 MHz using 4x PLL - 3 external clock modes up to 32 MHz
• 4x Phase-Locked Loop (PLL)
• Fail-Safe Clock Monitor: - Detect and recover from external oscillator failure
• Two-Speed Start-up: - Minimize latency between code execution and external oscillator start-up
• Up to 24 I/O Pins and 1 Input-only Pin: - High current sink/source for LED drivers - Individually programmable interrupt-onchange pins - Individually programmable weak pull-ups - Individual input level selection - Slew rate control on selected output pins - Open drain outputs on selected output pins
• Power-Saving Sleep mode
• Power-on Reset (POR)
• Power-up Timer (PWRT)
• Oscillator Start-up Timer (OST)
• Brown-out Reset (BOR) with Selectable Trip Point
• Extended Watchdog Timer (WDT)
• In-Circuit Serial Programming (ICSP)
• In-Circuit Debug (ICD)
• Enhanced Low-Voltage Programming (LVP)
• Operating Voltage Range: - 1.8V to 3.6V (PIC16LF1782/1783) - 2.3V to 5.5V (PIC16F1782/1783)
