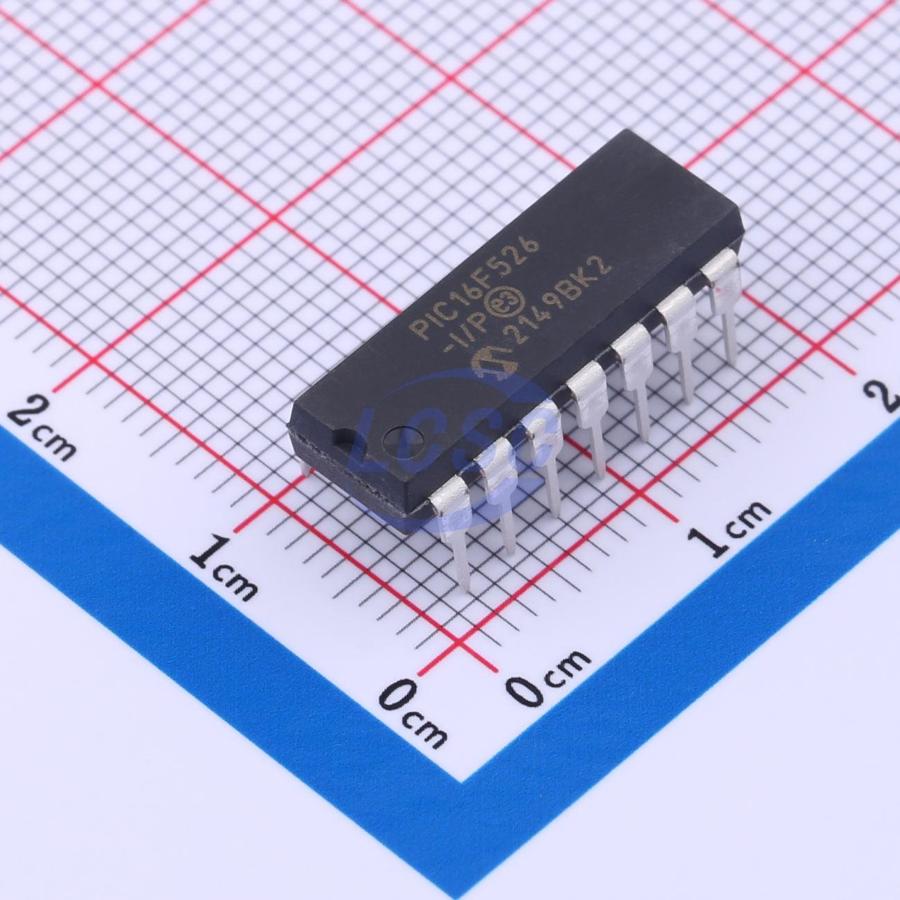

PIC16F526-I/P

Key features

• Only 33 Single-Word Instructions
• All Single-Cycle Instructions except for Program Branches which are Two-Cycle
• Two-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing modes for Data and Instructions
• Operating Speed: DC – 20 MHz crystal oscillator, DC – 200 ns instruction cycle
• On-chip Flash Program Memory: 1024x12
• General Purpose Registers (SRAM): 67x8
• Flash Data Memory: 64x8
• 8 MHz Precision Internal Oscillator: Factory calibrated to ±1%
• In-Circuit Serial Programming (ICSP)
• In-Circuit Debugging (ICD) Support
• Power-On Reset (POR)
• Device Reset Timer (DRT)
• Watchdog Timer (WDT) with Dedicated On-Chip RC Oscillator for Reliable Operation
• Programmable Code Protection
• Multiplexed MCLR Input Pin
• Internal Weak Pull-ups on I/O Pins
• Power-Saving Sleep mode
• Wake-Up from Sleep on Pin Change
• Selectable Oscillator Options: INTRC: 4 MHz or 8 MHz precision Internal RC oscillator, EXTRC: External low-cost RC oscillator, XT: Standard crystal/resonator, HS: High-speed crystal/resonator, LP: Power-saving, low-frequency crystal, EC: High-speed external clock input
• Standby current: 100 nA @ 2.0V, typical
• Operating current: 11 μA @ 32 kHz, 2.0V, typical; 175 μA @ 4 MHz, 2.0V, typical
• Watchdog Timer current: 1 μA @ 2.0V, typical; 7 μA @ 5.0V, typical
• High Endurance Program and Flash Data Memory cells: 100,000 write Program Memory endurance, 1,000,000 write Flash Data Memory endurance
