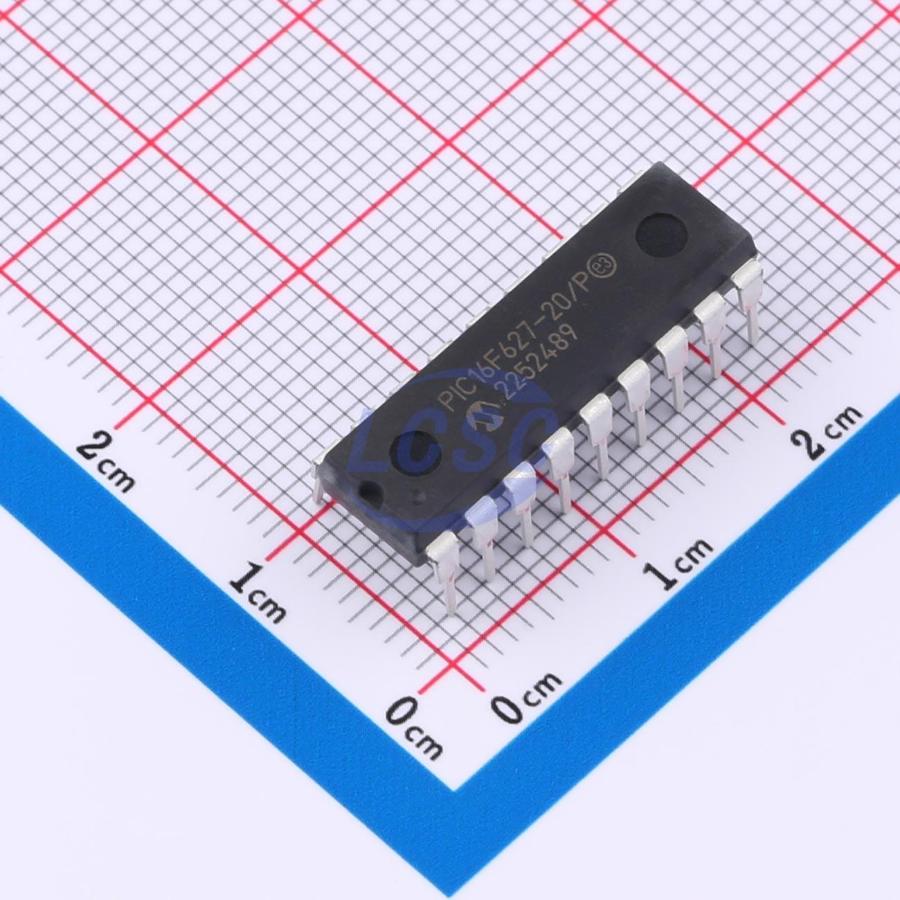

PIC16F627-20/P

Key features

• Only 35 instructions to learn
• All single cycle instructions (200 ns), except for program branches which are two-cycle
• Operating speed: DC - 20 MHz clock input, DC - 200 ns instruction cycle
• Interrupt capability
• 16 special function hardware registers
• 8-level deep hardware stack
• Direct, Indirect and Relative addressing modes
• 16 I/O pins with individual direction control
• High current sink/source for direct LED drive
• Analog comparator module with: Two analog comparators, Programmable on-chip voltage reference (VREF) module, Programmable input multiplexing from device inputs and internal voltage reference, Comparator outputs are externally accessible
• Timer0: 8-bit timer/counter with 8-bit programmable prescaler
• Timer1: 16-bit timer/counter with external crystal/clock capability
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Capture, Compare, PWM (CCP) module: Capture is 16-bit, max. resolution is 12.5 ns, Compare is 16-bit, max. resolution is 200 ns, PWM max. resolution is 10-bit
• Universal Synchronous/Asynchronous Receiver/Transmitter USART/SCI
• 16 Bytes of common RAM
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Brown-out Detect (BOD)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Multiplexed MCLR-pin
• Programmable weak pull-ups on PORTB
• Programmable code protection
• Low voltage programming
• Power saving SLEEP mode
• Selectable oscillator options: FLASH configuration bits for oscillator options ER (External Resistor) oscillator, Reduced part count - Dual speed INTRC, Lower current consumption - EC External Clock input, XT Oscillator mode, HS Oscillator mode, LP Oscillator mode
• In-circuit Serial Programming (via two pins)
• Four user programmable ID locations
• Low power, high speed CMOS FLASH technology
• Fully static design
• Wide operating voltage range: PIC16F627 - 3.0V to 5.5V, PIC16F628 - 3.0V to 5.5V, PIC16LF627 - 2.0V to 5.5V, PIC16LF628 - 2.0V to 5.5V
• Commercial, industrial and extended temperature range
• Low power consumption: <2.0 mA @ 5.0V, 4.0 MHz, 15 μA typical
