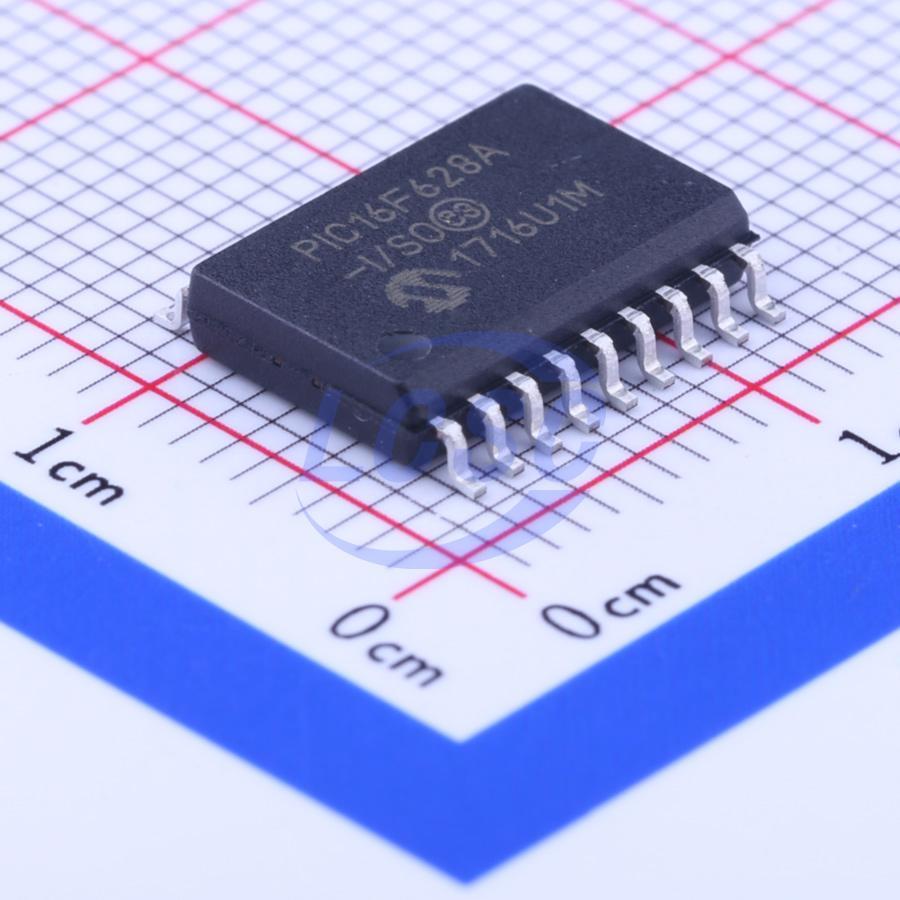

PIC16F628A-I/SO

The PIC16F627A/628A/648A series are 18-pin, 8-bit CMOS Flash microcontrollers featuring versatility, low cost, high performance, and full static operation. All PICmicro microcontrollers employ an advanced RISC architecture. The PIC16F627A/628A/648A features enhanced core functions, an 8-level deep hardware stack, and multiple internal and external interrupt sources. The Harvard architecture provides separate instruction and data buses, allowing simultaneous fetching of 14-bit wide instruction words and independent 8-bit wide data. A two-stage instruction pipeline enables all instructions except program branch instructions (which require two cycles) to execute in a single cycle. A total of 35 instructions (reduced instruction set) are available, complemented by a large register file. Compared to other 8-bit microcontrollers in its class, the PIC16F627A/628A/648A typically achieves a 2:1 code compression ratio and a 4x speed improvement. The PIC16F627A/628A/648A devices integrate numerous functional modules, reducing the need for external components, thereby lowering system cost, improving system reliability, and reducing power consumption. The PIC16F627A/628A/648A offers 8 oscillator configurations. A single-pin RC oscillator provides a low-cost solution. The LP oscillator minimizes power consumption, XT is a standard crystal oscillator, and INTOSC is a standalone high-accuracy dual-speed internal oscillator. HS mode is a high-speed crystal oscillator. EC mode uses an external clock source. Sleep (power-down) mode enables power savings. The device can be awakened from sleep via several external interrupts, internal interrupts, and reset. The highly reliable watchdog timer incorporates an on-chip RC oscillator to prevent program lockup. The PIC16F627A/628A/648A series is suited for a wide range of applications, from battery chargers to low-power remote sensors. Flash technology makes it easy to customize applications such as level detection, pulse generation, timers, and more. The small package size makes this series ideal for all space-constrained applications. Low cost, low power consumption, high performance, ease of use, and I/O flexibility make the PIC16F627A/628A/648A exceptionally versatile.

Applications

• Battery chargers
• Low-power remote sensors

Key features

• Operating speed DC to 20 MHz
• Interrupt capability
• 8-level deep hardware stack
• Direct, indirect, and relative addressing modes
• 35 single-word instructions — all single-cycle instructions except branch instructions
• Internal and external oscillator options: high-precision internal 4 MHz oscillator factory-calibrated to ±1%; low-power internal 48kHz oscillator; crystal and resonator support for external oscillator
• Power-saving Sleep mode
• Programmable weak pull-ups on PORTB
• Master Clear/input pin multiplexing
• Watchdog Timer with dedicated oscillator for reliable operation
• Low-voltage programming
• In-Circuit Serial Programming (via two pins)
• Programmable code protection
• Brown-out Reset
• Power-on Reset
• Power-up Timer and Oscillator Start-up Timer
• Wide operating voltage range (2.0V to 5.5V)
• Industrial and extended temperature ranges
• High-endurance Flash/EEPROM cells: Flash rated for 100,000 write cycles; EEPROM rated for 1,000,000 write cycles; data retention 40 years
• Standby current: typical 100 nA at 2.0V
• Operating current: typical 12μA at 32kHz, 2.0V; typical 120μA at 1MHz, 2.0V
• Watchdog Timer current: typical 1μA at 2.0V
• Timer1 oscillator current: typical 1.2μA at 32kHz, 2.0V
• Dual-speed internal oscillator: 4 MHz and 48kHz selectable; 4μs wake-up from Sleep, 3.0V, typical
• 16 I/O pins with individual direction control
• High sink/source current for direct LED drive
• Analog Comparator module featuring: two analog comparators; programmable on-chip voltage reference (VREF) module; selectable internal or external reference voltage; externally accessible comparator output
• Timer0: 8-bit timer/counter with 8-bit programmable prescaler
• Timer1: 16-bit timer/counter with external crystal/clock source capability
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler, and postscaler
• Capture/Compare/PWM module: 16-bit Capture/Compare; 10-bit PWM
• Addressable USART/SCI
