MICROCHIPDatasheet (PDF)

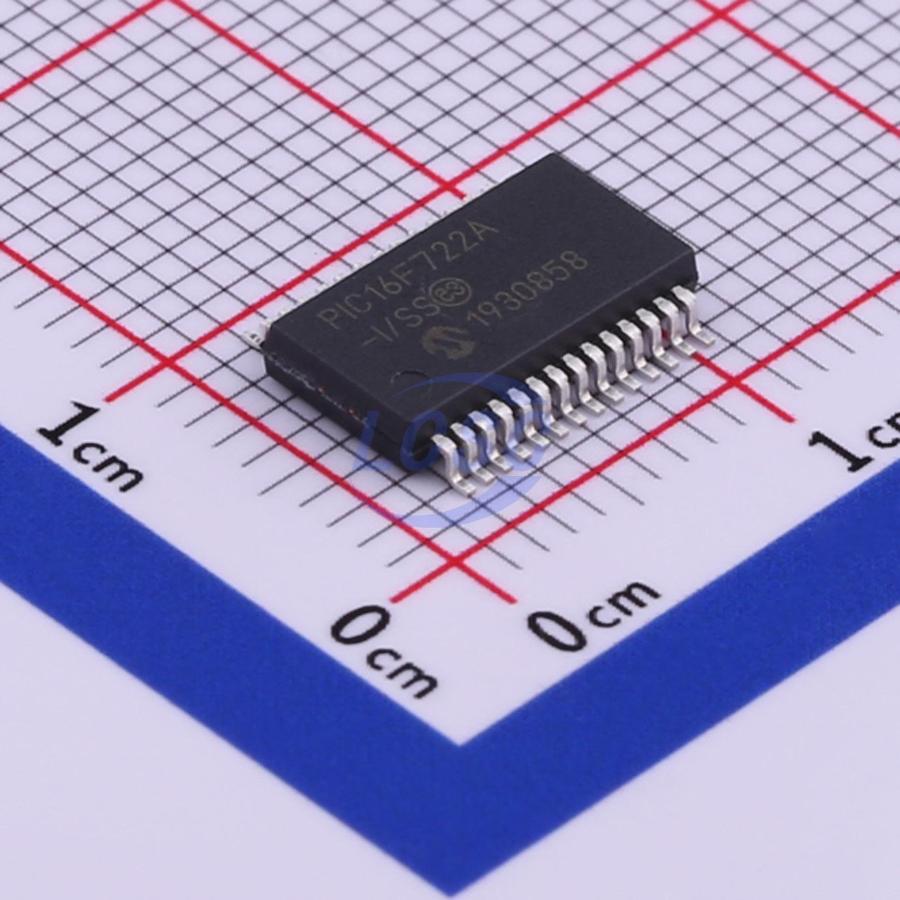

PIC16F722AT-I/SS
PIC 8 Bit 20MHz SSOP-28-208mil Microcontrollers RoHS
SSOP-28-208milROHS3 CompliantActive
28-Pin Flash Microcontrollers with XLP Technology
- Manufacturer
- MICROCHIP
- Manufacturer part #
- PIC16F722AT-I/SS
- Store part #
- C510920
- Package / case
- SSOP-28-208mil
- Category
- Microcontrollers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,033 in stock
#C510920
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹336.57 | ₹336.57 |
| 10+ | ₹288.33 | ₹2,883.30 |
| 30+ | ₹258.36 | ₹7,750.80 |
| 100+ | ₹227.49 | ₹22,749.00 |
| 500+ | ₹213.59 | ₹1,06,795.00 |
| 1,000+ | ₹207.51 | ₹2,07,510.00 |
1 × ₹336.57
₹336.57
excl. GST
₹397.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,100 per reel
PIC16F722AT-I/SS
₹336.57 for 1 + GST
Specifications
- ADC (Bit)
- 8bit
- Number of I/O
- 25
- Operating Temperature
- -40℃~+85℃
- Program Memory Type
- FLASH
- Voltage - Supply
- 1.8V~5.5V
- Program Storage Size
- 3.5KB
- CPU Core
- PIC
- Core Size
- 8 Bit
- CPU Maximum Speed
- 20MHz
- Oscillator Type
- Built-in
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,100 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.339 g
Overview
Key features
- Only 35 Instructions to Learn: All single-cycle instructions except branches
- Operating Speed: DC – 20 MHz oscillator/clock input; DC – 200 ns instruction cycle
- Up to 4K x 14 Words of Flash Program Memory
- Up to 192 Bytes of Data Memory (RAM)
- Interrupt Capability
- 8-Level Deep Hardware Stack
- Direct, Indirect and Relative Addressing modes
- Processor Read Access to Program Memory
- Pinout Compatible to other 28-pin PIC16CXXX and PIC16FXXX Microcontrollers
- Precision Internal Oscillator: 16 MHz or 500 kHz operation; Factory-calibrated to ±1%, typical; Software tunable; Software selectable ÷1, ÷2, ÷4 or ÷8 divider
- 1.8V-5.5V Operation – PIC16F722A/723A
- 1.8V-3.6V Operation – PIC16LF722A/723A
- Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
- Brown-out Reset (BOR): Selectable between two trip points; Disable in Sleep option
- Programmable Code Protection
- In-Circuit Serial ProgrammingTM (ICSPTM) via Two Pins
- Multiplexed Master Clear with Pull-up/Input Pin
- Industrial and Extended Temperature Range
- Power-Saving Sleep mode
- Sleep Mode: 20 nA (PIC16LF722A/723A with XLP)
- Watchdog Timer: 500 nA (PIC16LF722A/723A with XLP)
- Timer1 Oscillator: 600 nA @ 32 kHz (PIC16LF722A/723A with XLP)
- A/D Converter: 8-bit resolution, 11 channels; Conversion available during Sleep; Selectable 1.024/2.048/4.096V voltage reference
- On-chip 3.2V Regulator (PIC16F722A/723A devices only)
- 25 I/O Pins (1 Input-only Pin): High-current source/sink for direct LED drive; Interrupt-on-pin change; Individually programmable weak pull ups
- Timer0: 8-Bit Timer/Counter with 8-Bit Prescaler
- Enhanced Timer1: Dedicated low-power 32 kHz oscillator; 16-bit timer/counter with prescaler; External Gate Input mode with toggle and single shot modes; Interrupt-on-gate completion
- Timer2: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler
- Two Capture, Compare, PWM (CCP) modules: 16-bit Capture, max. resolution 12.5 ns; 16-bit Compare, max. resolution 200 ns; 10-bit PWM, max. frequency 20 kHz
- Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART)
- Synchronous Serial Port (SSP): SPI (Master/Slave); I2C (Slave) with Address Mask
- mTouch Sensing Oscillator module: Up to eight input channels
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PIC16F722A-I/SS#C15980MICROCHIP · SSOP-28-208mil | MICROCHIP | SSOP-28-208mil | 5 | ₹401.45 · 5 in stock | View |
 | PIC16F722-I/SS#C641736MICROCHIP · SSOP-28 | MICROCHIP | SSOP-28 | 5 | ₹438.12 · 5 in stock | View |
 | PIC16F723A-I/SS#C88378MICROCHIP · SSOP-28-208mil | MICROCHIP | SSOP-28-208mil | 288 | ₹184.93 · 288 in stock | View |
 | PIC16F723A-E/SS#C641737MICROCHIP · SSOP-28-208mil | MICROCHIP | SSOP-28-208mil | 20 | ₹449.63 · 20 in stock | View |
 | PIC16F726-E/SS#C641739MICROCHIP · SSOP-28-208mil | MICROCHIP | SSOP-28-208mil | 25 | ₹571.62 · 25 in stock | View |
