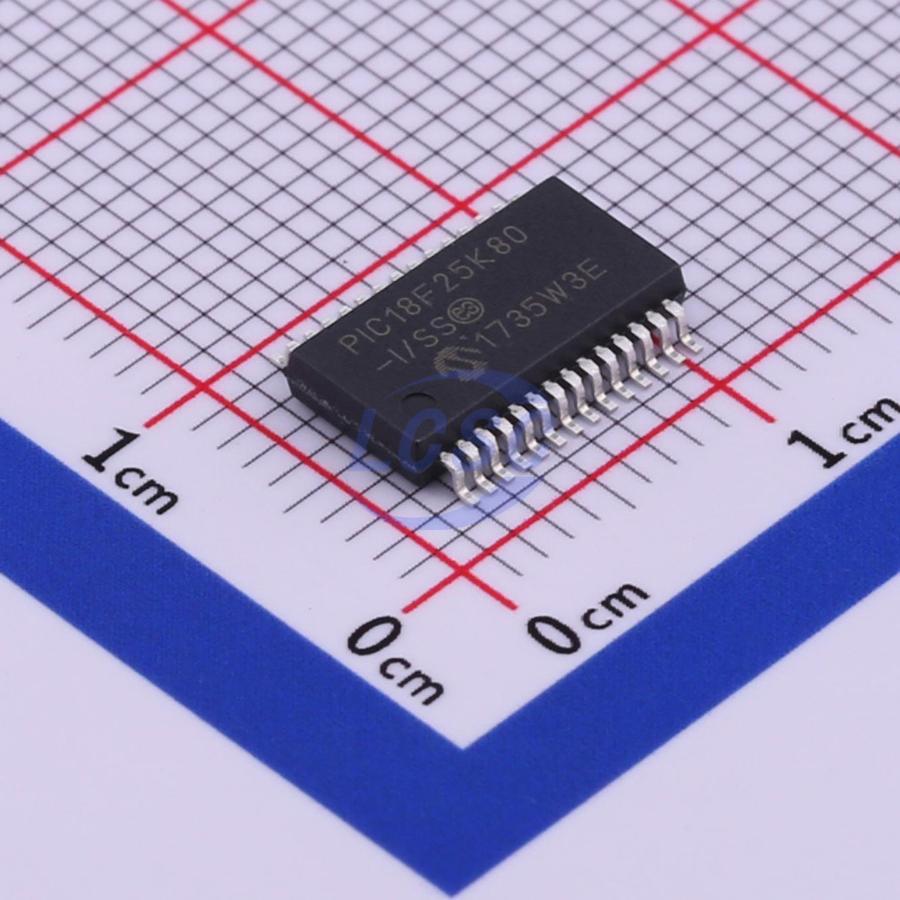

PIC18F25K80T-I/SS

Key features

• High-temperature characteristics: ambient temperature range -40°C to +150°C
• Power management modes: Run mode (CPU on, peripherals on); Idle mode (CPU off, peripherals on); Sleep mode (CPU off, peripherals off); Two-speed oscillator startup; Fail-Safe Clock Monitor (FSCM); Power-saving Peripheral Module Disable (PMD); Ultra-low-power wake-up; Fast wake-up, typical 1μs; Low-power WDT, typical 300nA; Run mode current as low as typical 3.8μA; Idle mode current as low as typical 880nA; Sleep mode current as low as typical 13nA
• ECAN module features: Compliant with CAN 2.0B Active specification; Three operating modes (Legacy mode, fully backward compatible with existing PIC18CXX8/FXX8 CAN modules; Enhanced mode; FIFO mode or programmable TX/RX buffers); Message bit rate up to 1 Mbps; DeviceNet™ data byte filtering support; Six programmable receive/transmit buffers; Three dedicated transmit buffers with priority; Two dedicated receive buffers; 16 full 29-bit receive filters with dynamic association; Three full 29-bit receive masks; Automatic remote frame handling; Advanced error management features
• Special microcontroller features: On-chip 3.3V regulator; Operating speed up to 64 MHz; 3.6 KB general-purpose registers (SRAM); Three internal oscillators (LF-INTOSC (31 kHz), MF-INTOSC (500 kHz), HF-INTOSC (16 MHz)); Interrupt priority; 8×8 single-cycle hardware multiplier; Extended WDT with programmable period from 4 ms to 4194s; In-Circuit Serial Programming (ICSP™) via two pins; In-circuit debugging via two pins; Programmable Brown-out Reset (BOR); Programmable Low-Voltage Detection (LVD)
• Peripheral highlights: Five CCP/ECCP modules (four Capture/Compare/PWM (CCP) modules, one Enhanced Capture/Compare/PWM (ECCP) module); Five 8/16-bit timer/counter modules (Timer0: 8/16-bit timer/counter with 8-bit programmable prescaler; Timer1, Timer3: 16-bit timer/counter; Timer2, Timer4: 8-bit timer/counter); Two analog comparators; Configurable reference clock output; Charge Time Measurement Unit (CTMU) (capacitance measurement, time measurement with typical resolution of 1 ns, integrated voltage reference); Up to four external interrupts; One Master Synchronous Serial Port (MSSP) module (3/4-wire SPI (all four SPI modes supported), I²C master/slave mode); Two Enhanced Addressable USART modules (LIN/J2602 support, Auto Baud Rate Detection (ABD)); 12-bit A/D converter with up to 11 channels (auto-acquisition and sleep operation, differential input mode); Data Signal Modulator module (selectable modulator and carrier source from various module outputs); Integrated voltage reference
