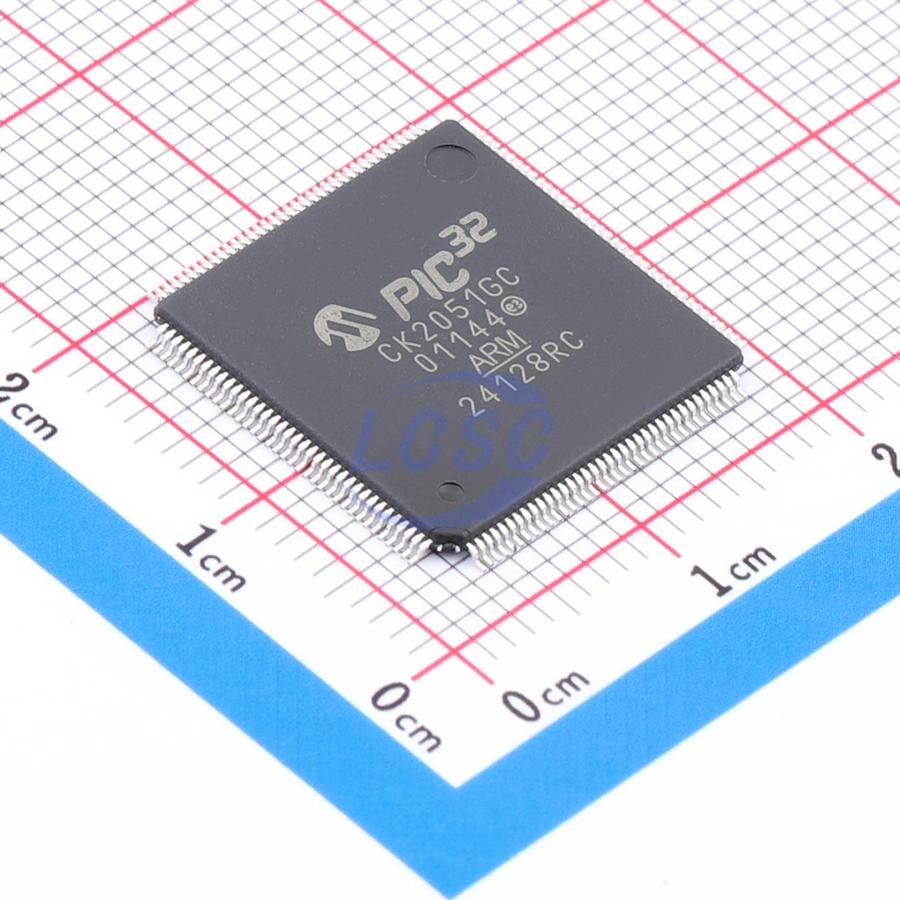

PIC32CK2051GC01144-I/4KB

This product features up to 2MB of live update flash and 512KB of SRAM, along with a Hardware Security Module (HSM), making it suitable for secure connectivity applications. Operating conditions range from 1.71V to 3.63V, with a temperature range of -48°C to -85°C, DC to 120MHz. The core employs an Arm Cortex-M33 CPU running at up to 120MHz, featuring 4KB combined instruction and data cache, NVIC, stack limit checking, single-precision FPU, DSP instructions, TrustZone for ARMv8-M (optional), ETM with ITM and TPIU, and 16 secure and 16 non-secure MPU regions. Multiple memory types are supported, with ECC, dual-bank read-while-write (RWW), write protection, and other features. Rich security capabilities include support for various cryptographic algorithms and public-key cryptography. Additional features include system integration, advanced analog, I/O, high-performance peripherals, power management, and timers.

Applications

• Secure connectivity applications
• Industrial control
• Communications equipment
• Consumer electronics
• Automotive electronics

Key features

• Up to 2MB/1MB/512KB flash, 128KB boot flash, 64KB configuration flash
• 512KB/256KB/128KB SRAM main memory, 32KB or full SRAM retainable in standby and hibernate modes
• Up to 4KB tightly coupled memory (TCM)
• Hardware Security Module (HSM) supporting AES-128, AES-192, AES-256 and other encryption algorithms
• Four 4KB secure pages for secret storage with optional data scrambling
• Integrated POR and programmable BOR, programmable LVD module
• 12-bit ADC module, 2Msps, up to 13 external channels and 2 internal channels
• Two analog comparators with window compare function
• 16×16 panel peripheral touch controller (PTC)
• High-current I/O pins, source/sink up to 20 mA, up to 107 programmable I/O lines
• Two DMA instances with 8-channel and 4-channel respectively
• Up to two Secure Digital Host Controller (SDHC) interfaces
• One Ethernet MAC supporting 10/100 Mbps
• One 16-bit external bus interface
• One full-speed (12 Mbps) USB 2.0 interface
• One USB 2.0-compliant high-speed controller
• Parallel Capture Controller (PCC) with up to 14-bit parallel capture mode
• Idle, standby, and hibernate modes with sleepwalking peripheral support
• Four 32-bit Timer/Counters for Control (TCC) with extended features
