PJSEMIDatasheet (PDF)

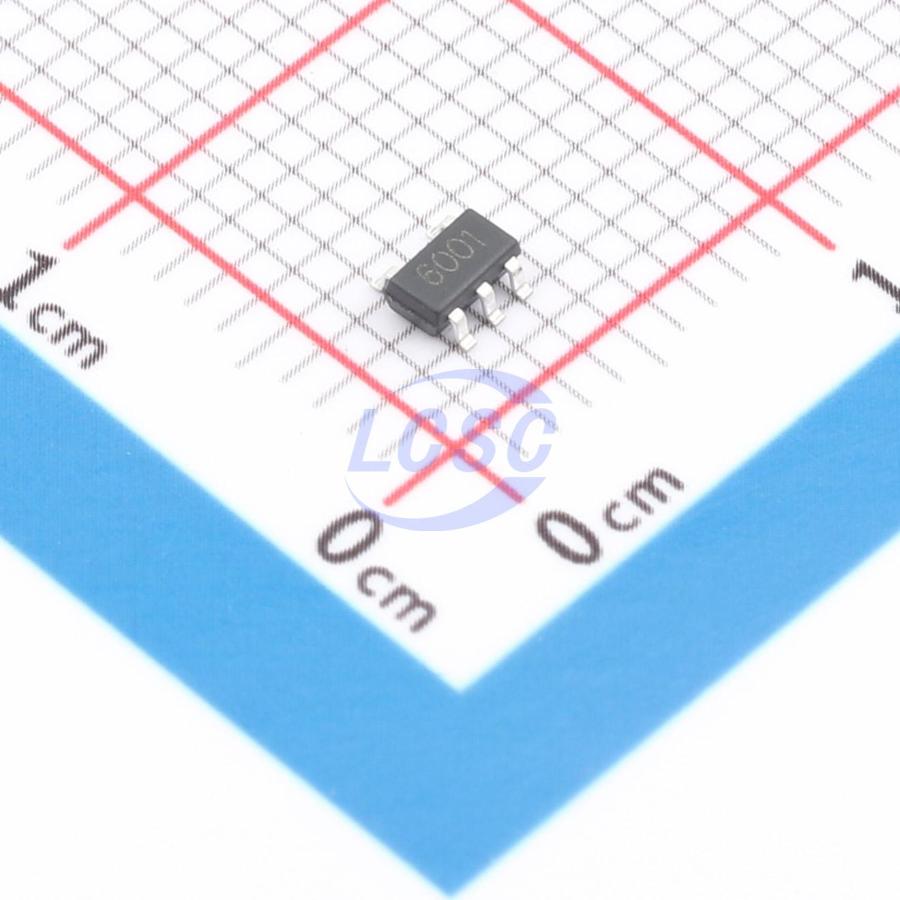

PJS6001SE
Step-down type 2MHz Fixed 2.2A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJS6001SE
- Store part #
- C53222319
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C53222319
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.66 | ₹53.30 |
| 50+ | ₹8.47 | ₹423.50 |
| 150+ | ₹7.38 | ₹1,107.00 |
| 500+ | ₹6.55 | ₹3,275.00 |
| 3,000+ | ₹5.90 | ₹17,700.00 |
| 6,000+ | ₹5.57 | ₹33,420.00 |
5 × ₹10.66
₹53.30
excl. GST
₹62.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJS6001SE
₹53.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+165℃
- Function
- Step-down type
- Frequency - Switching
- 2MHz
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2.2A
- Quiescent Current
- 70uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
PJS6001SE is a high-efficiency monolithic synchronous step-down DC/DC regulator featuring a fixed-frequency, current-mode architecture. The device is available in an adjustable output version. Quiescent current in no-load condition is 70μA, dropping to <1μA in shutdown. The 2.5V to 5.5V input voltage range makes it ideal for single-cell Li-Ion battery-powered applications. 100% duty cycle enables low dropout operation, extending battery life in portable systems. PWM/PFM mode operation provides ultralow output ripple voltage for noise-sensitive applications. The switching frequency is internally set to 2MHz, allowing the use of small surface-mount inductors and capacitors. The 0.6V feedback reference voltage easily supports low output voltages.
Applications
- Cellular phones and smartphones
- Wireless and DSL modems
- Digital cameras and camcorders
Key features
- High efficiency: up to 96%
- 2.5V to 5.5V input voltage range
- 2MHz fixed-frequency operation
- No Schottky diode required
- Low dropout operation: 100% duty cycle
- PFM mode for high efficiency at light load
- Low quiescent current: 70μA
- Over-temperature protection
- Short-circuit protection
- Inrush current limiting and soft-start
- SOT-23-5 package
