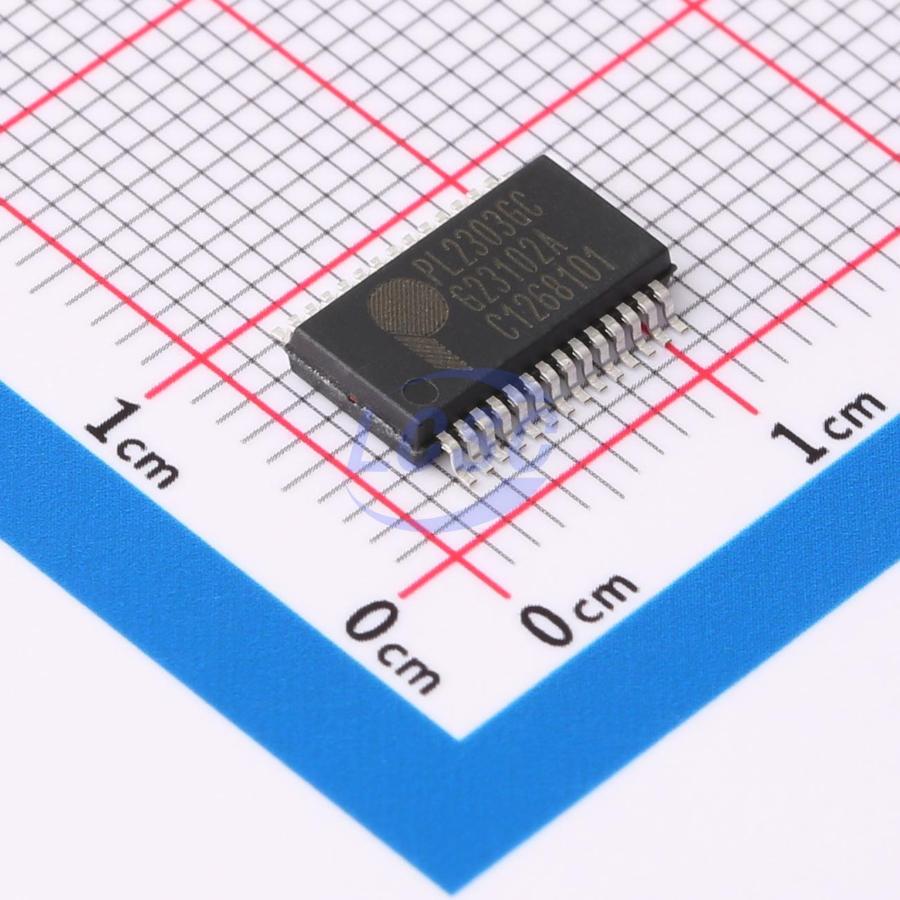

PL2303GC

PL2303GC is a single-chip USB to asynchronous serial data interface. - Fully compliant with USB 2.0 specification (Full-Speed mode), USB-IF certified (USB logo compliant), TID 40001838, compatible with UHCI/OHCI (USB 1.1), EHCI (USB 2.0), and xHCI (USB 3.1) host controllers. Royalty-free USB to Virtual COM Port (VCP) drivers for Windows, Mac, Linux, and Android. Highly integrated USB 1.1 FS transceiver with integrated termination and pull-up resistors to reduce external PCB components. Supports 256-byte OTPROM for USB device descriptor and GPIO custom configuration, directly programmable via USB port, unique ID per IC (for serial number). Supports bus-powered, self-powered, and high-power USB device configurations, Windows USB Selective Suspend (remote wakeup enabled), VBUS input detection, and 3.3V VBUS voltage operation. - General-purpose GPIO functions and routing logic provide easy-to-use multi-I/O capability, configurable I/O pin output drive strength, up to 16 GPIO pins available after configuration, optional clock output to external MCU. - Supports serial UART interface including RS232, RS422, RS485, flexible baud rate up to 12Mbps, 5/6/7/8 data bits, odd/even/mark/space/no parity, 1/1.5/2 stop bits, hardware flow control (CTS/RTS and/or DSR/DTR), software flow control (XON/XOFF), configurable remote wakeup pin, 1024-byte bi-directional data FIFO buffer (768-byte RX / 256-byte TX) for higher data throughput, configurable via OTPROM, configurable TX/RX LED pins, suspend pin control for RS232 transceivers, configurable UART signal inversion option. - Battery Charger (BC1.2) detection for fast battery charging. - Integrated self-generating precision clock generator with optional external crystal, integrated Power-On Reset (POR) circuit, integrated 5V to 3.3V LDO capable of supplying 80mA to external components, low operating power and USB suspend current, wide I/O voltage range (1.8V/2.5V/3.3V/5V), -40°C to 85°C operating temperature, 28-pin SSOP and 24-pin UQFN IC packages (RoHS compliant, lead-free green compound), pin-compatible with PL2303HXD (SSOP28).

Applications

• Single-chip upgrade solution for legacy RS232 devices to USB interface
• USB to RS232/RS422/RS485 interface converter/cable/dongle/adapter
• MCU-based device to USB host interface
• Point-of-Sale (POS) terminal/printer/pole display
• USB barcode/smart card reader
• PC I/O docking station/port replicator
• Healthcare/medical USB interface data transfer cable
• IP-based serial wireless solution
• Cellular/PDA USB interface data transfer cable
• GPS/navigation USB interface
• Industrial/instrumentation/automation control USB interface
• USB modem/wireless/Zigbee USB interface
• Set-Top Box (STB)/home gateway USB interface
• Battery charger detection for high-current fast charging

Key features

• Fully compliant with USB 2.0 specification (Full Speed mode), USB-IF certified (USB logo compliant), TID 40001838
• Compatible with UHCI/OHCI (USB 1.1), EHCI (USB 2.0), and xHCI (USB 3.1) host controllers
• Royalty-free USB to Virtual COM Port (VCP) drivers for Windows, Mac, Linux, and Android
• Highly integrated USB 1.1 FS transceiver
• Integrated termination and pull-up resistors to reduce external PCB components
• Supports 256-byte OTPROM for USB device descriptor and GPIO custom configuration
• OTPROM programmable directly via USB port
• Unique ID per IC (for serial number use)
• Supports bus-powered, self-powered, and high-power USB device configurations
• Supports Windows USB Selective Suspend (with Remote Wakeup enabled)
• VBUS input detection — connects to USB host upon VBUS detection
• Supports 3.3V VBUS voltage operation
• Multi-function GPIO with routing logic for versatile multi-I/O functionality
• Configurable I/O pin output drive strength
• 16 general-purpose I/O (GPIO) pins, ready to use after configuration
• Optional clock output to external MCU
• Supports serial UART interfaces: RS232, RS422, RS485
• Flexible baud rate support up to 12Mbps
• 5, 6, 7, or 8 data bits
• Odd, Even, Mark, Space, and None parity modes
• 1, 1.5, or 2 stop bits
• Hardware flow control (CTS/RTS and/or DSR/DTR)
• Software flow control (XON/XOFF)
• Configurable remote wakeup pin
• 1024-byte bi-directional data FIFO buffer (768-byte RX / 256-byte TX) for enhanced data throughput
• Configurable via OTPROM
• Configurable TX and RX LED pins
• Suspend pin control for RS232 transceiver
• Configurable UART signal inversion option
• Supports Battery Charger (BC1.2) detection for fast battery charging
• Integrated self-generating precision clock oscillator with optional external crystal
• Integrated Power-On Reset (POR) circuit
• Integrated 5V to 3.3V LDO capable of supplying 80mA to external components
• Low operating power and USB suspend current
• Wide I/O voltage range (1.8V / 2.5V / 3.3V / 5V)
• Operating temperature: -40°C to 85°C
• 28-pin SSOP and 24-pin UQFN packages (RoHS compliant, lead-free green compound)
• Pin-compatible with PL2303HXD (SSOP28)
