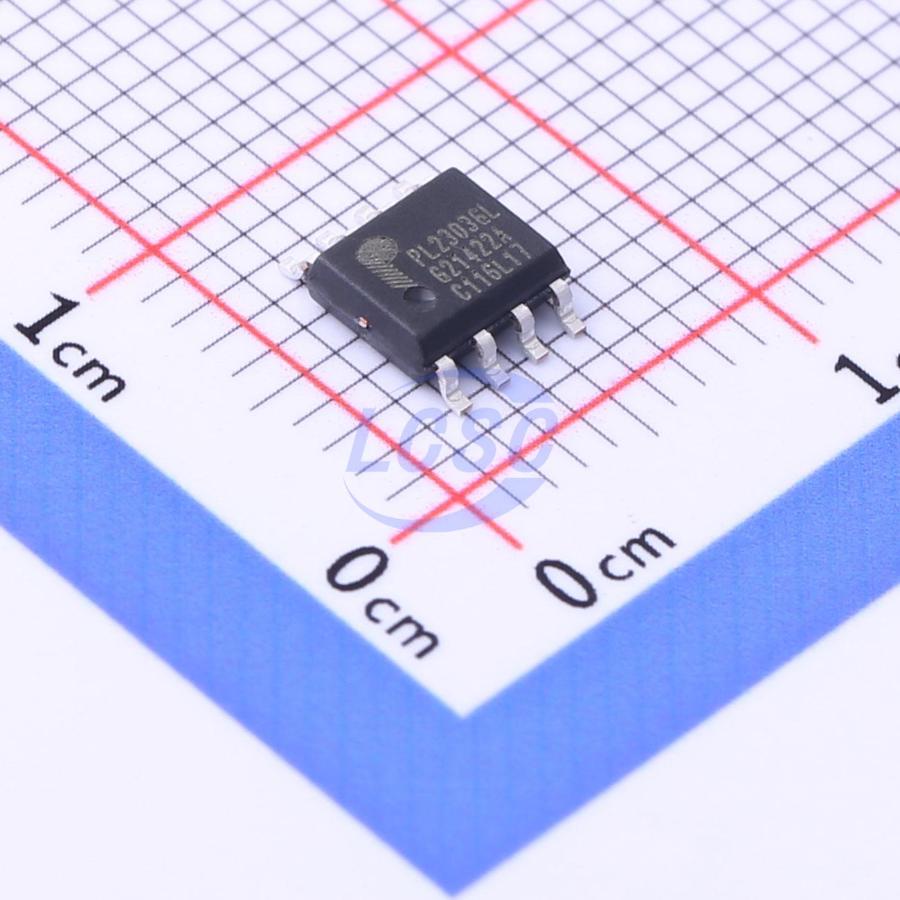

PL2303GL
USB to UART 115.2Kbps USB 2.0 SOP-8 Interface Controllers RoHS
USB to Serial Bridge Controller
- Manufacturer
- Prolific Tech
- Manufacturer part #
- PL2303GL
- Store part #
- C2905408
- Package / case
- SOP-8
- Category
- Interface Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,690 in stock
#C2905408
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹211.98 | ₹211.98 |
| 10+ | ₹177.89 | ₹1,778.90 |
| 30+ | ₹156.60 | ₹4,698.00 |
| 100+ | ₹134.67 | ₹13,467.00 |
| 500+ | ₹124.68 | ₹62,340.00 |
| 1,000+ | ₹120.33 | ₹1,20,330.00 |
1 × ₹211.98
₹211.98
excl. GST
₹250.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PL2303GL
₹211.98 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.8V;2.5V;3.3V;5V
- Features
- Programmable baud rate;Power-on reset;FIFO buffer;Built-in clock generator
- Applications Function
- USB to UART
- Data Rate
- 115.2Kbps
- Quiescent Supply Current
- 250uA
- USB Protocol
- USB 2.0
- Current - Supply
- 9.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
The new PL2303GL chip is one of the latest G-Series IC product added to the popular PL2303 USB to Serial (UART) Bridge Controller family, replacing the PL2303SA SOP8 small footprint chip. It provides an advanced full-featured single-chip bridge solution for connecting a full-duplex UART asynchronous serial interface device (TX-RX only) to any Universal Serial Bus (USB) capable host. The PL2303GL provides highly compatible USB drivers to simulate th
Applications
- Single-chip upgrade solution for Legacy RS232 devices to USB interface
- MCU-based devices to USB host interface
- Healthcare/Medical USB Interface Data Transfer Cable
- Cellular/PDA USB Interface Data Transfer Cable
- GPS/Navigation USB Interface
- Industrial / Instrumentation / Automation Control USB Interface
- USB Wireless / Zigbee USB Interface
Key features
- USB Interface- Fully Compliant with USB 2.0 specification (Full-Speed Mode)
- USB-IF certified (USB logo compliant) with TID 40001839
- UHCI/OHCI (USB 1.1), EHCI (USB 2.0), xHCI (USB 3.1) Host Controller Compatible
- Provides royalty-free USB to Virtual Com Port (VCP) drivers for Windows, Mac, Linux, and Android
- Highly integrated USB 1.1 FS Transceiver. Integrated termination resistors and pull-up resistor to reduce PCB external components
- Supports OTPROM (One-Time Programmable ROM) for USB device descriptors. OTPROM can be programmed directly through USB port
- Each IC has unique ID (for Serial Number)
- Supports bus-power, self-power and high-power USB device configuration
- Supports Windows USB Selective Suspend
- Supports 3.3V VBUS voltage operation
- UART Interface- Full-duplex transmitter/receiver (TXD/RXD)
- Flexible baud rate support from 1 bps to 115200 bps
- 5, 6, 7 or 8 data bits
- Odd, Even, Mark, Space, None parity mode
- One, one and a half, or two stop bits
- Software Flow Control (XON/XOFF)
- 1024-byte bi-directional data FIFO buffers (768-byte receive/256-byte transmit) for faster data throughput
- Integrated precise self-generated clock generator. No external crystal required
- Integrated Power-on-Reset (POR) circuit
- Integrated 5V to 3.3V LDO that can support 80 mA for external components
- Low operating power and USB suspend current
- Wide I/O voltage range (1.8V/2.5V/3.3V/5V)
- -40°C to 85°C Operating Temperature
- Small footprint 8-pin SOP packages
- Pin-compatible with PL2303SA chip (SOP8)
