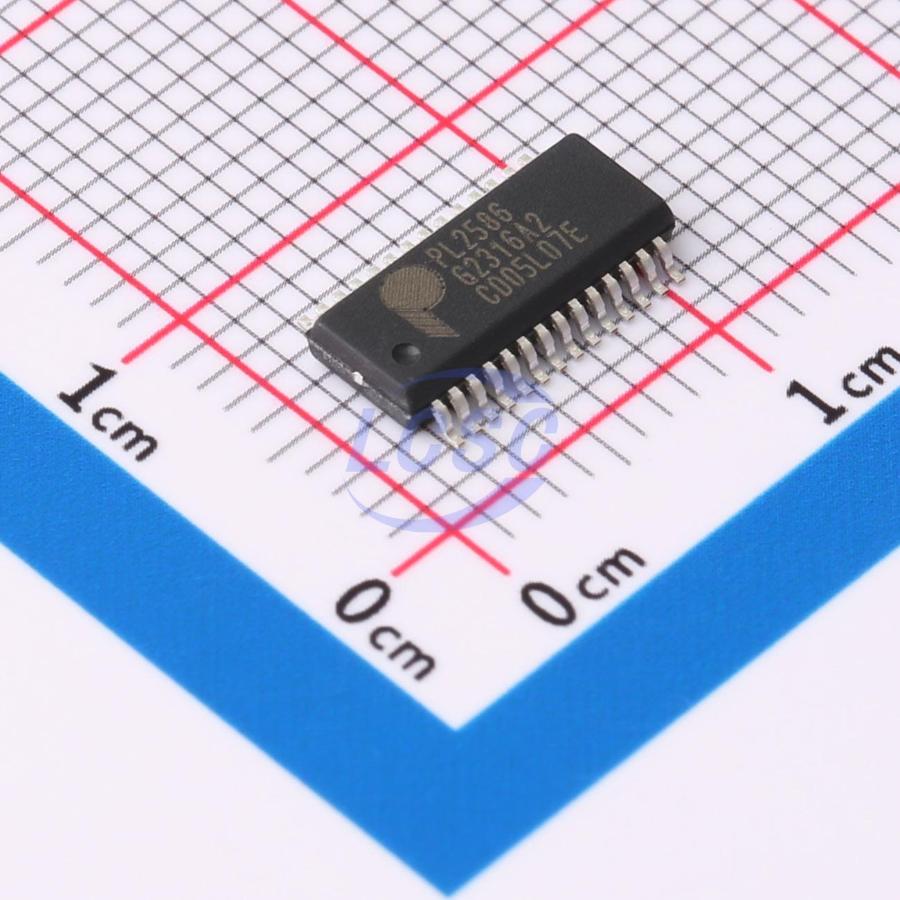

Prolific Tech

PL2586A2ZJG8P1

4 USB to USB Hub USB 2.0 SSOP-28 Interface Controllers RoHS

SSOP-28ROHS CompliantActive

USB 2.0 High Speed 4-Port Hub Controller

Manufacturer: Prolific Tech
Manufacturer part #: PL2586A2ZJG8P1
Store part #: C18184848
Package / case: SSOP-28
Category: Interface Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,370 in stock

#C18184848

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹99.09	₹99.09
10+	₹79.75	₹797.50
30+	₹70.20	₹2,106.00
100+	₹60.42	₹6,042.00
500+	₹54.76	₹27,380.00
1,000+	₹51.73	₹51,730.00

Quantity (min 1)

1 × ₹99.09

₹99.09

excl. GST

₹116.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

PL2586A2ZJG8P1

₹99.09 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Voltage - Supply: 3V~5.5V;3V~3.6V;1.08V~1.32V
Number of ports: 4
Features: Low-power mode
Applications Function: USB to USB Hub
Quiescent Supply Current: 538uA
USB Protocol: USB 2.0
Current - Supply: 135.6mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.198 g

Overview

The PL2586 is a high performance solution for USB 2.0 High Speed 4-port hub controller with fully compliant with Universal Serial Bus Specification 2.0. The controller inherits advanced serial interface technology to consume the least power when 4 DS (downstream) ports function simultaneously. The PL2586 is an innovation that integrates function to comply with USB-IF “Battery Charging Specification Revision 1.2”, which supports fast charging function for portable devices. This feature turns PL2586 into a USB Charging Hub for “Universal Charging Solution”, (UCS) compliant battery based portable devices, promoted by GSMA. The dedicate port in PL2586 can handle the charging request when B.C. compliant portable device is detected on the downstream port. And, after the handshake has been completed, PL2586 allows portable devices to draw up to 500mA (High speed); 1.5A (Low/Full speed) from charging downstream ports (CDP) or 1.5A from dedicated charging port (DCP). PL2586 adapt Single Transaction Translator (STT) and Ganged power management to achieve cost effective purpose. Users can also implement multiple Hub configuration options through external EEPROM. PL2586 supports QFN24 and SSOP28 packages targeting mainstream stand-alone 4 ports Hub market.

Key features

Compliant with USB Specification Revision 2.0
Upstream Port supports high-speed (480MHz) and full-speed (12MHz) traffic
Configurable 4/3/2 downstream ports support high-speed, full-speed, and low-speed
Backward compatible to USB Specification Revision 1.1
Compliant with USB Battery Charging Specification Revision 1.2
Integrated Fast 8051 microprocessor
12MHz Oscillator clock input
Integrated upstream 1.5KΩ pull-up downstream 15KΩ pull-down resisters
Single Transaction Translator (Single TT)
Ganged Power Control and Global Over Current detection for downstream ports
Leading small power consumption USB2.0 Hub
On chip 5V to 3.3V and 3.3V to 1.2V regulator
Automatic re-enumeration for switching between self-powered and bus-powered modes
External EEPROM interface for customized information storage
Customized VID, PID
Number of downstream port
Product ID
Serial number
Two LED port indicator mode
4 Downstream port LED (enable green) and one Active/Suspend LED (Red)
One joint Downstream port LED for 4 ports (enable green) and one Active/Suspend LED(Red)
Type of packages
QFN24
SSOP28
