VISHAYDatasheet (PDF)

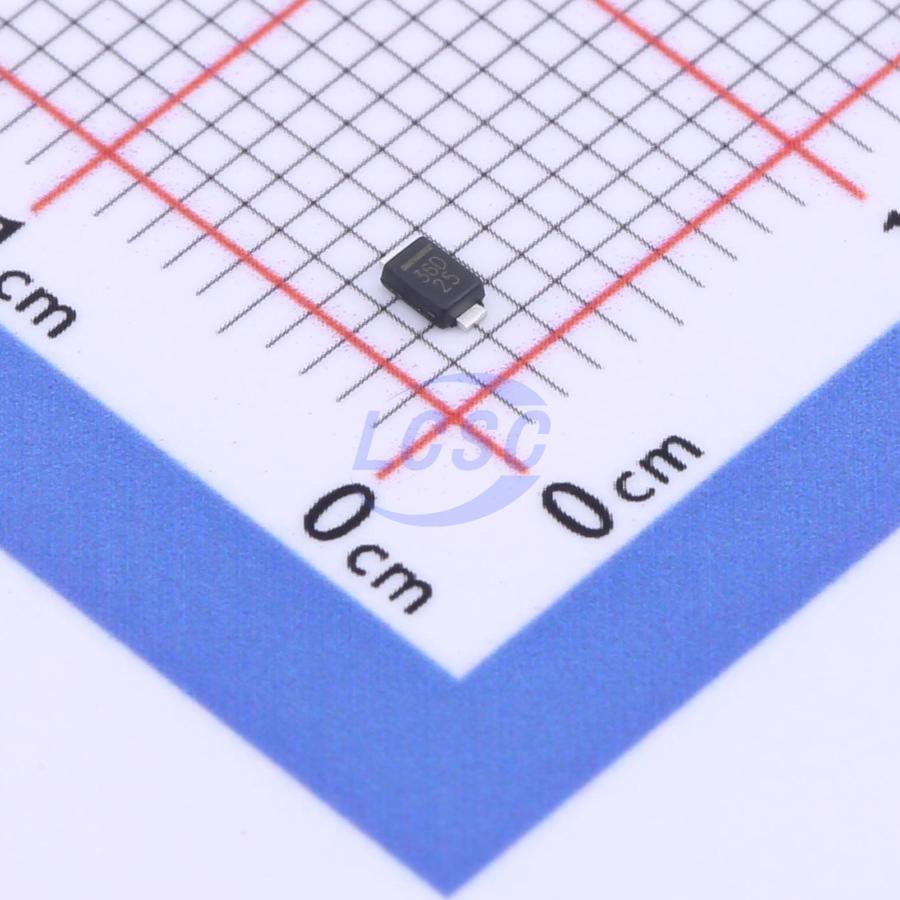

PLZ36D-G3/H
Zener Diode Independent 36V 960mW MicroSMF(DO-219AC)
MicroSMF(DO-219AC)ROHS3 CompliantActive
DIODE ZENER 36V 960mW MicroSMF(DO-219AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- PLZ36D-G3/H
- Store part #
- C3729148
- Package / case
- MicroSMF(DO-219AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
600 in stock
#C3729148
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.87 | ₹169.35 |
| 50+ | ₹33.37 | ₹1,668.50 |
| 150+ | ₹33.02 | ₹4,953.00 |
| 500+ | ₹32.68 | ₹16,340.00 |
5 × ₹33.87
₹169.35
excl. GST
₹199.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
PLZ36D-G3/H
₹169.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 960mW
- Reverse Leakage Current (Ir)
- 200nA
- Impedance(Zzt)
- 27Ω
- Zener Voltage(Range)
- 34.01V~35.77V
- Zener Voltage(Nom)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- Sillicon planar Zener diodes, ultra small
- Low profile MicroSMF (DO-219AC) package
- Low leakage current
- Excellent stability
- High temperature soldering: 260℃ / 10 s at terminals
- Wave and reflow solderable (reflow as per JPC / JEDEC J-STD 020) (double wave as per IEC 61760-1)
- AEC-Q101 qualified available
- Base P/N-G3 - RoHS-compliant, green, industrial grade
- Base P/N-HG3 - RoHS-compliant, green, AEC-Q101 qualified
- ESD immunity acc. IEC 61000-4-2 acc. to part table
- Surge performance acc. to part table
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PLZ36D-HG3_A/H#C3733775VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹6.36 · 0 in stock | View | |
| PLZ36C-HG3_A/H#C3730051VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹6.36 · 0 in stock | View | |
| PLZ36C-G3/H#C3738329VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹5.54 · 0 in stock | View | |
| PLZ36B-HG3_A/H#C3740201VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹6.36 · 0 in stock | View | |
| PLZ36A-HG3_A/H#C3741257VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹6.36 · 0 in stock | View | |
