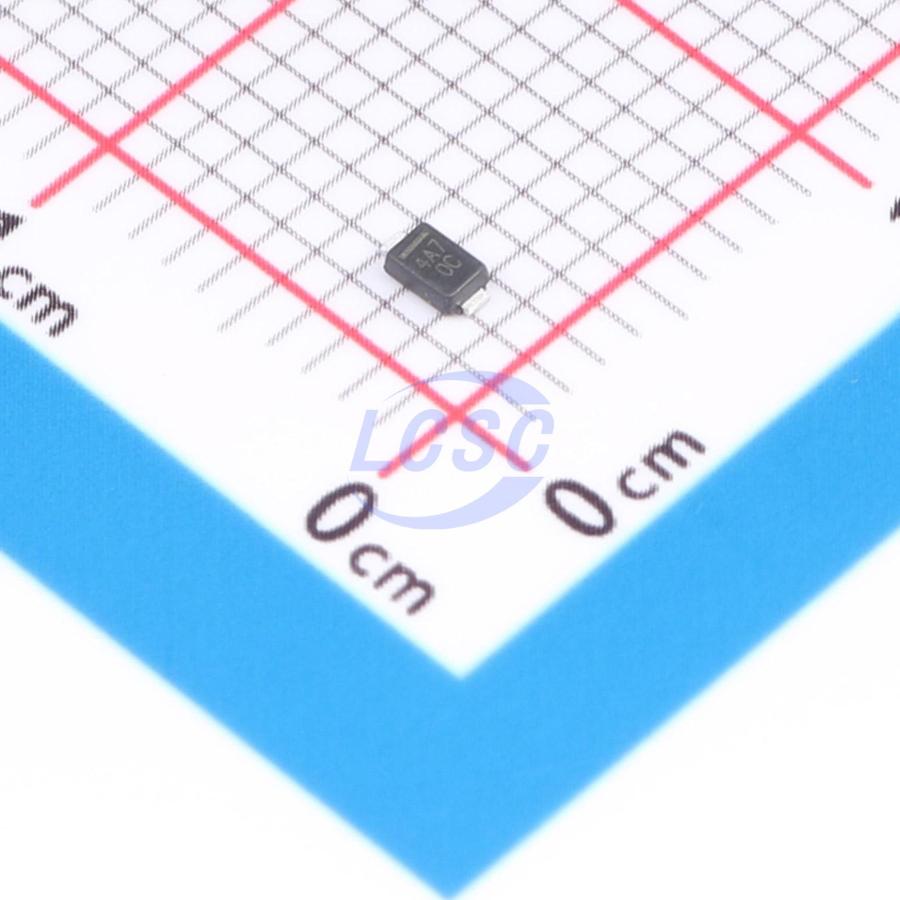

PLZ4V7A-HG3_A/H
Zener Diode Independent 4.56V 960mW MicroSMF(DO-219AC)
MicroSMF(DO-219AC)ROHS3 CompliantActive
DIODE ZENER 4.56V 960mW MicroSMF(DO-219AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- PLZ4V7A-HG3_A/H
- Store part #
- C3765481
- Package / case
- MicroSMF(DO-219AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
119 in stock
#C3765481
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.92 | ₹67.92 |
| 10+ | ₹67.06 | ₹670.60 |
| 30+ | ₹66.43 | ₹1,992.90 |
| 100+ | ₹65.57 | ₹6,557.00 |
1 × ₹67.92
₹67.92
excl. GST
₹80.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
PLZ4V7A-HG3_A/H
₹67.92 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 960mW
- Reverse Leakage Current (Ir)
- 5uA
- Impedance(Zzt)
- 1Ω
- Zener Voltage(Range)
- 4.44V~4.68V
- Zener Voltage(Nom)
- 4.56V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
Key features
- Sillicon planar Zener diodes, ultra small
- Low profile MicroSMF (DO-219AC) package
- Low leakage current
- Excellent stability
- High temperature soldering: 260℃ / 10 s at terminals
- Wave and reflow solderable (reflow as per JPC / JEDEC J-STD 020) (double wave as per IEC 61760-1)
- AEC-Q101 qualified available
- Base P/N-G3 - RoHS-compliant, green, industrial grade
- Base P/N-HG3 - RoHS-compliant, green, AEC-Q101 qualified
- ESD immunity acc. IEC 61000-4-2 acc. to part table
- Surge performance acc. to part table
