VISHAYDatasheet (PDF)

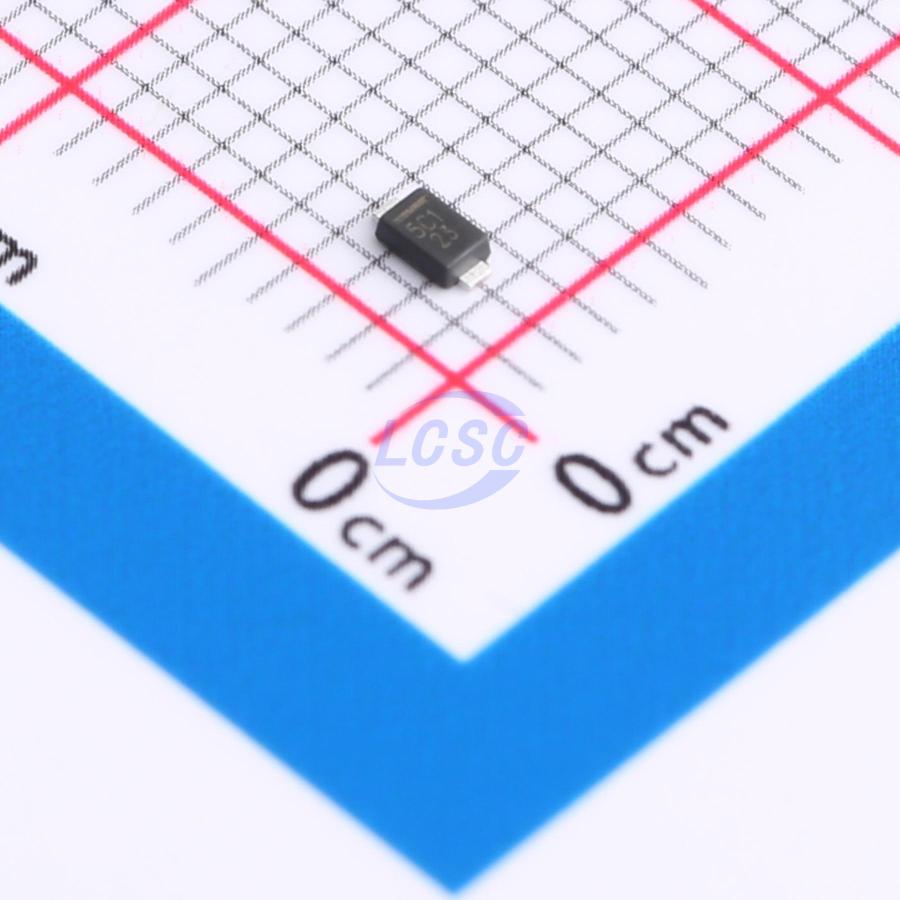

PLZ5V1C-HG3_A/H
Zener Diode Independent 5.23V 960mW MicroSMF(DO-219AC)
MicroSMF(DO-219AC)ROHS3 CompliantActive
DIODE ZENER 5.23V 960mW MicroSMF(DO-219AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- PLZ5V1C-HG3_A/H
- Store part #
- C3009388
- Package / case
- MicroSMF(DO-219AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
400 in stock
#C3009388
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.46 | ₹117.30 |
| 50+ | ₹18.56 | ₹928.00 |
| 150+ | ₹16.47 | ₹2,470.50 |
| 500+ | ₹13.85 | ₹6,925.00 |
| 2,500+ | ₹12.69 | ₹31,725.00 |
| 4,500+ | ₹11.99 | ₹53,955.00 |
5 × ₹23.46
₹117.30
excl. GST
₹138.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
PLZ5V1C-HG3_A/H
₹117.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 960mW
- Reverse Leakage Current (Ir)
- 5uA
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 5.09V~5.37V
- Zener Voltage(Nom)
- 5.23V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Key features
- Sillicon planar Zener diodes, ultra small
- Low profile MicroSMF (DO-219AC) package
- Low leakage current
- Excellent stability
- Wave and reflow solderable (reflow as per JPC / JEDEC J-STD 020) (double wave as per IEC 61760-1)
- AEC-Q101 qualified available
- Base P/N-G3 - RoHS-compliant, green, industrial grade
- Base P/N-HG3 - RoHS-compliant, green, AEC-Q101 qualified
- ESD immunity acc. IEC 61000-4-2 acc. to part table
- Surge performance acc. to part table
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PLZ5V1B-HG3_A/H#C3732182VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹5.54 · 0 in stock | View | |
 | PLZ5V1B-G3/H#C3738056VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹14.84 · 0 in stock | View |
| PLZ5V6A-G3/H#C3765193VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹5.07 · 0 in stock | View | |
| PLZ5V1A-G3/H#C3741321VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹19.86 · 0 in stock | View | |
| PLZ5V6B-G3/H#C3739128VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹5.07 · 0 in stock | View | |
