VISHAYDatasheet (PDF)

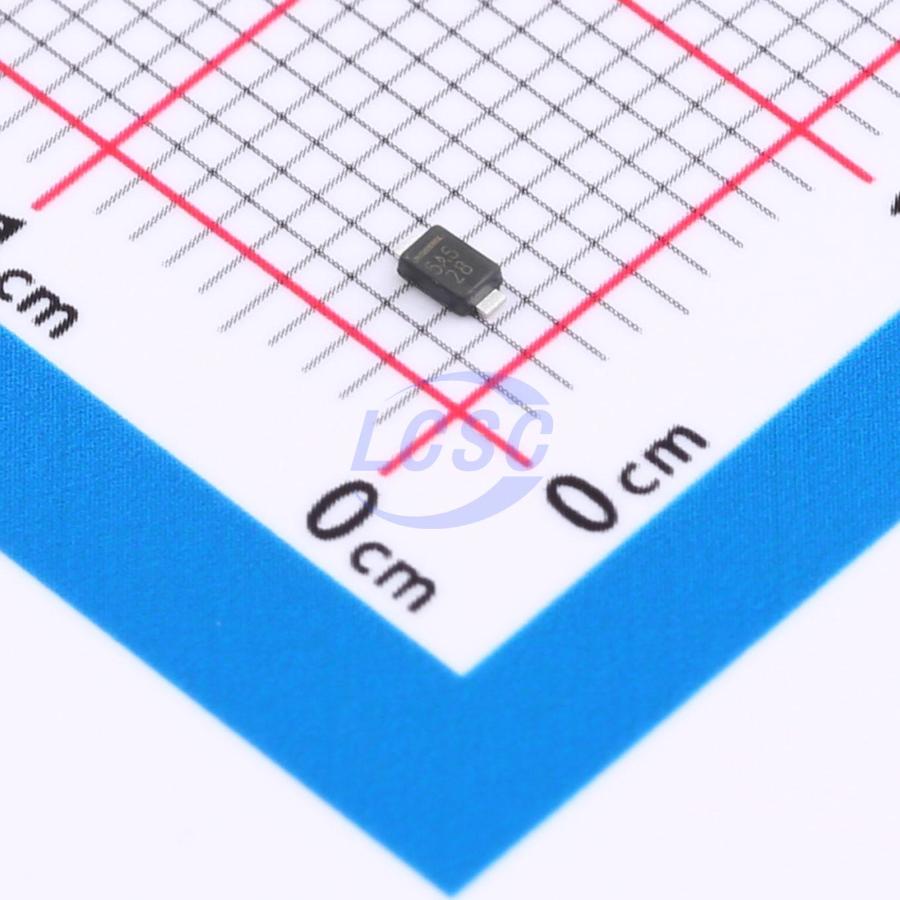

PLZ5V6A-HG3_A/H
Zener Diode Independent 5.28V~5.55V 960mW Surface Mount DO-219AC(MicroSMF)
DO-219AC(MicroSMF)ROHS3 CompliantActive
DIODE ZENER 5.28V~5.55V 960mW DO-219AC(MicroSMF)
- Manufacturer
- VISHAY
- Manufacturer part #
- PLZ5V6A-HG3_A/H
- Store part #
- C5828742
- Package / case
- DO-219AC(MicroSMF)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
335 in stock
#C5828742
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.97 | ₹84.85 |
| 50+ | ₹13.57 | ₹678.50 |
| 150+ | ₹11.88 | ₹1,782.00 |
| 500+ | ₹10.61 | ₹5,305.00 |
| 2,500+ | ₹9.59 | ₹23,975.00 |
| 4,500+ | ₹9.08 | ₹40,860.00 |
5 × ₹16.97
₹84.85
excl. GST
₹100.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
PLZ5V6A-HG3_A/H
₹84.85 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 960mW
- Reverse Leakage Current (Ir)
- 5uA
- Impedance(Zzt)
- 11.9Ω
- Zener Voltage(Range)
- 5.28V~5.55V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Key features
- Sillicon planar Zener diodes, ultra small
- Low profile MicroSMF (DO-219AC) package
- Low leakage current
- Excellent stability
- High temperature soldering: 260℃ / 10 s at terminals
- Wave and reflow solderable (reflow as per JPC / JEDEC J-STD 020) (double wave as per IEC 61760-1)
- AEC-Q101 qualified available
- Base P/N-G3 - RoHS-compliant, green, industrial grade
- Base P/N-HG3 - RoHS-compliant, green, AEC-Q101 qualified
- ESD immunity acc. IEC 61000-4-2 acc. to part table
- Surge performance acc. to part table
