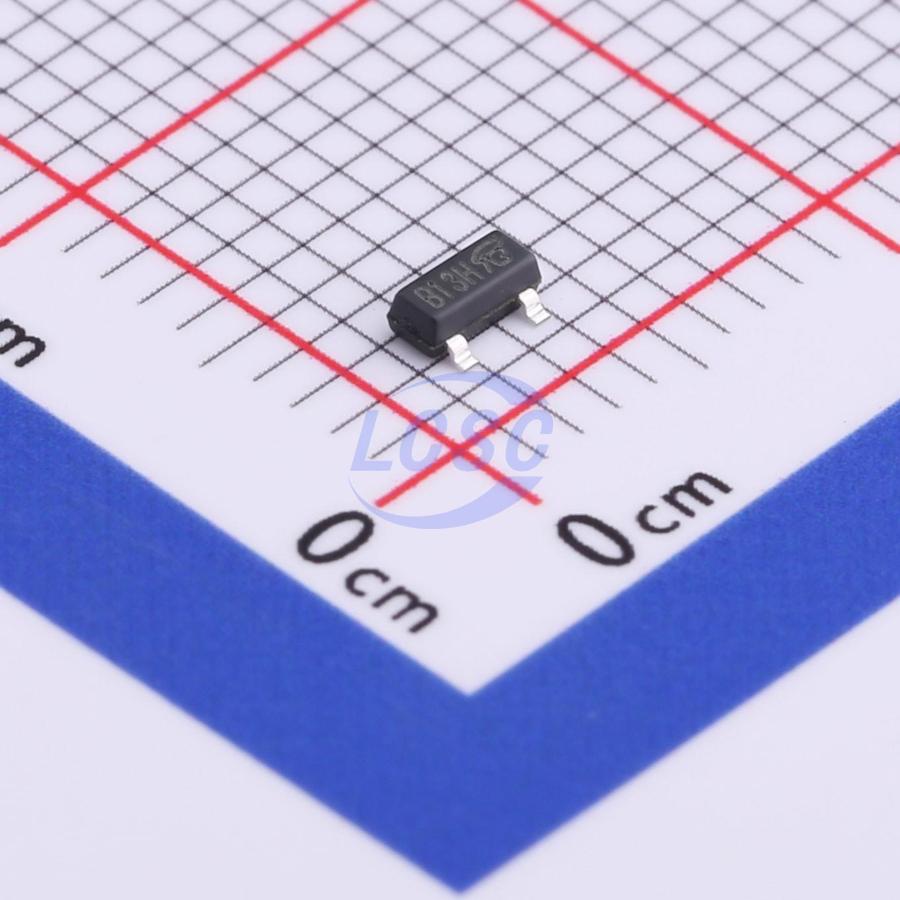

PM606BA-VB
N-Channel 30V 6.5A 1.7W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 30V 6.5A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PM606BA-VB
- Store part #
- C879096
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C879096
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.77 | ₹63.85 |
| 50+ | ₹10.09 | ₹504.50 |
| 150+ | ₹8.76 | ₹1,314.00 |
| 500+ | ₹7.75 | ₹3,875.00 |
| 3,000+ | ₹6.95 | ₹20,850.00 |
| 6,000+ | ₹6.55 | ₹39,300.00 |
5 × ₹12.77
₹63.85
excl. GST
₹75.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PM606BA-VB
₹63.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 45pF
- Current - Continuous Drain(Id)
- 6.5A
- Ciss-Input Capacitance
- 335pF
- Pd - Power Dissipation
- 1.7W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
