TECH PUBLICDatasheet (PDF)

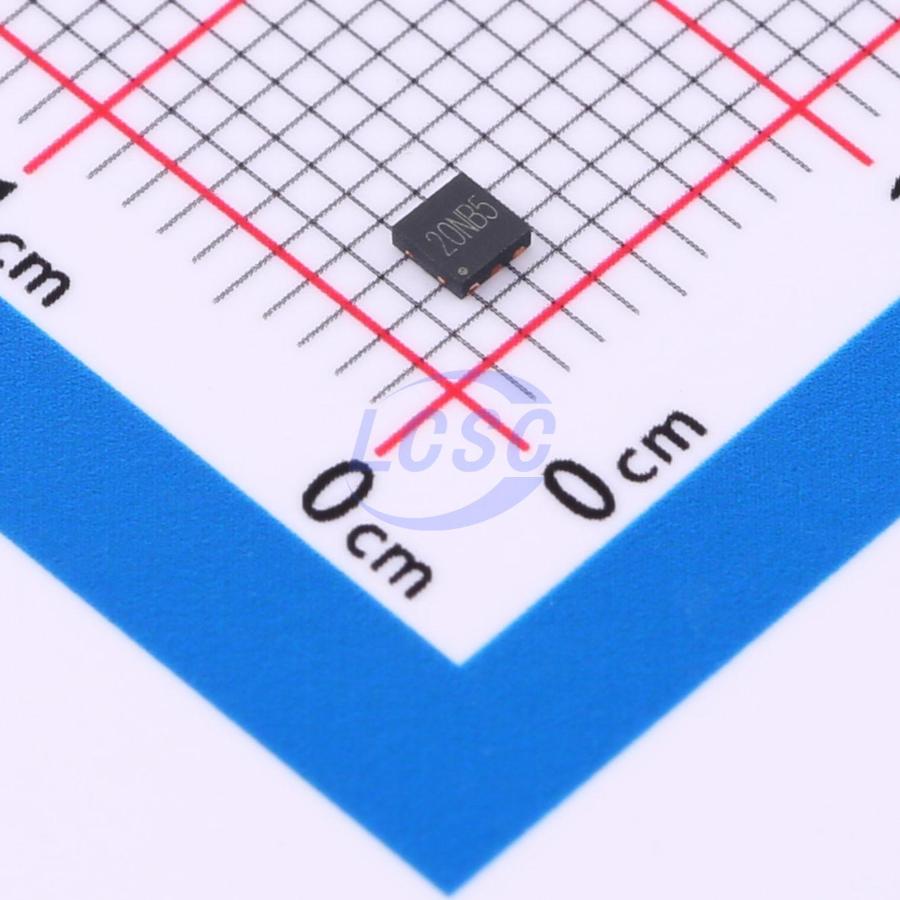

PMDPB30XN-TP
20V 4.5A 1.9W Surface Mount DFN2x2-6L
DFN2X2-6LRoHSActive
MOSFET 20V 4.5A DFN2X2-6L
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PMDPB30XN-TP
- Store part #
- C41408024
- Package / case
- DFN2X2-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C41408024
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.17 | ₹115.85 |
| 50+ | ₹18.35 | ₹917.50 |
| 150+ | ₹16.27 | ₹2,440.50 |
| 500+ | ₹13.71 | ₹6,855.00 |
| 3,000+ | ₹12.56 | ₹37,680.00 |
| 6,000+ | ₹11.87 | ₹71,220.00 |
5 × ₹23.17
₹115.85
excl. GST
₹136.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMDPB30XN-TP
₹115.85 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 115pF
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 340pF
- Pd - Power Dissipation
- 1.9W
- Reverse Transfer Capacitance (Crss)
- 33pF
- RDS(on)
- 52mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 5nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 800mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
Applications
- Power Management in Note book
- LED Display
- DC-DC System
- LCD Panel
Key features
- Super high density cell design for extremely low RDS (ON)
- DFN2X2-6L package design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM20NB5D6#C22358695TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 15,505 | ₹20.61 · 15,505 in stock | View |
