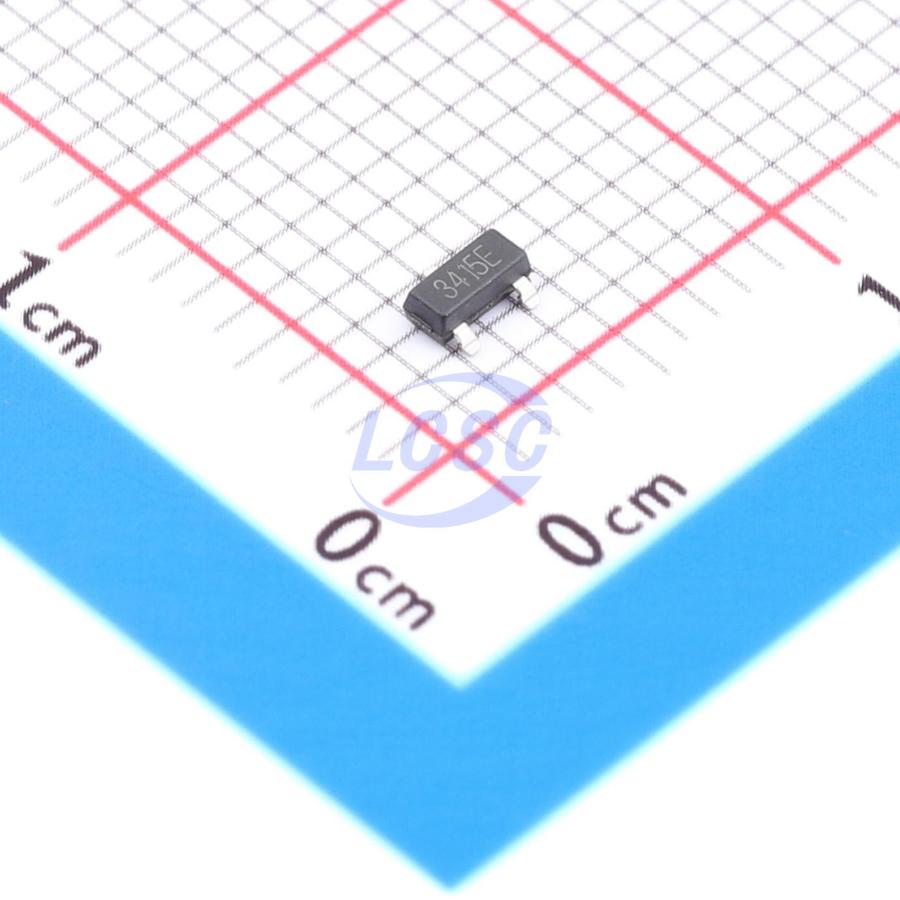

HXY MOSFETDatasheet (PDF)
PMV28XPEAR-HXY
20V 5A 1.4W 30mΩ@4.5V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- PMV28XPEAR-HXY
- Store part #
- C54582412
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C54582412
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.14 | ₹55.70 |
| 50+ | ₹8.97 | ₹448.50 |
| 150+ | ₹7.89 | ₹1,183.50 |
| 500+ | ₹7.08 | ₹3,540.00 |
| 3,000+ | ₹5.76 | ₹17,280.00 |
| 6,000+ | ₹5.42 | ₹32,520.00 |
5 × ₹11.14
₹55.70
excl. GST
₹65.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMV28XPEAR-HXY
₹55.70 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 5A
- Output Capacitance(Coss)
- 165pF
- Pd - Power Dissipation
- 1.4W
- RDS(on)
- 30mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@4.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The PMV28XPEAR utilizes advanced trench technology to deliver excellent on-state resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 1.8V. The device is suitable for use as a load switch or in PWM applications, with ESD protection.
Applications
- PWM applications
- Load switch
Key features
- VDS = -20V, ID = -5A
- RDS(ON) < 40mΩ at VGS = -4.5V
- RDS(ON) < 60mΩ at VGS = -2.5V
- ESD rating: 1500V HBM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO3415A-HXY#C19630788HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 70 | ₹5.13 · 70 in stock | View |
 | DMP2045U-HXY#C22366431HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 100 | ₹7.70 · 100 in stock | View |
 | NTR3A30PZ-HXY#C22366433HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 2,190 | ₹9.51 · 2,190 in stock | View |
 | PMV30XPEA-HXY#C22366434HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 2,650 | ₹11.21 · 2,650 in stock | View |
 | Si2323DDS-T1-GE3-HXY#C22366436HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 10 | ₹7.59 · 10 in stock | View |
