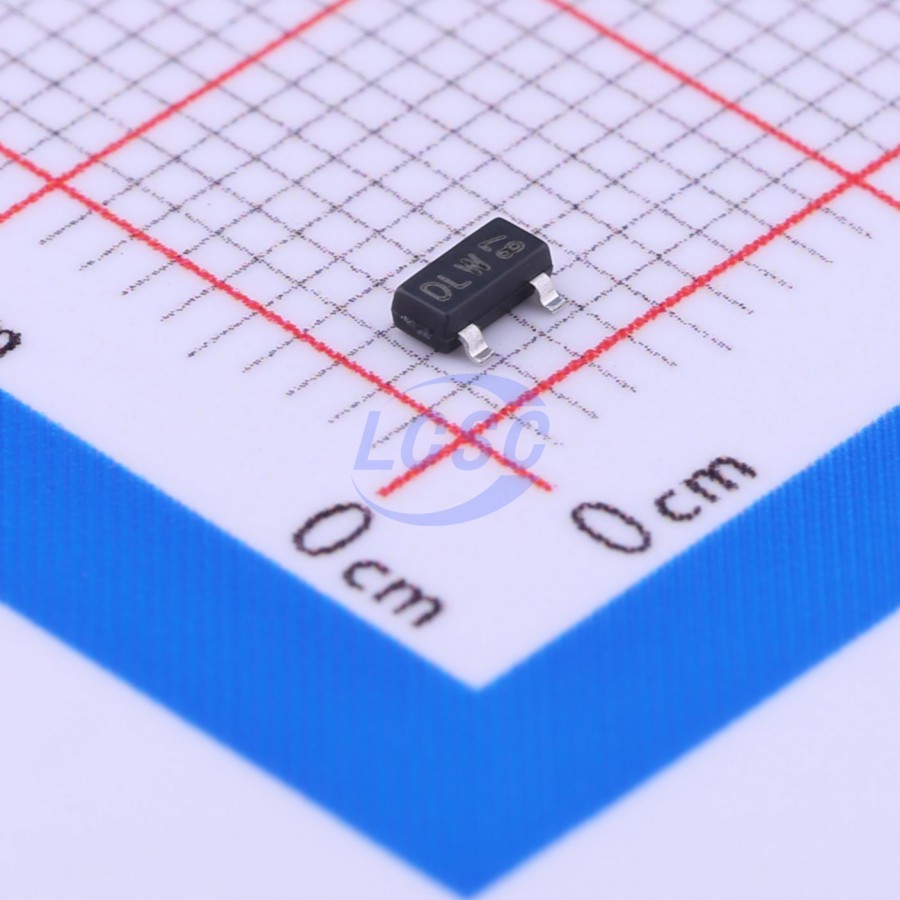

PMV55ENEAR
N-Channel 60V 3.1A 1.19W Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
MOSFET N-CH 60V 3.1A SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- PMV55ENEAR
- Store part #
- C294616
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,423 in stock
#C294616
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.76 | ₹80.76 |
| 10+ | ₹65.30 | ₹653.00 |
| 30+ | ₹57.47 | ₹1,724.10 |
| 100+ | ₹49.85 | ₹4,985.00 |
| 500+ | ₹45.27 | ₹22,635.00 |
| 1,000+ | ₹42.88 | ₹42,880.00 |
1 × ₹80.76
₹80.76
excl. GST
₹95.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMV55ENEAR
₹80.76 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 49pF
- Ciss-Input Capacitance
- 646pF
- Pd - Power Dissipation
- 1.19W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 3.1A
- Reverse Transfer Capacitance (Crss)
- 36pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.01 g
Overview
N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- Relay driver
- High-speed line driver
- Low-side loadswitch
- Switching circuits
Key features
- Logic level compatible
- Very fast switching
- Trench MOSFET technology
- ElectroStatic Discharge (ESD) protection > 2 kV HBM
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP2310T2#C41354909Siliup · SOT-23 | Siliup | SOT-23 | 5,040 | ₹4.95 · 5,040 in stock | View |
 | HSS6014#C508451HUASHUO · SOT-23L | HUASHUO | SOT-23L | 2,590 | ₹13.18 · 2,590 in stock | View |
 | SI2308A#C5122030TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,785 | ₹9.35 · 2,785 in stock | View |
 | CMN6430M#C49208286Cmos · SOT-23-3L | Cmos | SOT-23-3L | 170 | ₹9.79 · 170 in stock | View |
| SSM3K341R,LXHF#C5908551TOSHIBA · SOT-23F | TOSHIBA | SOT-23F | 1,087 | ₹53.30 · 1,087 in stock | View | |
