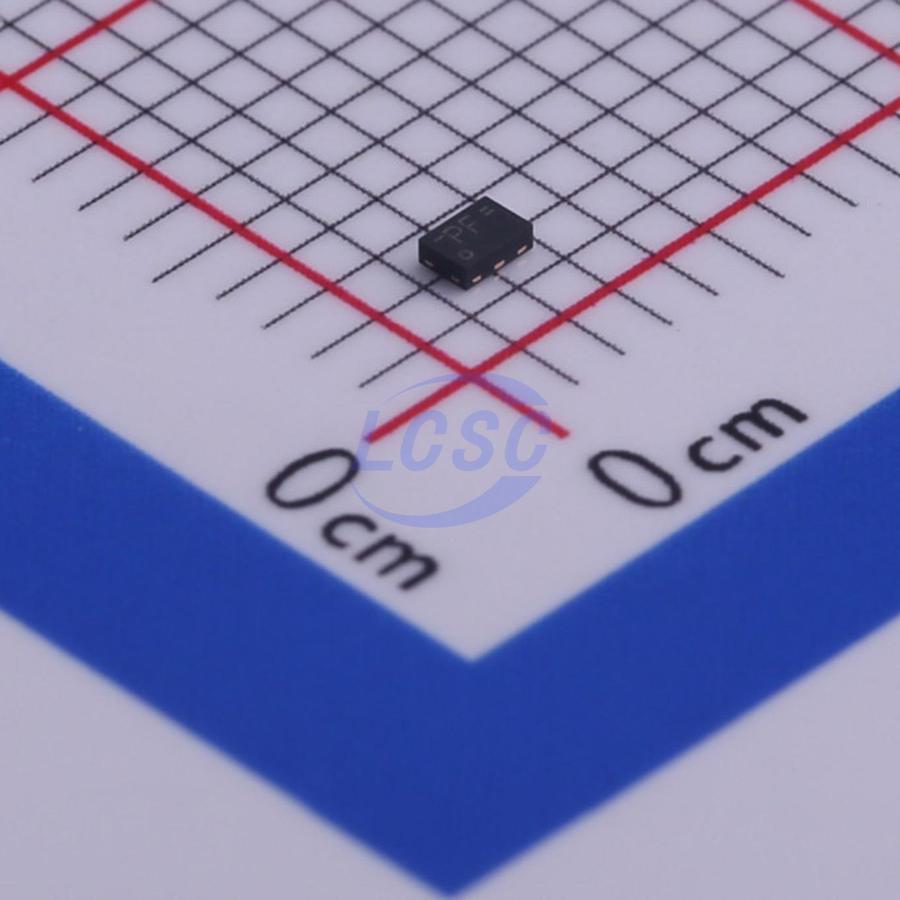

PRTR5V0U2F,115
nan
TVS DIODE 5.5VWM XSON-6(1x1.5)
- Manufacturer
- Nexperia
- Manufacturer part #
- PRTR5V0U2F,115
- Store part #
- C478118
- Package / case
- XSON-6(1x1.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,04,040 in stock
#C478118
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.07 | ₹90.35 |
| 50+ | ₹14.24 | ₹712.00 |
| 150+ | ₹12.33 | ₹1,849.50 |
| 500+ | ₹10.89 | ₹5,445.00 |
| 2,500+ | ₹9.75 | ₹24,375.00 |
| 5,000+ | ₹9.17 | ₹45,850.00 |
5 × ₹18.07
₹90.35
excl. GST
₹106.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PRTR5V0U2F,115
₹90.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
Ultra low capacitance double rail-to-rail ElectroStatic Discharge (ESD) protection devices in leadless ultra small Surface-Mounted Device (SMD) plastic packages. The devices are designed to protect two Hi-Speed data lines or high-frequency signal lines from the damage caused by ESD and other transients. PRTR5V0U2F and PRTR5V0U2K integrate two ultra low capacitance rail-to-rail ESD protection channels and one additional ESD protection diode each to ensure signal line protection even if no supply voltage is available.
Applications
- USB 2.0 interfaces
- Digital Video Interface (DVI) / High Definition Multimedia Interface (HDMI) interfaces
- Mobile and cordless phones
- Personal Digital Assistants (PDA)
- Digital cameras
- Wide Area Network (WAN) / Local Area Network (LAN) systems
- PCs, notebooks, printers and other PC peripherals
Key features
- ESD protection of two Hi-Speed data lines or high-frequency signal lines
- Ultra low input/output to ground capacitance: C(I/O - GND) = 1 pF
- ESD protection up to 8 kV
- IEC 61000-4-2, level 4 (ESD)
- Very low clamping voltage due to an integrated additional ESD protection diode
- Very low reverse current
- AEC-Q101 qualified
- Leadless ultra small SMD plastic packages
