TECH PUBLIC

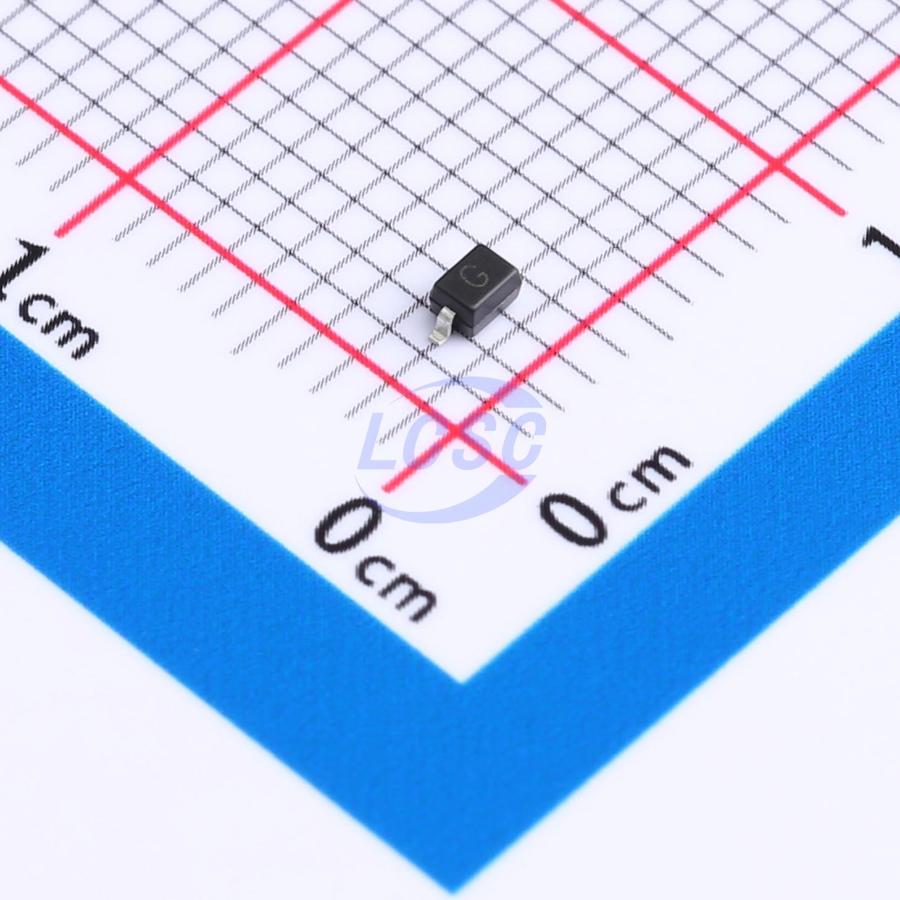

PSD15C

35VC Clamp 10A@8/20us Ipp ESD DIODE SOD-323

SOD-323RoHSActive

ESD DIODE 15VWM 35VC SOD-323

Manufacturer: TECH PUBLIC
Manufacturer part #: PSD15C
Store part #: C5246398
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,315 in stock

#C5246398

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹10.66	₹53.30
50+	₹8.57	₹428.50
150+	₹7.53	₹1,129.50
500+	₹6.75	₹3,375.00
3,000+	₹5.86	₹17,580.00
6,000+	₹5.56	₹33,360.00

Quantity (min 5, multiples of 5)

5 × ₹10.66

₹53.30

excl. GST

₹62.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PSD15C

₹53.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 35V
Peak Pulse Current (Ipp): 10A@8/20us
Peak Pulse Power Dissipation (Ppp): 350W@8/20us
Voltage - Breakdown: 16.5V
Number of Channels: 1
type: ESD
Reverse Leakage Current (Ir): 500nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 15V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

Applications

Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation Peripherals
Pagers Peripherals
Desktop and Servers

Key features

350W peak pulse power (8/20μs)
Protects one data or power line
Ultra low leakage: nA level
Operating voltage: 15V
Ultra low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-5 (Lightning) 10A (8/20μs)
IEC61000-4-4 (EFT) 40A (5/50ns)
RoHS Compliant
