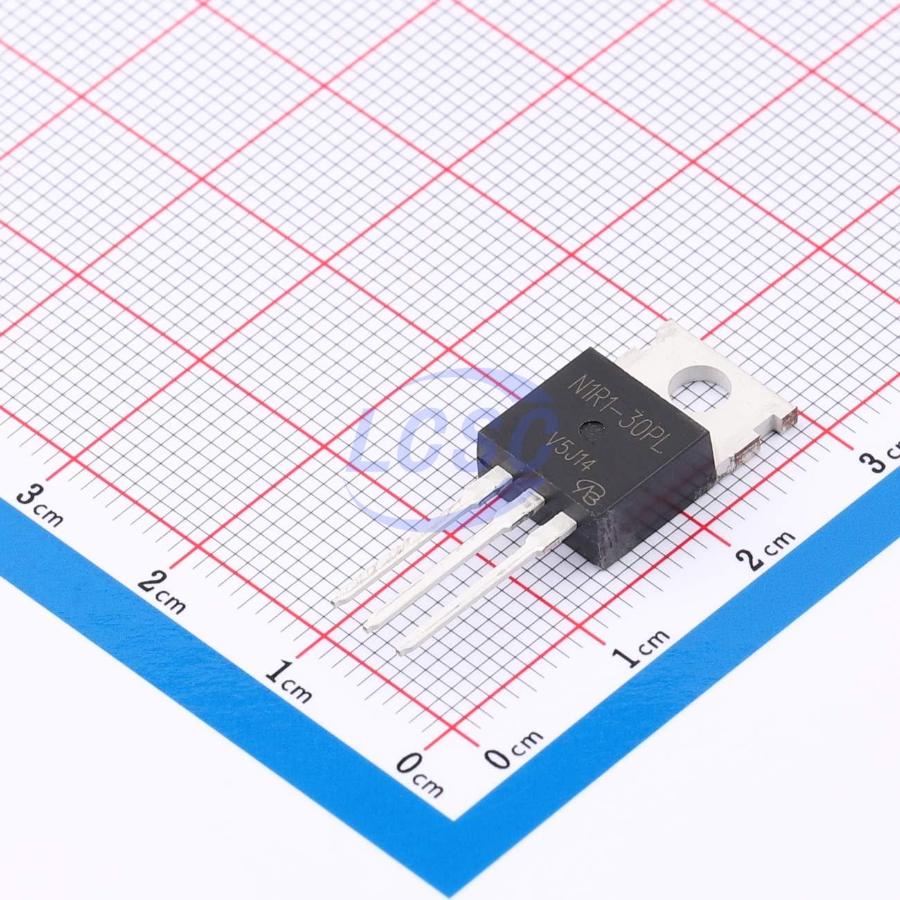

PSMN1R1-30PL,127-VB
250W 30V 140A 2mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs
TO-220ABRoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PSMN1R1-30PL,127-VB
- Store part #
- C52191074
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C52191074
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.16 | ₹142.16 |
| 10+ | ₹117.13 | ₹1,171.30 |
| 50+ | ₹104.72 | ₹5,236.00 |
| 100+ | ₹92.31 | ₹9,231.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 1,000+ | ₹72.28 | ₹72,280.00 |
1 × ₹142.16
₹142.16
excl. GST
₹167.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
PSMN1R1-30PL,127-VB
₹142.16 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.725nF
- Ciss-Input Capacitance
- 8.4nF
- Pd - Power Dissipation
- 250W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 140A
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.3 g
Overview
Applications
- OR operation
- Server
- DC/DC
Key features
- DT trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant with EU directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRL3803VPBF-VB#C5179554VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 7 | ₹90.63 · 7 in stock | View |
 | IRL3803PBF-VB#C5137396VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 16 | ₹165.67 · 16 in stock | View |
 | AOT424L-VB#C5137452VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 15 | ₹131.49 · 15 in stock | View |
 | IRF1324PBF-VB#C22357145VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹125.95 · 10 in stock | View |
 | VBZM150N03#C700703VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 52 | ₹128.25 · 52 in stock | View |
