MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

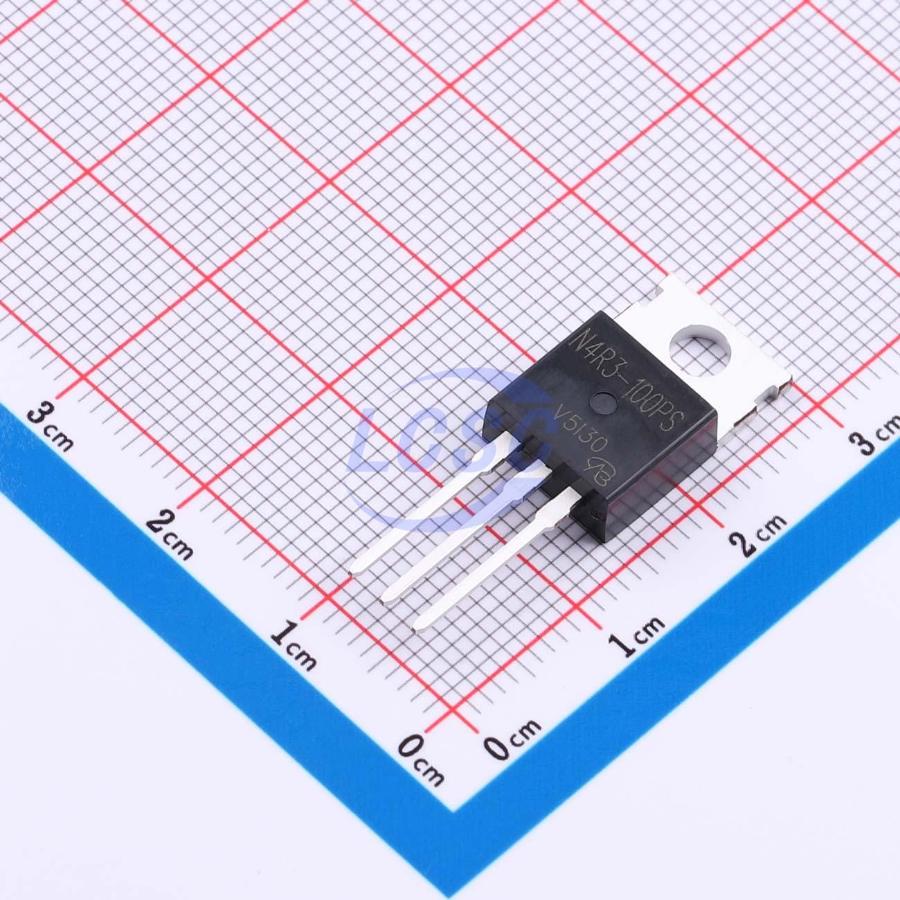

PSMN4R3-100PS,127-VB
370W 100V 120A 5mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs
TO-220ABRoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PSMN4R3-100PS,127-VB
- Store part #
- C52191070
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C52191070
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹230.76 | ₹230.76 |
| 10+ | ₹197.02 | ₹1,970.20 |
| 50+ | ₹175.91 | ₹8,795.50 |
| 100+ | ₹154.35 | ₹15,435.00 |
| 500+ | ₹144.55 | ₹72,275.00 |
| 1,000+ | ₹140.20 | ₹1,40,200.00 |
1 × ₹230.76
₹230.76
excl. GST
₹272.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
PSMN4R3-100PS,127-VB
₹230.76 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.025nF
- Ciss-Input Capacitance
- 10nF
- Pd - Power Dissipation
- 370W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 165pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 76nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.718 g
Overview
Key features
- Avalanche Power MOSFET
- Maximum junction temperature 175 °C
- 100% Rg and UIS tested
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PSMN8R5-100PSQ-VB#C52148724VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹230.76 · 10 in stock | View | |
| PSMN6R3-120PS-VB#C52148725VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹230.76 · 10 in stock | View | |
| PSMN8R5-100PSFQ-VB#C52148726VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹230.76 · 10 in stock | View | |
 | BUK755R4-100E,127-VB#C52191071VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹230.76 · 5 in stock | View |
 | IRFB4310ZPBF-VB#C7429032VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 52 | ₹220.97 · 52 in stock | View |
