VBsemi ElecDatasheet (PDF)

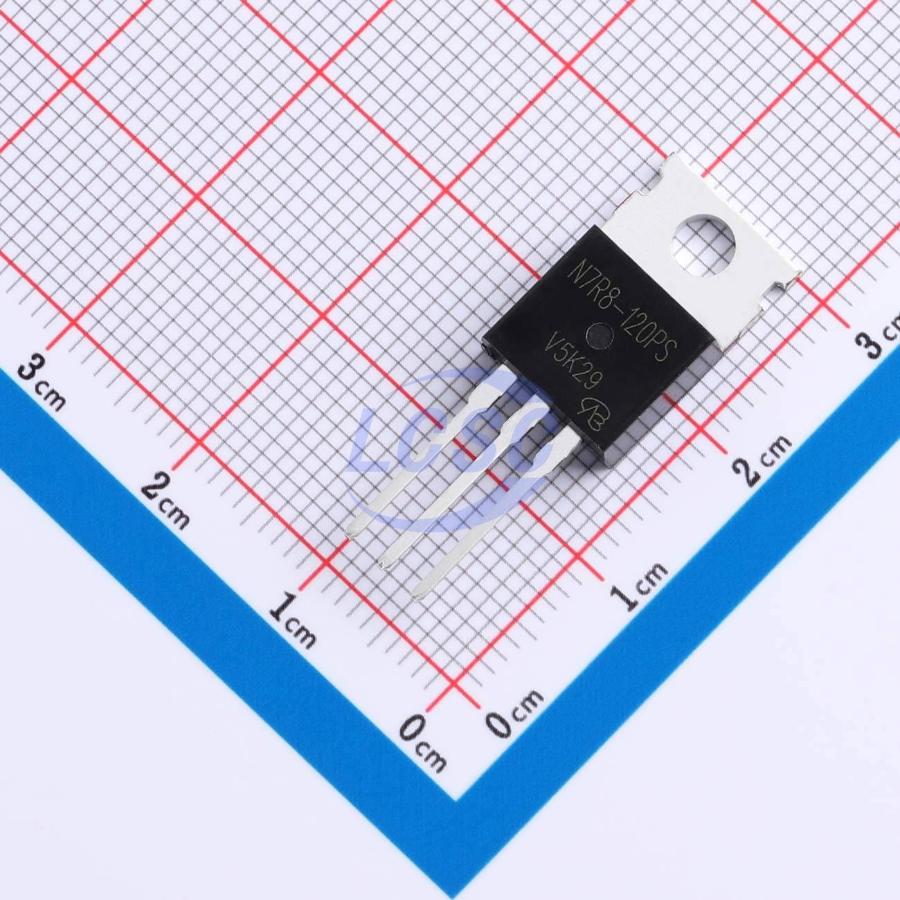

PSMN7R8-120PS127-VB
250W 100V 100A 9mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs
TO-220ABRoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PSMN7R8-120PS127-VB
- Store part #
- C52191060
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C52191060
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹159.36 | ₹159.36 |
| 10+ | ₹131.70 | ₹1,317.00 |
| 50+ | ₹117.77 | ₹5,888.50 |
| 100+ | ₹92.53 | ₹9,253.00 |
| 500+ | ₹84.25 | ₹42,125.00 |
| 1,000+ | ₹80.12 | ₹80,120.00 |
1 × ₹159.36
₹159.36
excl. GST
₹188.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
PSMN7R8-120PS127-VB
₹159.36 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 665pF
- Ciss-Input Capacitance
- 4.7nF
- Pd - Power Dissipation
- 250W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 265pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 105nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.18 g
Overview
Key features
- Trench power MOSFET
- Maximum junction temperature 175 °C
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPP50N10S3L-16-VB#C22389923VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 9 | ₹136.96 · 9 in stock | View |
 | PSMN7R0-100PS,127-VB#C52191061VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹157.62 · 5 in stock | View |
 | BUK9515-100A127-VB#C52191062VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹157.62 · 5 in stock | View |
| BUK9615-100A,118-VB#C52191063VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹157.62 · 5 in stock | View | |
| BUK7510-100B,127-VB#C52191064VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹159.36 · 5 in stock | View | |
