HXY MOSFETDatasheet (PDF)

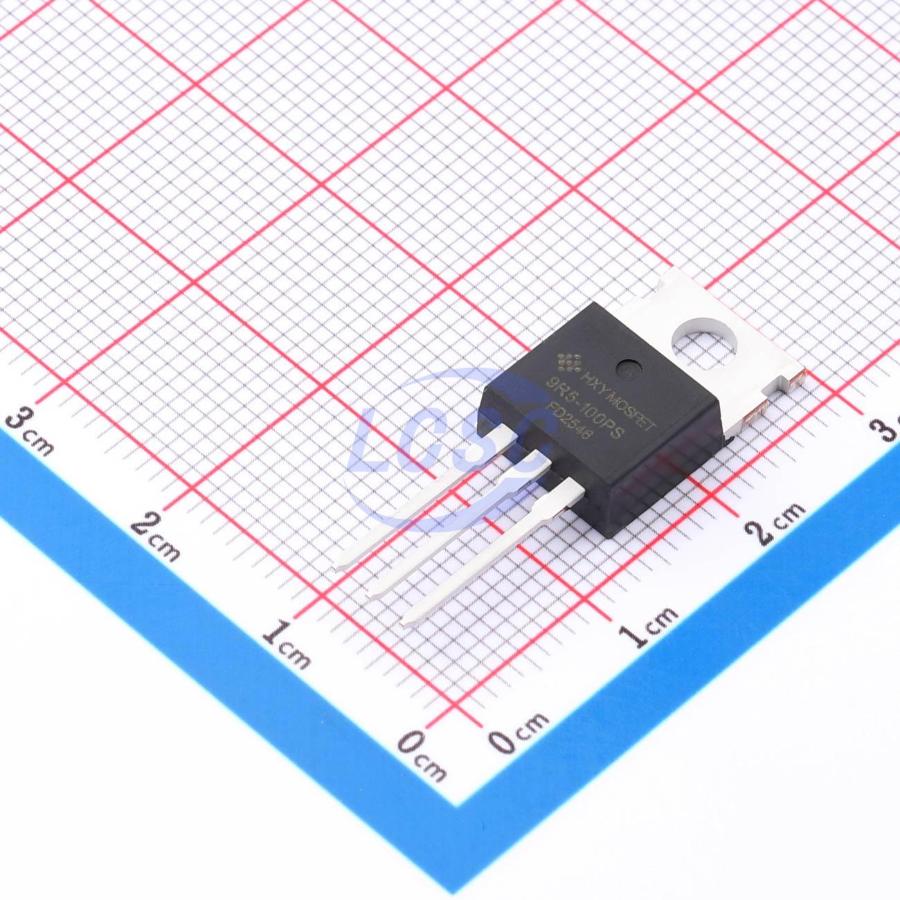

PSMN9R5-100PS-HXY
100W 100V 70A 8.5mΩ@10V 1 N-channel N-Channel TO-220C Single FETs, MOSFETs
TO-220CRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- PSMN9R5-100PS-HXY
- Store part #
- C53262951
- Package / case
- TO-220C
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C53262951
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹499.21 | ₹499.21 |
| 10+ | ₹441.76 | ₹4,417.60 |
| 50+ | ₹407.68 | ₹20,384.00 |
| 100+ | ₹373.17 | ₹37,317.00 |
| 500+ | ₹357.32 | ₹1,78,660.00 |
| 1,000+ | ₹350.03 | ₹3,50,030.00 |
1 × ₹499.21
₹499.21
excl. GST
₹589.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
PSMN9R5-100PS-HXY
₹499.21 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 451pF
- Ciss-Input Capacitance
- 1.368nF
- Pd - Power Dissipation
- 100W
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 70A
- Reverse Transfer Capacitance (Crss)
- 12.9pF
- RDS(on)
- 8.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.3nC@50V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.018 g
