TECH PUBLICDatasheet (PDF)

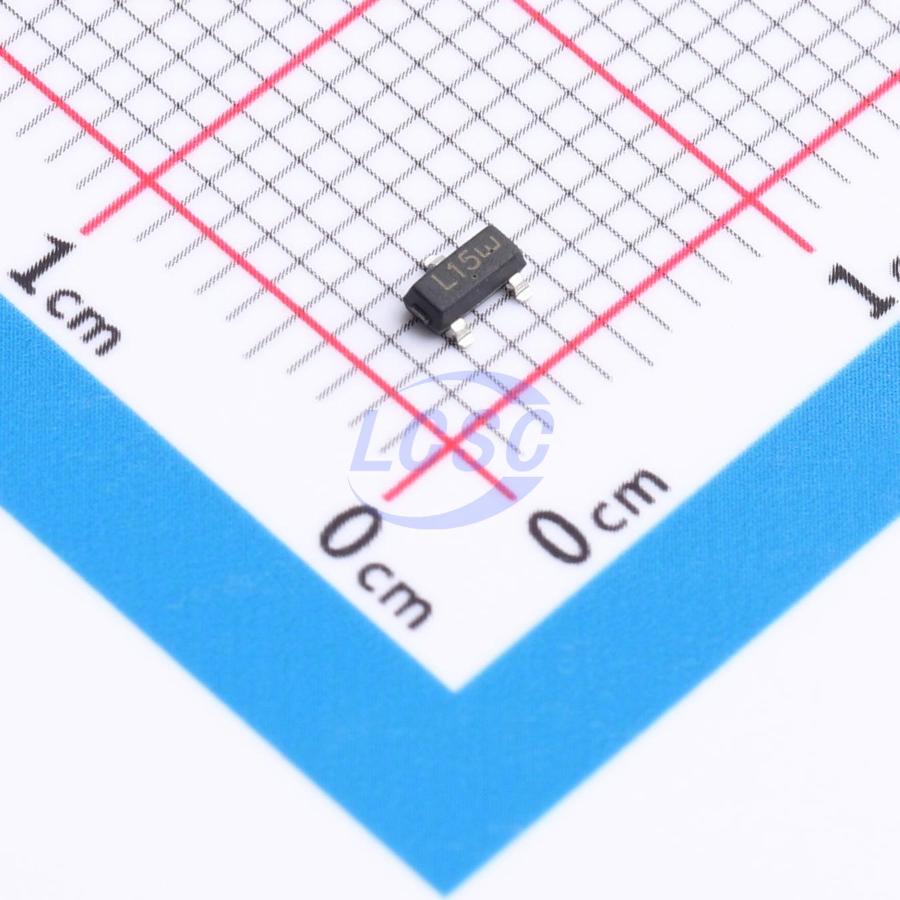

PSOT15LC
35V 8A@8/20us 300W@8/20us 16V Bidirectional 15V SOT-23 TVS Diodes
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PSOT15LC
- Store part #
- C52205415
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,940 in stock
#C52205415
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.62 | ₹53.10 |
| 50+ | ₹8.35 | ₹417.50 |
| 150+ | ₹7.22 | ₹1,083.00 |
| 500+ | ₹6.36 | ₹3,180.00 |
| 3,000+ | ₹5.69 | ₹17,070.00 |
| 6,000+ | ₹5.34 | ₹32,040.00 |
5 × ₹10.62
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PSOT15LC
₹53.10 for 5 + GST
Specifications
- Clamping Voltage
- 35V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 16V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- High-speed data lines
- Mobile phones and accessories
- USB port protection
- Portable instruments
- LAN/WAN equipment
- Peripheral devices
Key features
- 300W peak pulse power (8/20μs)
- Ultra-low leakage: nanoampere level
- Working voltage: 15V
- Low clamping voltage
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning Surge) 8A (8/20μs)
- RoHS compliant
