PowTech(CR-PowTech(Shanghai))

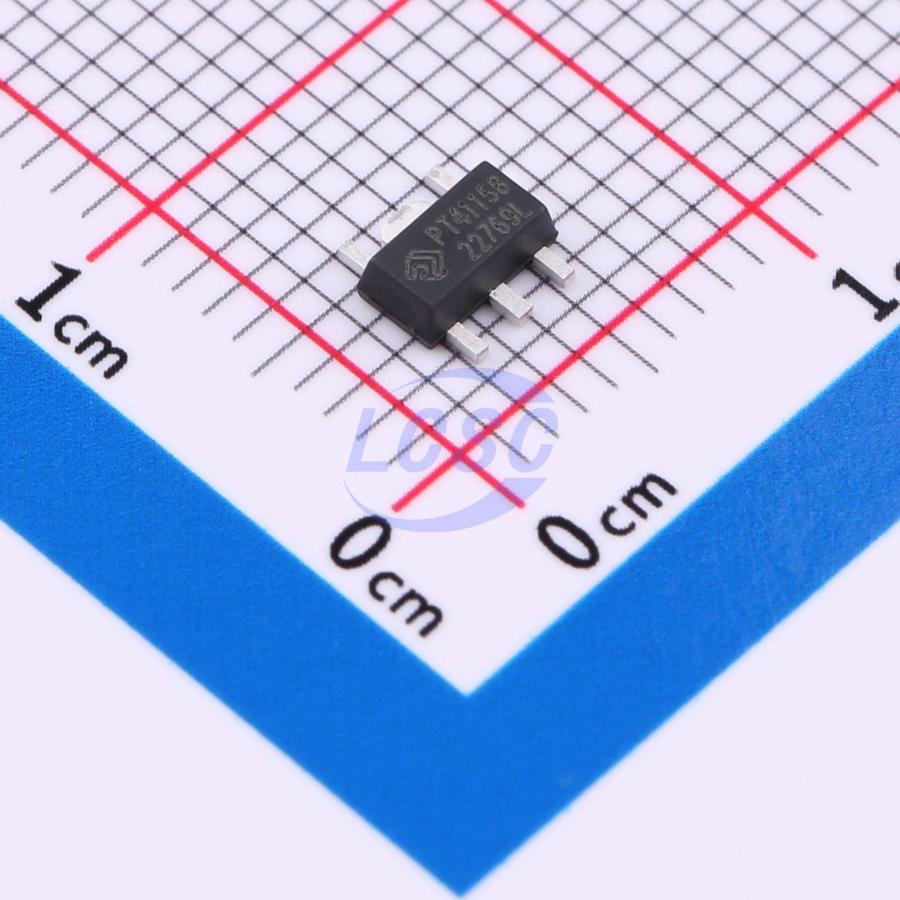

PT4115BE89E

LED Driver IC 1 Output DC-DC Buck PWM Analog Dimming 1.2A SOT-89-5

SOT-89-5RoHSActive

Step-down LED constant current driver with high dimming ratio

Manufacturer: PowTech(CR-PowTech(Shanghai))
Manufacturer part #: PT4115BE89E
Store part #: C3039502
Package / case: SOT-89-5
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,695 in stock

#C3039502

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹20.40	₹102.00
50+	₹16.02	₹801.00
150+	₹14.14	₹2,121.00
500+	₹11.80	₹5,900.00
2,500+	₹10.76	₹26,900.00
4,000+	₹10.13	₹40,520.00

Quantity (min 5, multiples of 5)

5 × ₹20.40

₹102.00

excl. GST

₹120.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

PT4115BE89E

₹102.00 for 5 + GST

Specifications

Features: LED open-circuit protection;Over-Temperature Protection (OTP)
Frequency - Switching: 1MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Topology: Buck
Number of Channels: 1
Type: DC-DC
Output Current: 1.2A
Voltage - Input(DC): 6V~40V
Constant Current Accuracy: 3%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.158 g

Overview

PT4115B is a continuous inductor current conduction mode buck constant-current source for driving one or more series-connected LEDs. The input voltage ranges from 6V to 40V, with adjustable output current up to 1.2A. Depending on the input voltage and external components, it can drive LEDs with power up to tens of watts. The integrated power switch uses high-side current sensing to set the average LED current. The DIM pin accepts both analog dimming and PWM dimming over a wide range. When the DIM voltage falls below 0.3V, the power switch turns off and the device enters a standby state with ultralow quiescent current. Available in SOT89-5 package.

Applications

Low-voltage LED spotlights replacing halogen lamps
Automotive LED lighting
LED backup lights
LED signal lights

Key features

Minimal external components
Wide input voltage range: 6V to 40V
Up to 97% efficiency
Maximum output current of 1.2A
Multiplexed DIM pin for LED on/off switching, analog dimming, and PWM dimming, up to 1MHz switching frequency
3% output current accuracy
Built-in LED open-circuit protection
Built-in RCS open-circuit protection
High-side current sensing
Hysteretic control, no compensation required
Adjustable output constant current control
Thermal protection
