PowTech(CR-PowTech(Shanghai))

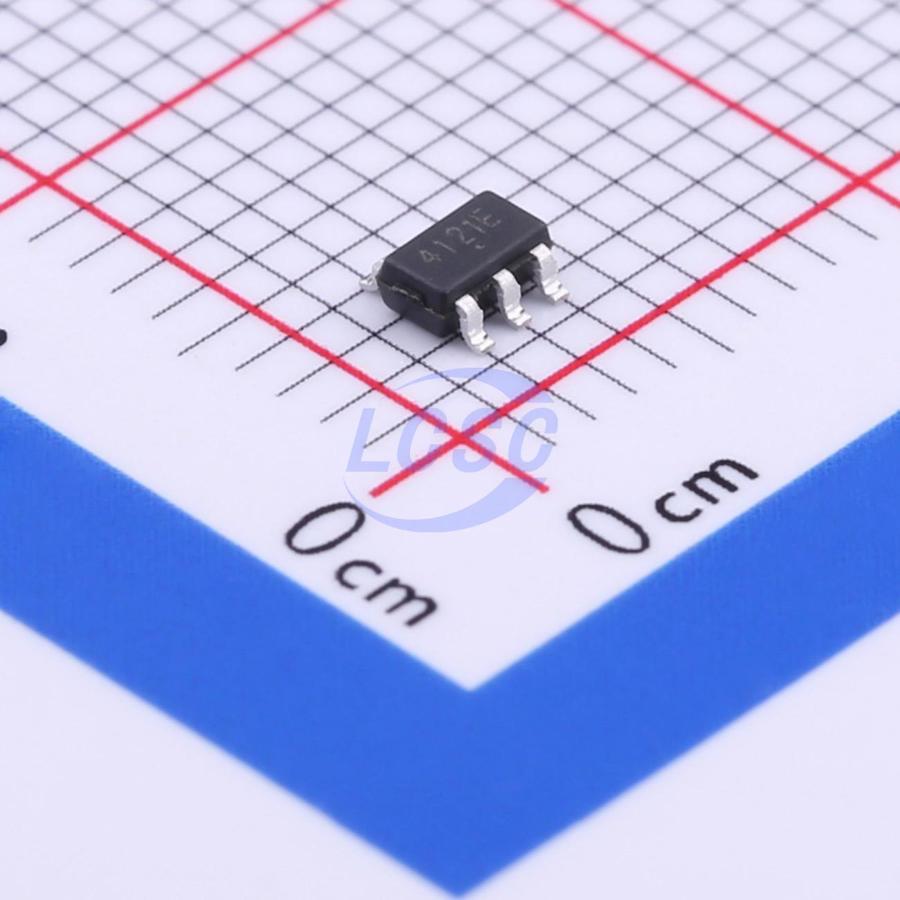

PT4121EE23F

1kHz~1MHz Buck 1 6V~60V SOT-23-6 LED Drivers ICs

SOT-23-6RoHSActive

60V Step-down High Brightness LED Controller

Manufacturer: PowTech(CR-PowTech(Shanghai))
Manufacturer part #: PT4121EE23F
Store part #: C385317
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,195 in stock

#C385317

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹24.52	₹122.60
50+	₹19.02	₹951.00
150+	₹16.68	₹2,502.00
500+	₹13.75	₹6,875.00
3,000+	₹12.33	₹36,990.00
6,000+	₹11.55	₹69,300.00

Quantity (min 5, multiples of 5)

5 × ₹24.52

₹122.60

excl. GST

₹144.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

PT4121EE23F

₹122.60 for 5 + GST

Specifications

Features: LED open-circuit protection;Short Circuit Protection;Over-Temperature Protection (OTP)
Frequency - Switching: 1kHz~1MHz
Switch Tube (Built-In/External): External
Operating temperature: -40℃~+125℃
Topology: Buck
Number of Channels: 1
Voltage - Input(DC): 6V~60V
Constant Current Accuracy: 3%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.047 g

Overview

The PT4121E is a high efficiency step-down controller. It is designed to operate in continuous conduction mode and drive single or multiple series connected LED efficiently from a voltage source higher than the total LED chain voltage. It operates with a wide input voltage from 6V to 60V and provides an externally adjustable output current. The PT4121E includes a high-side output current sense circuit, which uses an external resistor to set the nominal average output current, and a dedicated DIM input accepts either a DC voltage or PWM dimming. The PT4121E is available in SOT23-6 or SOP-8 packages.
