PowTech(CR-PowTech(Shanghai))

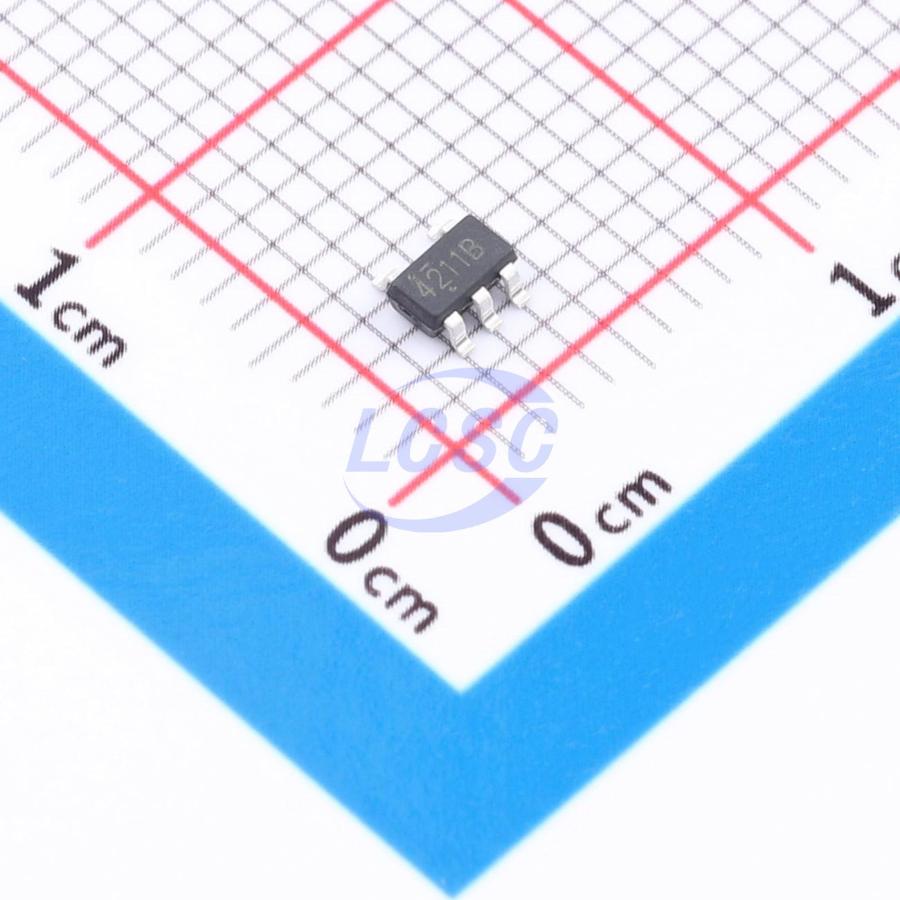

PT4211BE23E

LED Driver IC 1 Output Buck PWM Analog Dimming 500mA SOT-23-5

SOT-23-5RoHSActive

High-brightness LED constant-current driver

Manufacturer: PowTech(CR-PowTech(Shanghai))
Manufacturer part #: PT4211BE23E
Store part #: C3039505
Package / case: SOT-23-5
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,970 in stock

#C3039505

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.54	₹52.70
50+	₹8.36	₹418.00
150+	₹7.26	₹1,089.00
500+	₹6.46	₹3,230.00
3,000+	₹5.79	₹17,370.00
6,000+	₹5.46	₹32,760.00

Quantity (min 5, multiples of 5)

5 × ₹10.54

₹52.70

excl. GST

₹62.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

PT4211BE23E

₹52.70 for 5 + GST

Specifications

Features: LED open-circuit protection;Over-Temperature Protection (OTP)
Frequency - Switching: 1MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+150℃
Number of Channels: 1
Topology: Buck
Type: DC-DC
Output Current: 500mA
Constant Current Accuracy: 3%
Voltage - Input(DC): 5V~40V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.044 g

Overview

PT4211B is a continuous inductor current conduction mode buck constant current source, specifically designed to drive 1 to 3 series-connected LEDs. PT4211B accepts an input voltage range from 5V to 40V, with an adjustable output current up to 500mA. PT4211B integrates a power switch and employs high-side current sensing, with LED average current set via a single external resistor. The DIM pin accepts both analog dimming and PWM dimming over a wide range. When the DIM voltage falls below 0.25V, the power switch turns off and PT4211B enters a standby state with ultra-low operating current. PT4211B is available in a SOT23-5 package.
