VISHAYDatasheet (PDF)

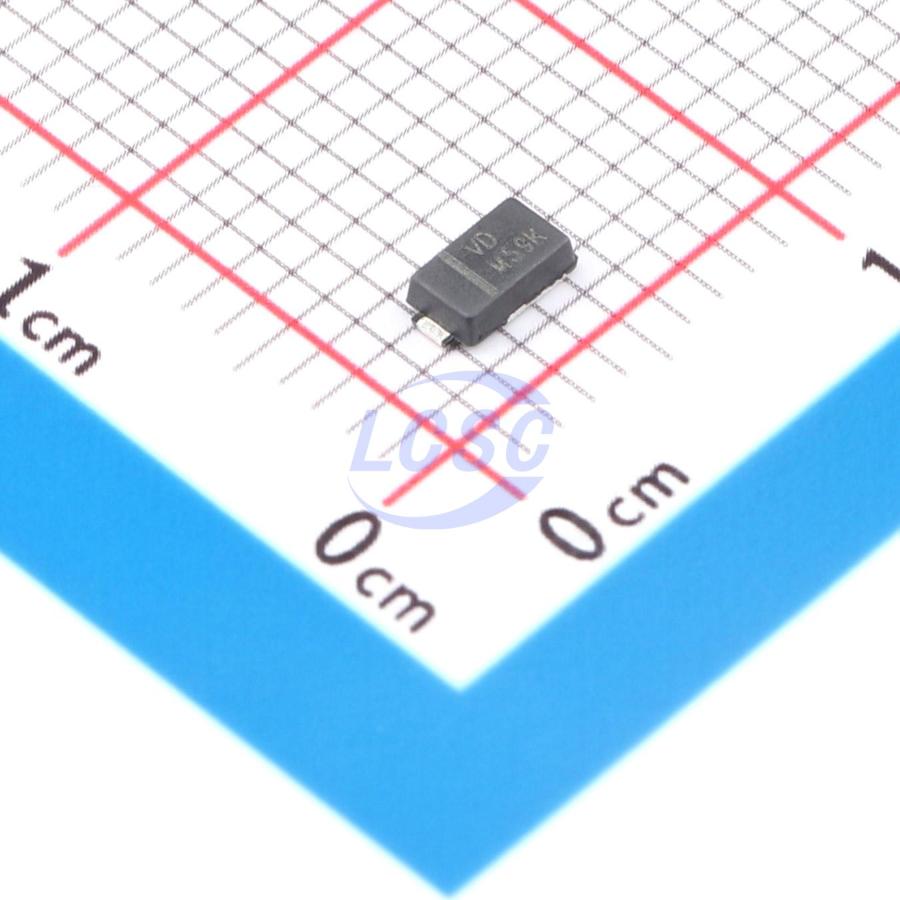

PTV4.7B-M3/84A
1 Independent 4.7V~5.2V 4.7V DO-220AA(SMP) Single Zener Diodes RoHS
DO-220AA(SMP)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- PTV4.7B-M3/84A
- Store part #
- C3740146
- Package / case
- DO-220AA(SMP)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
470 in stock
#C3740146
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.37 | ₹92.37 |
| 10+ | ₹78.06 | ₹780.60 |
| 30+ | ₹70.90 | ₹2,127.00 |
| 100+ | ₹63.76 | ₹6,376.00 |
| 500+ | ₹59.42 | ₹29,710.00 |
| 1,000+ | ₹57.25 | ₹57,250.00 |
1 × ₹92.37
₹92.37
excl. GST
₹109.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTV4.7B-M3/84A
₹92.37 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 600mW
- Reverse Leakage Current (Ir)
- 20uA@1V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 4.7V~5.2V
- Zener Voltage(Nom)
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.057 g
Overview
Applications
- Suitable for general-purpose voltage regulation, industrial, and protection applications.
Key features
- Ultra-thin design, typical height 1.0mm
- Compatible with automated SMT placement
- Low Zener impedance
- MSL Level 1 per J-STD-020, LF max peak temperature 260°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PTV4.7B-M3/85A#C3739561VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | On request | ₹12.45 · 0 in stock | View | |
| PTV4.3B-M3/85A#C6738652VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | On request | ₹25.88 · 0 in stock | View | |
| PTV4.3B-M3/84A#C7328507VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | On request | ₹22.11 · 0 in stock | View | |
