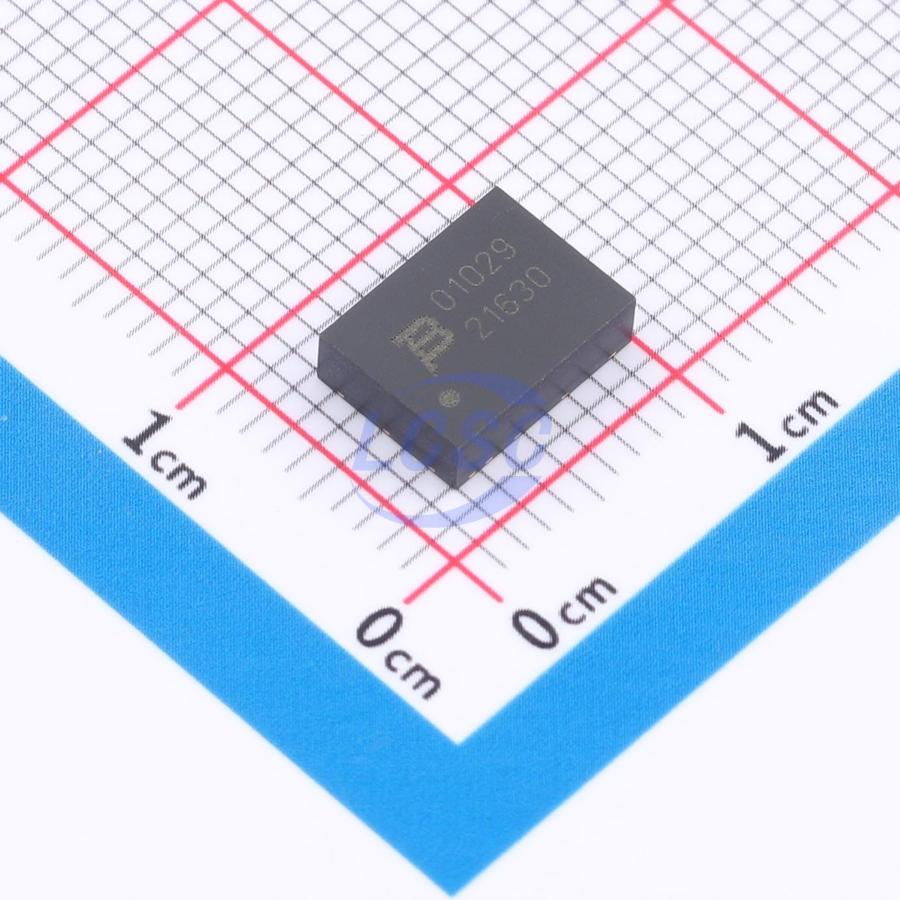

BOURNS

PTVS1-029C-H

34VC Clamp 1kA@8/20us Ipp TVS DIODE DFN-2(6x8)

DFN-2(6x8)ROHS3 CompliantActive

Manufacturer: BOURNS
Manufacturer part #: PTVS1-029C-H
Store part #: C6364955
Package / case: DFN-2(6x8)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

38 in stock

#C6364955

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹950.03	₹950.03
10+	₹842.78	₹8,427.80
30+	₹779.15	₹23,374.50
100+	₹714.67	₹71,467.00
500+	₹685.01	₹3,42,505.00
1,000+	₹671.69	₹6,71,690.00

Quantity (min 1)

1 × ₹950.03

₹950.03

excl. GST

₹1,121.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

PTVS1-029C-H

₹950.03 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 34V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 1kA@8/20us
Number of Channels: 1
Voltage - Breakdown: 35V
type: TVS
Reverse Leakage Current (Ir): 10uA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 29V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.565 g

Overview

PTVS1-xxxC-H family of high current bidirectional TVS diodes is designed to protect DC or PoE powered systems such as small cell or surveillance cameras that can be exposed to high surge events such as induced lightning or inductive power switching. These devices offer bidirectional port protection and are available with standoff voltage ratings of 22 to 86 V.

Applications

Protection against lightning strikes, inductive and transient surges up to rated limits
Exposed PoE ports
Small cell, Remote Radio Units (RRUs) and Baseband Units (BBUs)
High power DC bus protection
DC power line protection
