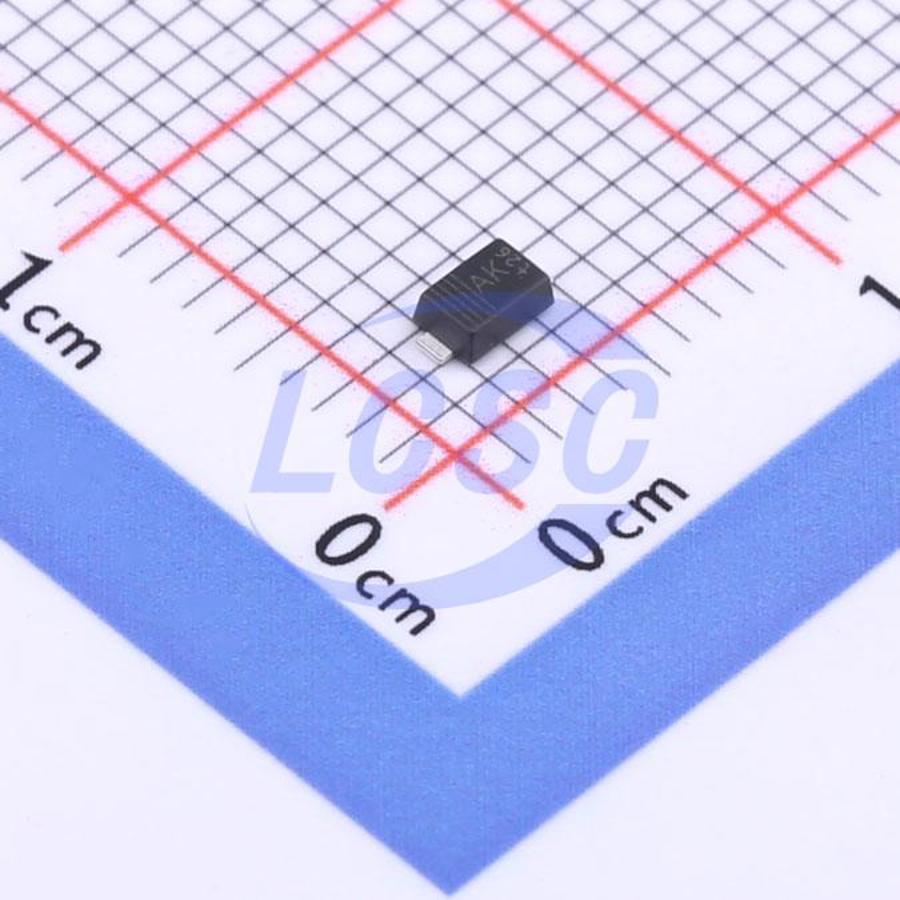

Nexperia

PTVS18VS1UR,115

29.2VC Clamp 13.7A Ipp TVS DIODE SOD-123W

SOD-123WROHS3 CompliantActive

TVS DIODE 18VWM 29.2VC SOD-123W

Manufacturer: Nexperia
Manufacturer part #: PTVS18VS1UR,115
Store part #: C553384
Package / case: SOD-123W
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,350 in stock

#C553384

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹30.28	₹151.40
50+	₹23.66	₹1,183.00
150+	₹20.81	₹3,121.50
500+	₹17.27	₹8,635.00
3,000+	₹15.69	₹47,070.00
6,000+	₹14.74	₹88,440.00

Quantity (min 5, multiples of 5)

5 × ₹30.28

₹151.40

excl. GST

₹178.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PTVS18VS1UR,115

₹151.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 29.2V
Peak Pulse Current (Ipp): 13.7A
Peak Pulse Power Dissipation (Ppp): 400W
Number of Channels: 1
Voltage - Breakdown: 20V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 1nA
Reverse Stand-Off Voltage (Vrwm): 18V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.

Applications

Power supply protection
Automotive application
Industrial application
Power management

Key features

Rated peak pulse power: Small plastic package suitable for Pppm = 400 W (350 W for 3V3) surface-mounted design
Reverse standoff voltage range: VRWM = 3.3 V to 64 V
Reverse current: IRM = 0.001 μA
AEC-Q101 qualified
Very low package height: 1 mm
