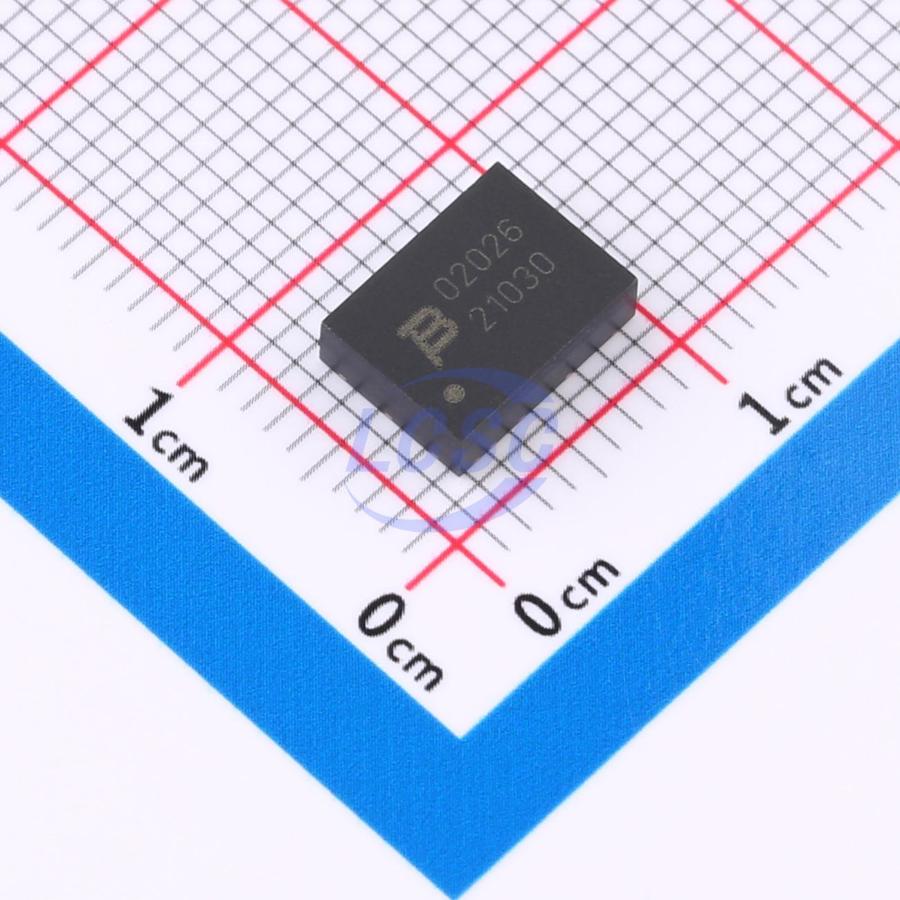

BOURNS

PTVS2-026C-H

30VC Clamp TVS DIODE DFN-2(6x8)

DFN-2(6x8)ROHS3 CompliantActive

TVS DIODE 26VWM 30VC DFN-2(6x8)

Manufacturer: BOURNS
Manufacturer part #: PTVS2-026C-H
Store part #: C6630090
Package / case: DFN-2(6x8)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

31 in stock

#C6630090

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹1,269.64	₹1,269.64
10+	₹1,144.77	₹11,447.70
30+	₹1,068.89	₹32,066.70
100+	₹1,005.06	₹1,00,506.00

Quantity (min 1)

1 × ₹1,269.64

₹1,269.64

excl. GST

₹1,498.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

PTVS2-026C-H

₹1,269.64 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 30V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 2kA@8/20us
Number of Channels: 1
Voltage - Breakdown: 28V
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 10uA
Reverse Stand-Off Voltage (Vrwm): 26V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.39 g

Overview

The PTVS2-xxxC-H high current bidirectional TVS diodes are designed for use in high power DC bus clamping applications. These devices offer bidirectional port protection and are available with standoff voltage ratings of 22 to 86 V. The devices are RoHS compliant and halogen free and are designed to meet IEC 61000-4-5 8/20 μs current surge requirements.

Applications

Protection against lightning strikes, inductive and transient surges up to rated limits
Exposed PoE ports
Small cell, Remote Radio Units (RRUs) and Baseband Units (BBUs)
High power DC bus protection
DC power line protection
