NexperiaDatasheet (PDF)

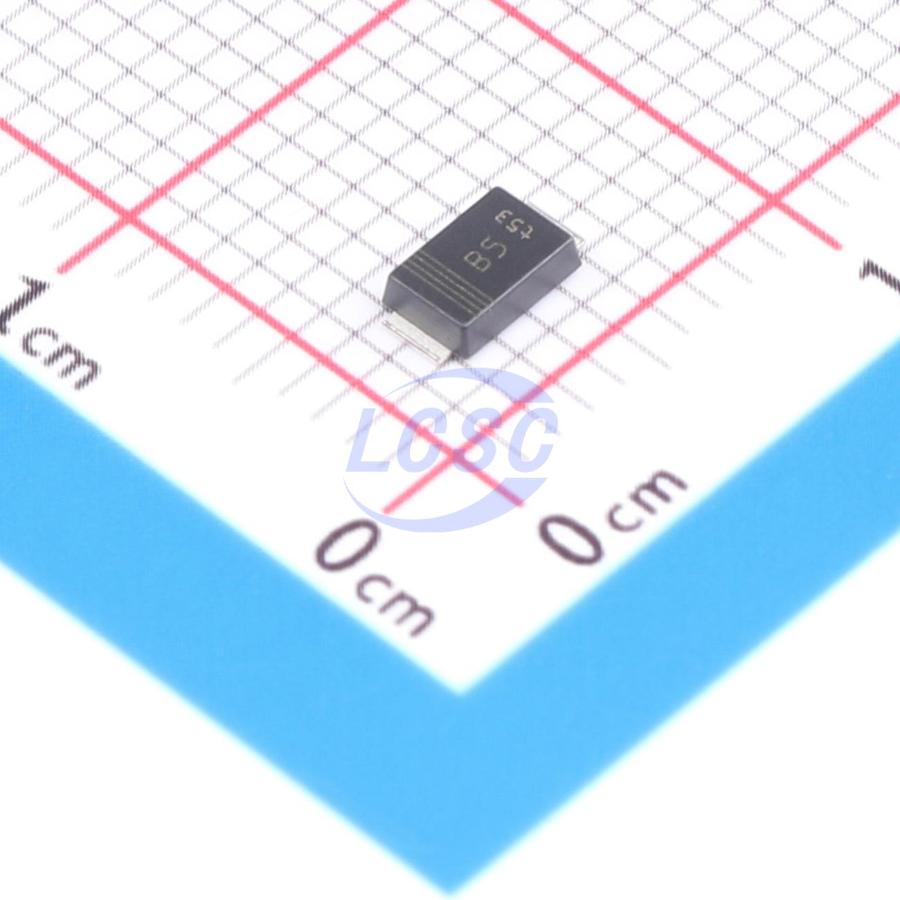

PTVS24VP1UP,115
38.9VC Clamp 15.4A Ipp TVS DIODE SOD-128
SOD-128ROHS3 CompliantActive
TVS DIODE 24VWM 38.9VC SOD-128
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS24VP1UP,115
- Store part #
- C553397
- Package / case
- SOD-128
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C553397
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.22 | ₹61.10 |
| 50+ | ₹11.92 | ₹596.00 |
| 150+ | ₹11.71 | ₹1,756.50 |
| 500+ | ₹11.50 | ₹5,750.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Clamping Voltage
- 38.9V
- Peak Pulse Current (Ipp)
- 15.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 26.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.096 g
Overview
600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
Key features
- Rated peak pulse power: P_PPM = 600 W
- Very low package height: 1 mm
- Reverse standoff voltage range: V_RWM = 3.3 V to 64 V
- Reverse current: I_RM = 0.001 μA
- AEC - Q101 qualified
