NexperiaDatasheet (PDF)

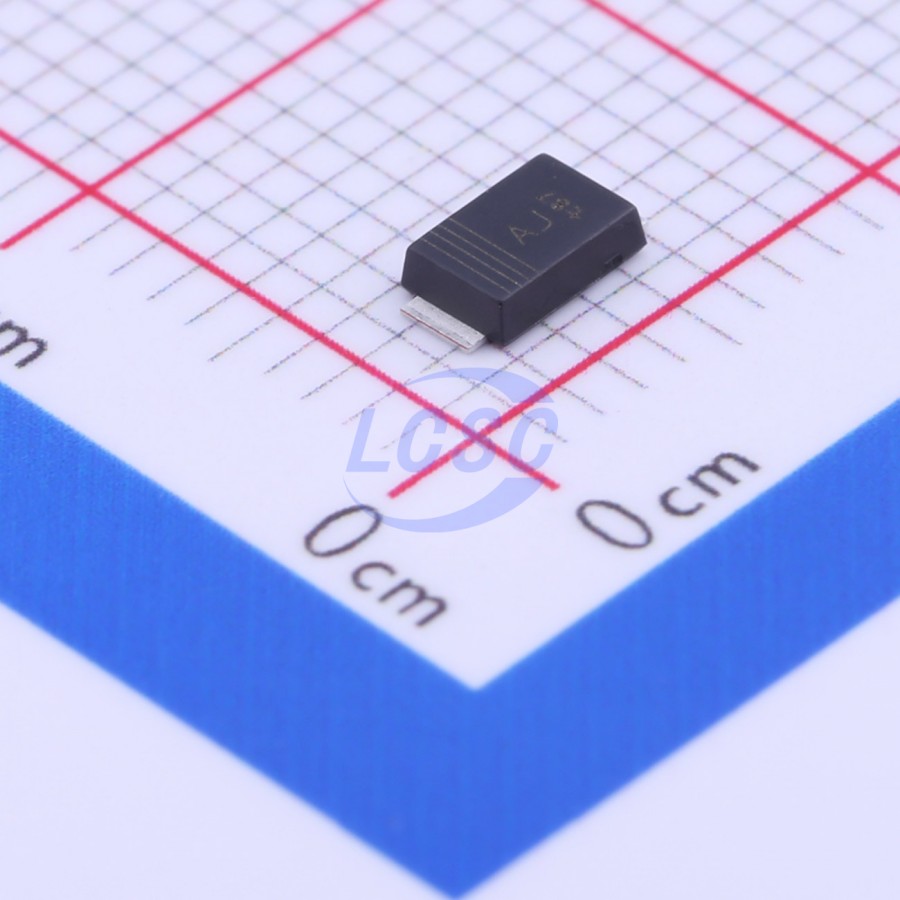

PTVS3V3P1UP,115
8VC Clamp 75A@10/1000us Ipp TVS DIODE SOD-128
SOD-128ROHS3 CompliantActive
TVS DIODE 3.3VWM 8VC SOD-128
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS3V3P1UP,115
- Store part #
- C181792
- Package / case
- SOD-128
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,367 in stock
#C181792
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.71 | ₹71.71 |
| 10+ | ₹56.93 | ₹569.30 |
| 30+ | ₹50.63 | ₹1,518.90 |
| 100+ | ₹42.81 | ₹4,281.00 |
| 500+ | ₹39.33 | ₹19,665.00 |
| 1,000+ | ₹37.16 | ₹37,160.00 |
1 × ₹71.71
₹71.71
excl. GST
₹84.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS3V3P1UP,115
₹71.71 for 1 + GST
Specifications
- Clamping Voltage
- 8V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 75A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 5.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 600uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
Key features
- Rated peak pulse power: P_PPM = 600 W
- Very low package height: 1 mm
- Reverse standoff voltage range: V_RWM = 3.3 V to 64 V
- Reverse current: I_RM = 0.001 μA
- AEC - Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTVS3V3P1UTP,115#C553420Nexperia · SOD-128 | Nexperia | SOD-128 | 360 | ₹40.56 · 360 in stock | View |
| PTVS3V3P1UTP-QX#C20235918Nexperia · SOD-128 | Nexperia | SOD-128 | On request | ₹42.51 · 0 in stock | View | |
