NexperiaDatasheet (PDF)

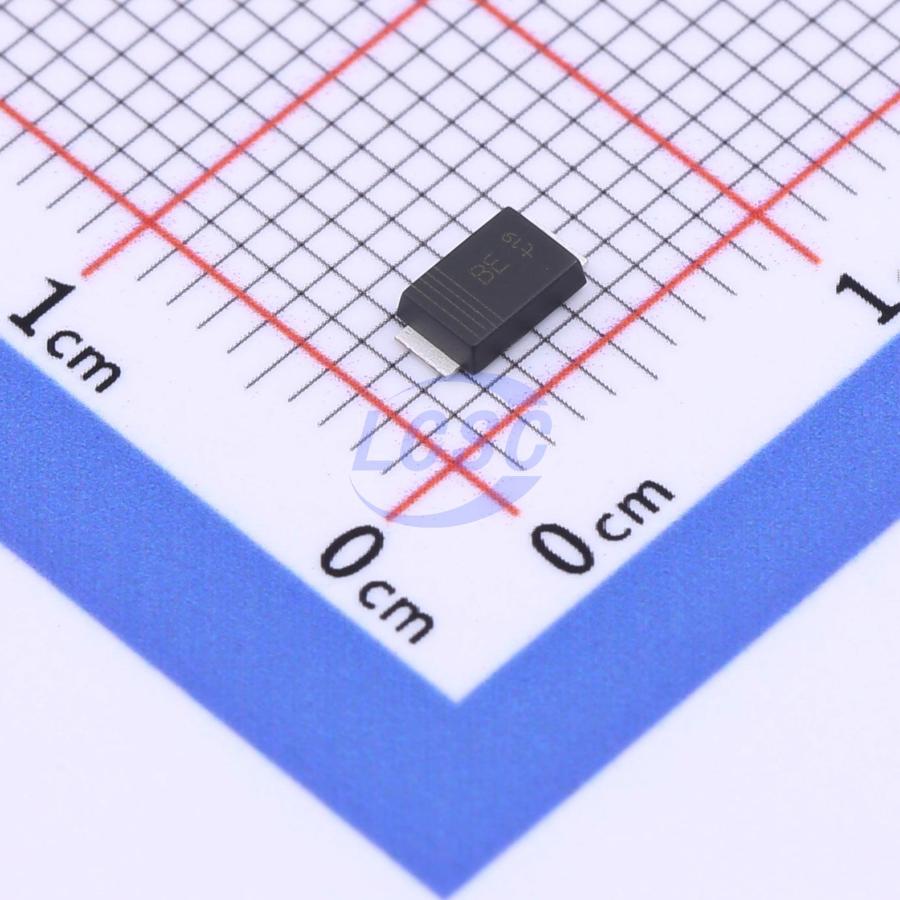

PTVS48VP1UP,115
77.4VC Clamp 7.8A Ipp TVS DIODE SOD-128
SOD-128ROHS3 CompliantActive
TVS DIODE 48VWM 77.4VC SOD-128
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS48VP1UP,115
- Store part #
- C553433
- Package / case
- SOD-128
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C553433
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.44 | ₹212.20 |
| 50+ | ₹33.71 | ₹1,685.50 |
| 150+ | ₹29.97 | ₹4,495.50 |
| 500+ | ₹25.30 | ₹12,650.00 |
| 3,000+ | ₹23.22 | ₹69,660.00 |
| 6,000+ | ₹21.98 | ₹1,31,880.00 |
5 × ₹42.44
₹212.20
excl. GST
₹250.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS48VP1UP,115
₹212.20 for 5 + GST
Specifications
- Clamping Voltage
- 77.4V
- Peak Pulse Current (Ipp)
- 7.8A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 53.3V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 48V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
Key features
- Rated peak pulse power: P_PPM = 600 W
- Very low package height: 1 mm
- Reverse standoff voltage range: V_RWM = 3.3 V to 64 V
- Reverse current: I_RM = 0.001 μA
- AEC - Q101 qualified
