PTVSHC3N18VU-HXY

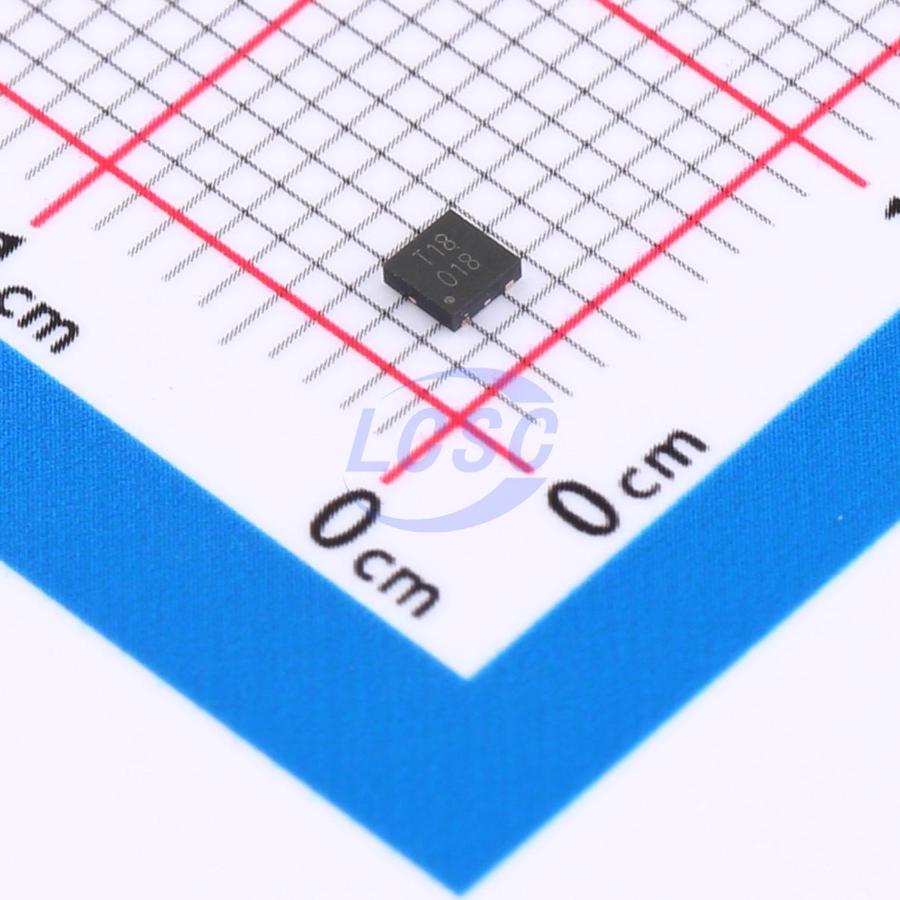

The PTVSHC3N18VU TVS diode is specifically designed to replace multilayer varistors (MLVs) in portable applications such as mobile phones, laptops, and personal digital assistants (PDAs). It offers excellent electrical characteristics, including low clamping voltage, low leakage current, and high surge capability. The diode is designed to protect sensitive electronic components connected to power lines from overstress caused by ESD, EFT, and lightning strikes. The PTVSHC3N18VU comes in a DFN2X2-3L package and protects a single unidirectional line. It provides ESD protection up to ±30kV (contact and air discharge) per IEC61000-4-2, and can withstand a peak pulse current of up to 180A (8/20μs) per IEC61000-4-5.

Applications

• Power Lines
• Personal Digital Assistants (PDAs)
• Microprocessor-Based Devices
• Laptops, Desktop Computers, and Servers
• Mobile Phones and Accessories
• Portable Electronic Devices
• Peripheral Devices

Key features

• Transient protection for high-speed data lines
• IEC 61000-4-2 (ESD) ±30kV (air discharge)
• ±30kV (contact discharge)
• Peak power dissipation: 5460W (8/20μs)
• Operating voltage: 18V
• Low leakage current
• Low clamping voltage
• Ultra-compact package (2.0mm x 2.0mm x 0.5mm)
• Solid-state silicon avalanche technology
