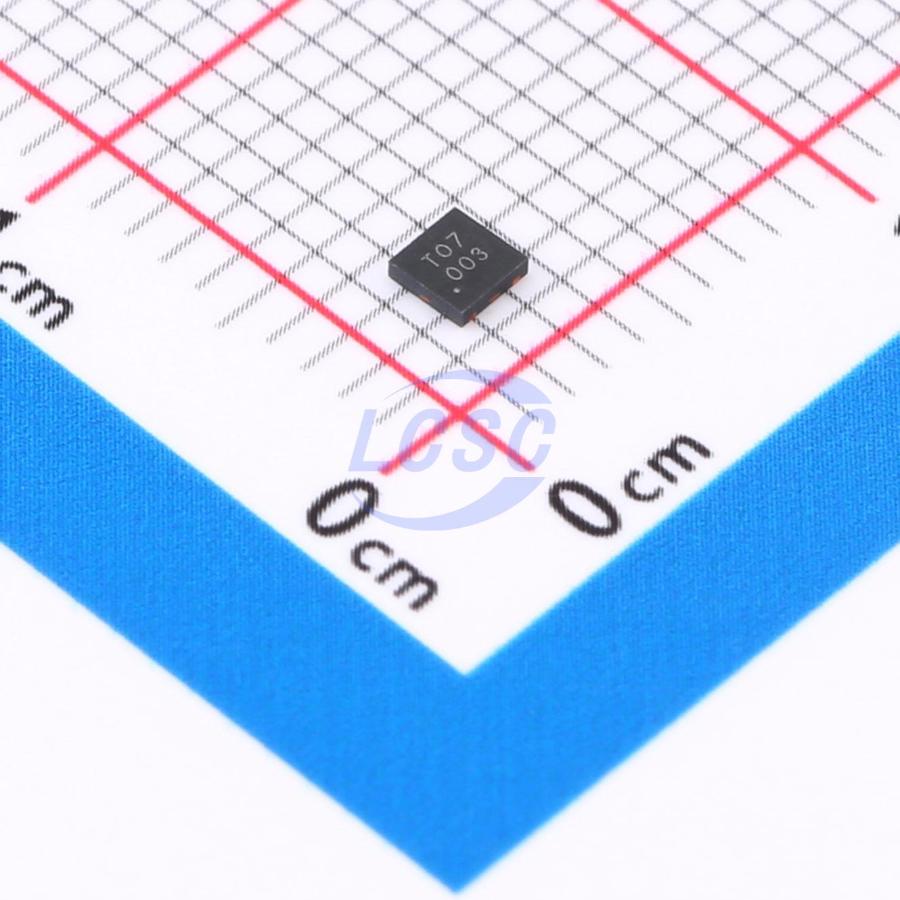

PTVSHC3N7VU-HXY
25V 240A@8/20us 6kW@8/20us 9V Unidirectional 7.5V DFN-3L(2x2) TVS Diodes
TVS DIODE 7.5VWM 25VC DFN-3L(2x2)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- PTVSHC3N7VU-HXY
- Store part #
- C49423283
- Package / case
- DFN-3L(2x2)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C49423283
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.91 | ₹99.10 |
| 100+ | ₹7.98 | ₹798.00 |
| 300+ | ₹7.03 | ₹2,109.00 |
| 3,000+ | ₹6.30 | ₹18,900.00 |
| 6,000+ | ₹5.72 | ₹34,320.00 |
| 9,000+ | ₹5.42 | ₹48,780.00 |
10 × ₹9.91
₹99.10
excl. GST
₹116.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVSHC3N7VU-HXY
₹99.10 for 10 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 240A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 6kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 7.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.021 g
Overview
The PTVSHC3N7VU TVS diode is designed to replace multilayer varistors (MLVs) in portable applications such as mobile phones, laptops, and personal digital assistants (PDAs). It features excellent electrical characteristics, including low clamping voltage, low leakage current, and high surge capability. The diode is designed to protect sensitive electronic components connected to power lines against overstress caused by ESD, EFT, and lightning strikes. The PTVSHC3N7VU is available in a DFN2X2-3L package and protects a single unidirectional line. It provides ESD protection up to ±30kV (contact and air discharge) per IEC61000-4-2, and can withstand a peak pulse current up to 180A (8/20μs) per IEC61000-4-5.
Applications
- Power Lines
- Personal Digital Assistants (PDAs)
- Microprocessor-Based Devices
- Laptops, Desktop Computers, and Servers
- Mobile Phones and Accessories
- Portable Electronic Devices
- Peripherals
Key features
- High-speed data line transient protection: IEC 61000-4-2 (ESD) ±30kV (air)
- ±30kV (contact)
- Peak power dissipation: 6000W (8/20μs)
- Working voltage: 7.5V
- Low leakage current
- Low clamping voltage
- Ultra-small package (2.0mm x 2.0mm x 0.5mm)
- Solid-state silicon avalanche technology
