ROHMDatasheet (PDF)

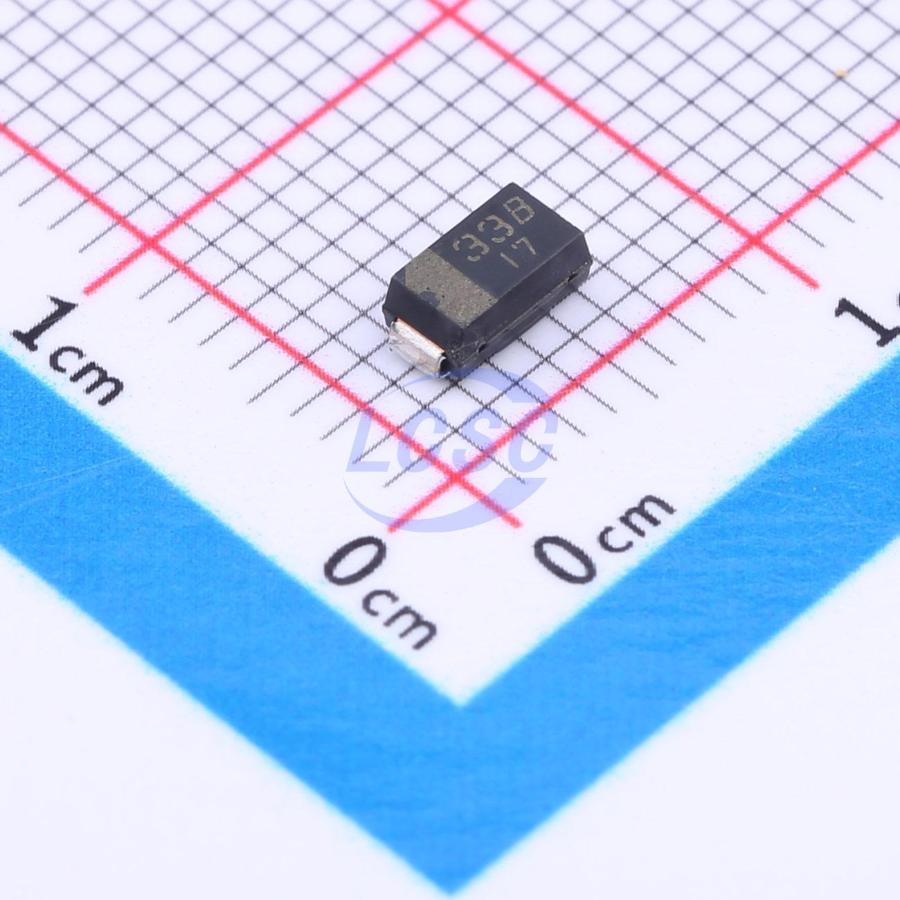

PTZTE2533B
Zener Diode Independent 35V 1W DO-214AC
DO-214ACROHS3 CompliantActive
DIODE ZENER 35V 1W DO-214AC
- Manufacturer
- ROHM
- Manufacturer part #
- PTZTE2533B
- Store part #
- C2909283
- Package / case
- DO-214AC
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
560 in stock
#C2909283
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.35 | ₹66.75 |
| 50+ | ₹10.66 | ₹533.00 |
| 150+ | ₹9.31 | ₹1,396.50 |
| 1,500+ | ₹7.16 | ₹10,740.00 |
| 3,000+ | ₹6.35 | ₹19,050.00 |
| 4,500+ | ₹5.94 | ₹26,730.00 |
5 × ₹13.35
₹66.75
excl. GST
₹78.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
PTZTE2533B
₹66.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 1W
- Reverse Leakage Current (Ir)
- 10uA@25V
- Impedance(Zzt)
- 18Ω
- Zener Voltage(Range)
- 33V~37V
- Zener Voltage(Nom)
- 35V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Overview
Applications
- Voltage regulation and voltage limiting.
- Voltage surge absorption.
Key features
- Small surface mounting type. (PMDS)
- 1W of power can be obtained despite compact size.
- High surge withstand level.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTZTE2533B-MS#C22459376MSKSEMI · SMA | MSKSEMI | SMA | 1,370 | ₹9.37 · 1,370 in stock | View |
 | PTZ33B-MS#C22459401MSKSEMI · SMA | MSKSEMI | SMA | 1,480 | ₹9.37 · 1,480 in stock | View |
 | SMAZ36-13-F#C150508DIODES · SMA | DIODES | SMA | 4,675 | ₹29.85 · 4,675 in stock | View |
 | SMAZ36-MS#C22459358MSKSEMI · SMA(DO-214AC) | MSKSEMI | SMA(DO-214AC) | 1,580 | ₹9.16 · 1,580 in stock | View |
 | 1SMA4753_R1_00001#C268434PANJIT · SMA(DO-214AC) | PANJIT | SMA(DO-214AC) | 590 | ₹11.89 · 590 in stock | View |
