TECH PUBLICDatasheet (PDF)

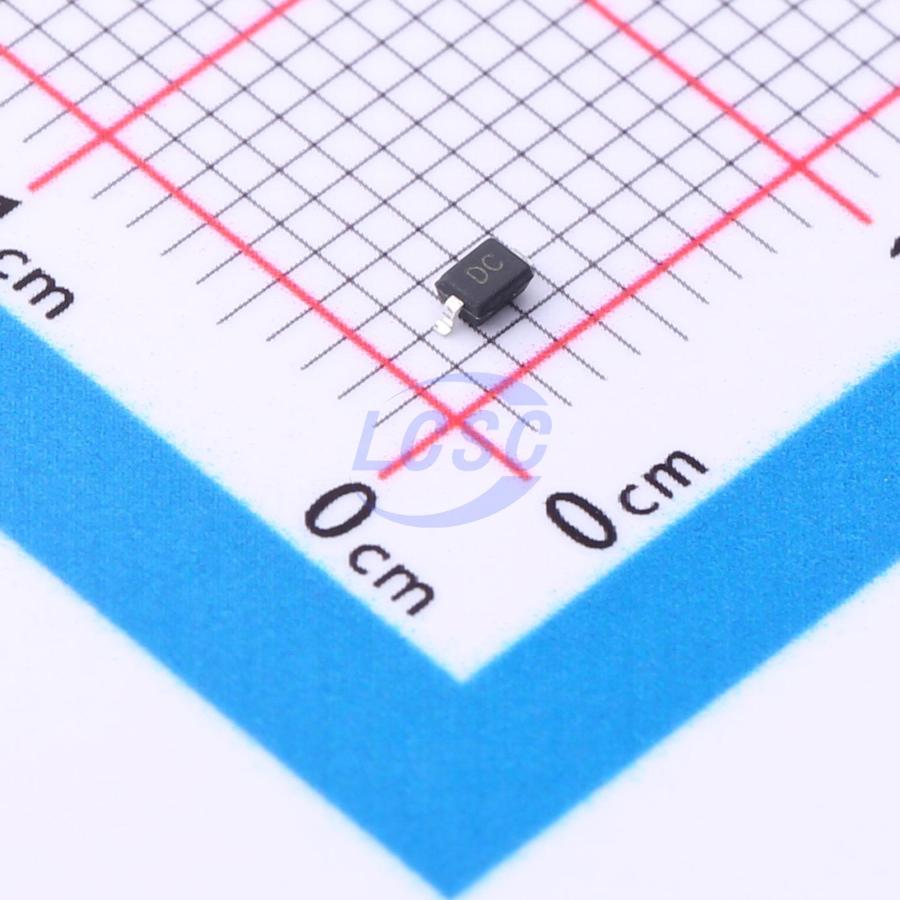

PUDD32C12L01
nan
SOD-323RoHSActive
12VWM 29VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PUDD32C12L01
- Store part #
- C2905614
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,010 in stock
#C2905614
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.88 | ₹68.80 |
| 100+ | ₹5.50 | ₹550.00 |
| 300+ | ₹4.82 | ₹1,446.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.41 | ₹20,460.00 |
| 9,000+ | ₹3.20 | ₹28,800.00 |
10 × ₹6.88
₹68.80
excl. GST
₹81.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PUDD32C12L01
₹68.80 for 10 + GST
Specifications
- Clamping Voltage
- 29V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 12A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 330W@8/20us
- Voltage - Breakdown
- 13V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
Key features
- 330W peak pulse power (8/20μs)
- Low operating: 12V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA level
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
