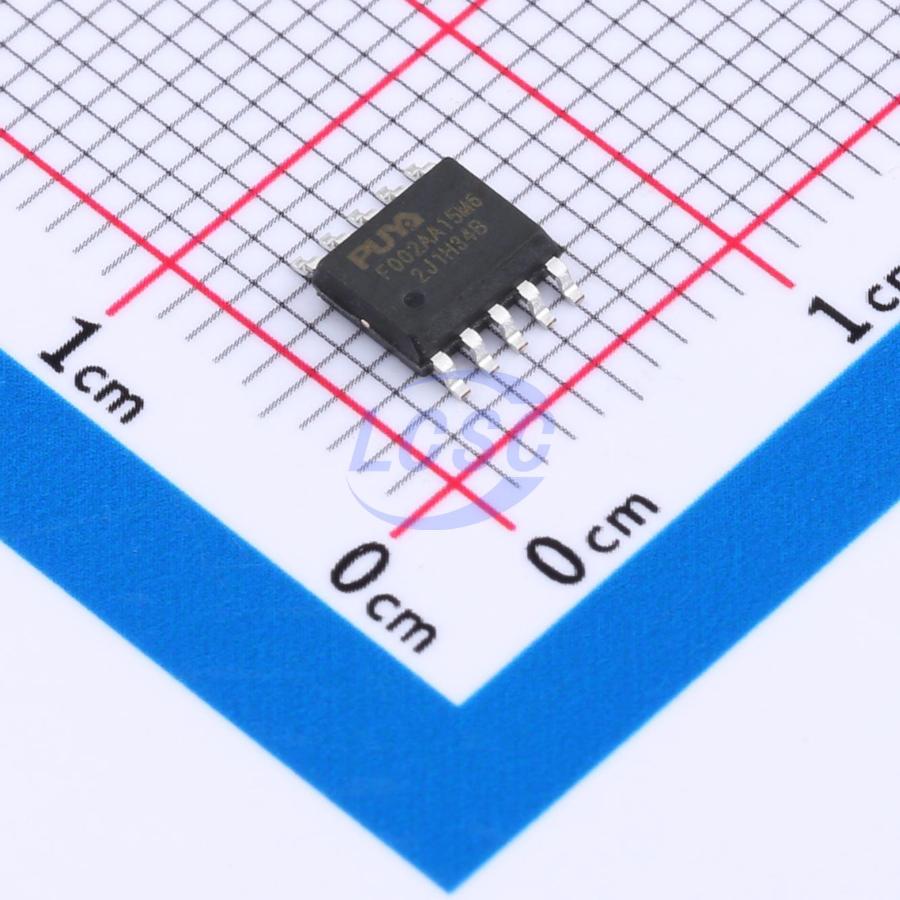

PY32F002AA15M6TU
ARM Cortex-M0+ 32 Bit 24MHz ESSOP-10 Microcontrollers
ESSOP-10RoHSActive
32-bit ARM Cortex-M0+ microcontroller
- Manufacturer
- PUYA
- Manufacturer part #
- PY32F002AA15M6TU
- Store part #
- C5292058
- Package / case
- ESSOP-10
- Category
- Microcontrollers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,190 in stock
#C5292058
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.03 | ₹270.15 |
| 50+ | ₹43.16 | ₹2,158.00 |
| 200+ | ₹36.13 | ₹7,226.00 |
| 500+ | ₹30.32 | ₹15,160.00 |
| 2,500+ | ₹27.73 | ₹69,325.00 |
| 5,000+ | ₹26.18 | ₹1,30,900.00 |
5 × ₹54.03
₹270.15
excl. GST
₹318.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
PY32F002AA15M6TU
₹270.15 for 5 + GST
Specifications
- ADC (Bit)
- 12bit
- Number of I/O
- 8
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.7V~5.5V
- Program Memory Type
- FLASH
- Program Storage Size
- 20KB
- CPU Core
- ARM Cortex-M0+
- Core Size
- 32 Bit
- CPU Maximum Speed
- 24MHz
- Oscillator Type
- Built-in+External
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
PY32F002A series microcontrollers adopt a high-performance 32-bit ARM Cortex-M0+ core, which is a MCU with a wide voltage operating range. It embeds up to 20Kbytes of flash and 3Kbytes of SRAM memory, with a maximum operating frequency of 24MHz. It includes multiple products with various package types. The chip integrates multiple communication peripherals such as I2C, SPI, and USART, a 12-bit ADC, and multiple timers. The operating temperature range of the PY32F002A series microcontrollers is -40℃ to 85℃, and the operating voltage range is 1.7V to 5.5V. The chip provides sleep and stop low-power operating modes, which can meet different low-power applications. The PY32F002A series microcontrollers are suitable for a variety of application scenarios, such as controllers, handheld devices, PC peripherals, game and GPS platforms, and industrial applications.
Applications
- Controllers
- Handheld devices
- PC peripherals
- Game and GPS platforms
- Industrial applications
Key features
- 32-bit ARM Cortex - M0+
- Up to 24MHz operating frequency
- Maximum 20Kbytes flash memory
- Maximum 3Kbytes SRAM
- Internal 8/24MHz RC oscillator (HSI)
- Internal 32.768KHz RC oscillator (LSI)
- 4~24MHz crystal oscillator (HSE)
- Operating voltage: 1.7V~5.5V
- Low-power modes: Sleep and Stop
- Power-on/power-down reset (POR/PDR)
- Brown-out detection reset (BOR)
- Up to 18 I/O, all can be used as external interrupts
- Drive current: 8mA
- 1 x 12-bit ADC
- Support up to 9 external input channels
- Input voltage conversion range: 0~VCC
- 1 16-bit advanced control timer (TIM1)
- 1 basic timer (TIM16)
- 1 low-power timer (LPTIM), supports wake-up from stop mode
- 1 independent watchdog timer (IWDT)
- 1 SysTick timer
- 1 serial peripheral interface (SPI)
- 1 universal synchronous/asynchronous receiver/transmitter (USART), supports automatic baud rate detection
- 1 I2C interface, supports standard mode (100kHz), fast mode (400kHz), supports 7-bit addressing mode
- Hardware CRC-32 module
- 2 comparators
- Unique UID
- Serial single-wire debugging (SWD)
- Operating temperature: -40~85℃
