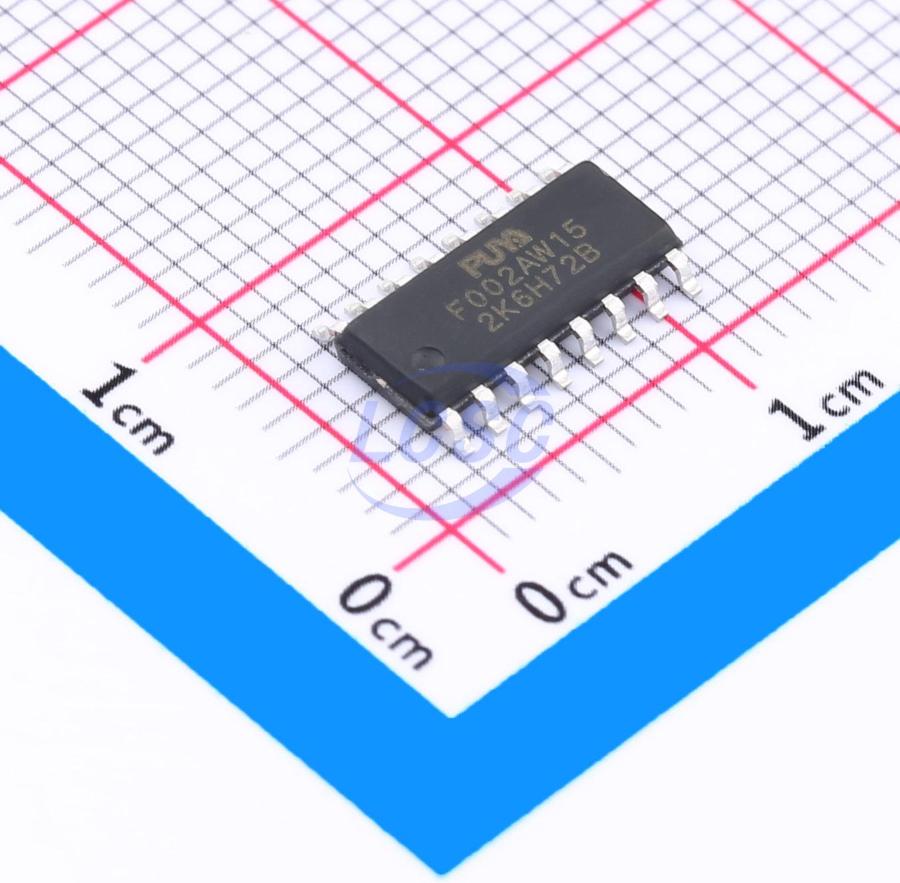

PY32F002AW15S6TU

PY32F002A series microcontrollers adopt a high-performance 32-bit ARM Cortex-M0+ core, which is a MCU with a wide voltage operating range. It embeds up to 20Kbytes of flash and 3Kbytes of SRAM memory, with a maximum operating frequency of 24MHz. It includes multiple products with various package types. The chip integrates multiple communication peripherals such as I2C, SPI, and USART, a 12-bit ADC, and multiple timers. The operating temperature range of the PY32F002A series microcontrollers is -40℃ to 85℃, and the operating voltage range is 1.7V to 5.5V. The chip provides sleep and stop low-power operating modes, which can meet different low-power applications. The PY32F002A series microcontrollers are suitable for a variety of application scenarios, such as controllers, handheld devices, PC peripherals, game and GPS platforms, and industrial applications.

Applications

• Controllers
• Handheld devices
• PC peripherals
• Game and GPS platforms
• Industrial applications

Key features

• 32-bit ARM Cortex - M0+
• Up to 24MHz operating frequency
• Maximum 20Kbytes flash memory
• Maximum 3Kbytes SRAM
• Internal 8/24MHz RC oscillator (HSI)
• Internal 32.768KHz RC oscillator (LSI)
• 4~24MHz crystal oscillator (HSE)
• Operating voltage: 1.7V~5.5V
• Low-power modes: Sleep and Stop
• Power-on/power-down reset (POR/PDR)
• Brown-out detection reset (BOR)
• Up to 18 I/O, all can be used as external interrupts
• Drive current: 8mA
• 1 x 12-bit ADC
• Support up to 9 external input channels
• Input voltage conversion range: 0~VCC
• 1 16-bit advanced control timer (TIM1)
• 1 basic timer (TIM16)
• 1 low-power timer (LPTIM), supports wake-up from stop mode
• 1 independent watchdog timer (IWDT)
• 1 SysTick timer
• 1 serial peripheral interface (SPI)
• 1 universal synchronous/asynchronous receiver/transmitter (USART), supports automatic baud rate detection
• 1 I2C interface, supports standard mode (100kHz), fast mode (400kHz), supports 7-bit addressing mode
• Hardware CRC-32 module
• 2 comparators
• Unique UID
• Serial single-wire debugging (SWD)
• Operating temperature: -40~85℃
