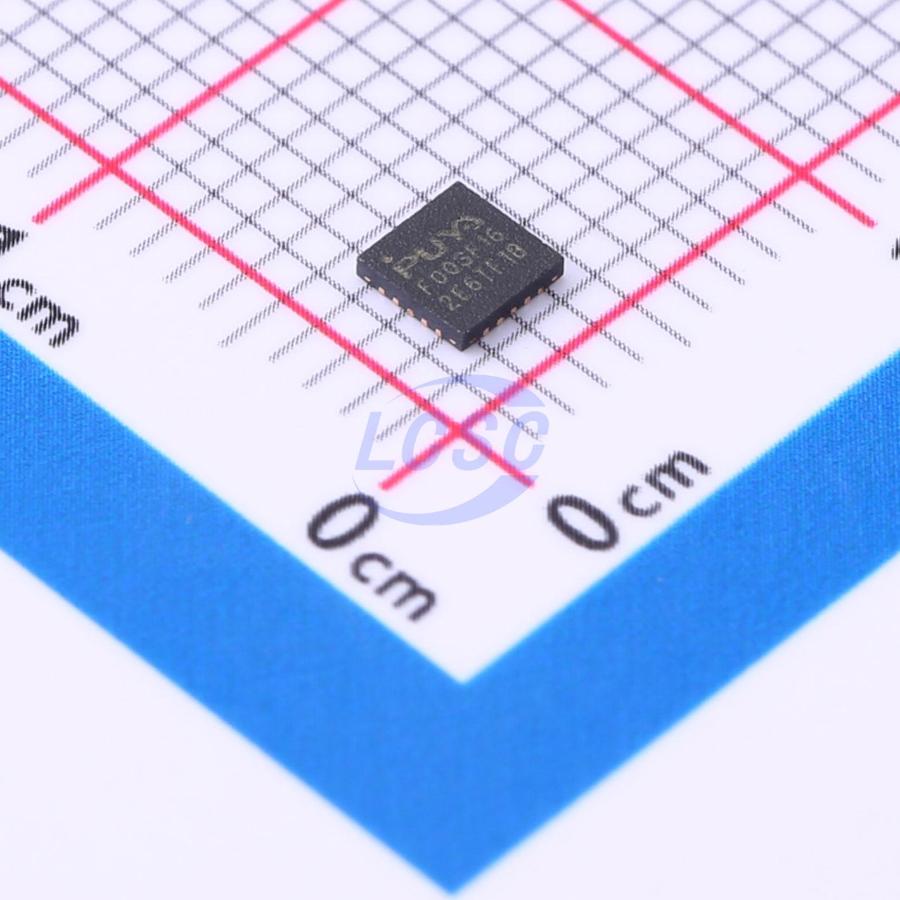

PY32F003F16U6TR

The PY32F003 series MCUs are based on a high-performance 32-bit ARM Cortex-M0+ core, supporting a wide operating voltage range. They feature up to 32Kbytes of flash and 4Kbytes of SRAM, with a maximum operating frequency of 32MHz. The series offers multiple products in various package types. On-chip peripherals include multiple I2C, SPI, and USART interfaces, a 1-channel 12-bit ADC, five 16-bit timers, and 2 comparators. The PY32F003 series operates over a temperature range of -40°C~85°C and a supply voltage range of 1.7V~5.5V. Sleep and stop low-power modes are supported to address diverse low-power application requirements. The PY32F003 series is suited for a wide range of applications, including controllers, handheld devices, PC peripherals, gaming and GPS platforms, and industrial applications.

Applications

• Controllers
• Handheld devices
• PC peripherals
• Gaming and GPS platforms
• Industrial applications

Key features

• Core: 32-bit ARM Cortex-M0+, up to 32MHz operating frequency
• Memory: up to 32Kbytes flash, up to 4Kbytes SRAM
• Clock system: internal 4/8/16/22.12/24MHz RC oscillator (HSI); internal 32.768KHz RC oscillator (LSI); 4~32MHz crystal oscillator (HSE)
• Power management and reset: operating voltage 1.7V~5.5V; low-power modes: Sleep and Stop; power-on/power-down reset (POR/PDR); brownout reset (BOR); programmable voltage detector (PVD)
• GPIO: up to 18 I/Os, all capable of external interrupt; 8mA drive current
• 3-channel DMA controller
• 1 x 12-bit ADC: up to 10 external input channels; input voltage conversion range: 0~VCC
• Timers: 1x 16-bit advanced control timer (TIM1); 4x general-purpose 16-bit timers (TIM3/TIM14/TIM16/TIM17); 1x low-power timer (LPTIM) with Stop mode wakeup support; 1x independent watchdog timer (IWDT); 1x window watchdog timer (WWDT); 1x SysTick timer; 1x IRTIM
• RTC
• Communication interfaces: 1x SPI; 2x USART with auto baud rate detection; 1x I2C supporting standard mode (100kHz) and fast mode (400kHz), 7-bit addressing mode
• Hardware CRC-32 module
• 2x comparators
• Unique UID
• Serial Wire Debug (SWD)
• Operating temperature: -40~85°C
• Package: TSSOP20, QFN20
