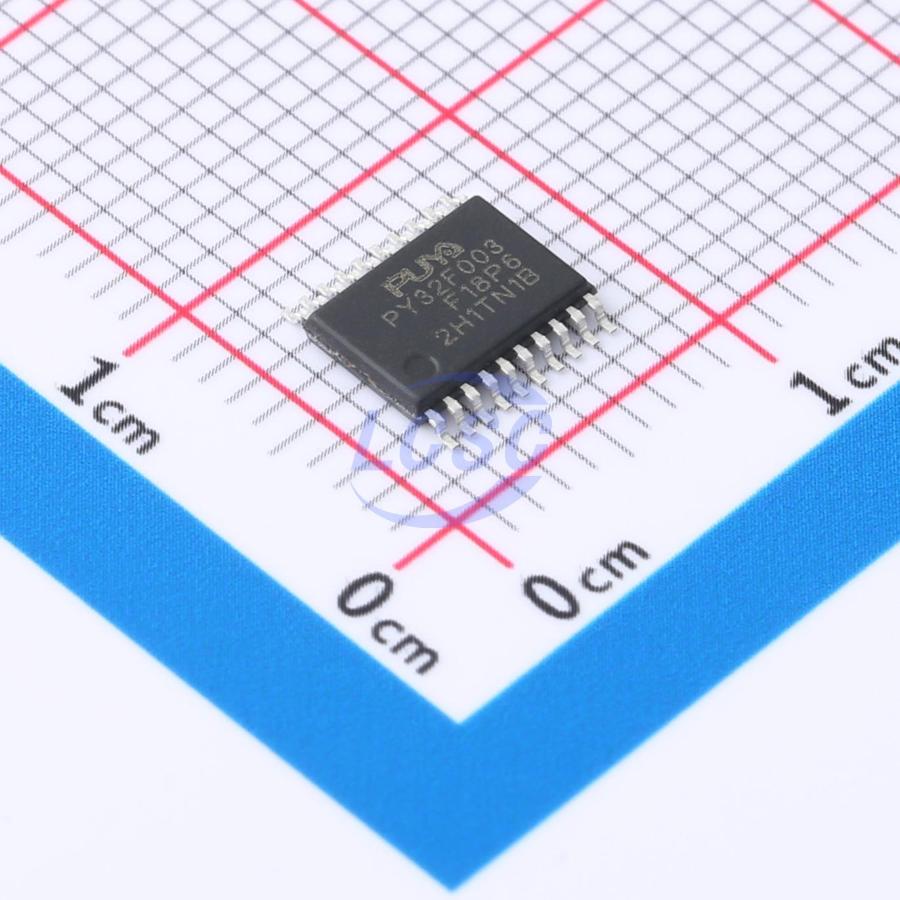

PY32F003F18P6TU

The PY32F003 series MCU features a high-performance 32-bit ARM Cortex-M0+ core with a wide operating voltage range. It integrates up to 32Kbytes of flash and 4Kbytes of SRAM, with a maximum operating frequency of 32MHz. The series offers multiple products in various package types. The MCU integrates multiple I2C, SPI, and USART communication peripherals, a 1-channel 12-bit ADC, five 16-bit timers, and 2 comparators. The PY32F003 series operates over a temperature range of -40°C~85°C and a supply voltage range of 1.7V~5.5V. It provides sleep and stop low-power operating modes to meet diverse low-power application requirements. The PY32F003 series is suitable for a wide range of applications, including controllers, handheld devices, PC peripherals, gaming and GPS platforms, and industrial applications.

Applications

• Controllers
• Handheld devices
• PC peripherals
• Gaming and GPS platforms
• Industrial applications

Key features

• Core: 32-bit ARM Cortex-M0+, up to 32MHz operating frequency
• Memory: up to 64Kbytes flash, up to 8Kbytes SRAM
• Clock system: internal 4/8/16/22.12/24MHz RC oscillator (HSI), internal 32.768KHz RC oscillator (LSI), 4~32MHz crystal oscillator (HSE)
• Power management and reset: 1.7V~5.5V operating voltage, low-power modes Sleep and Stop, power-on/power-down reset (POR/PDR), brownout reset (BOR), programmable voltage detection (PVD)
• GPIO: up to 18 I/Os, all capable of external interrupt, 8mA drive current
• 3-channel DMA controller
• 1 x 12-bit ADC: up to 10 external input channels, input voltage conversion range 0~VCC
• Timers: 1x 16-bit advanced control timer (TIM1), 4x general-purpose 16-bit timers (TIM3/TIM14/TIM16/TIM17), 1x low-power timer (LPTIM) with Stop mode wakeup support, 1x independent watchdog timer (IWDT), 1x window watchdog timer (WWDT), 1x SysTick timer, 1x IRTIM
• Communication interfaces: 1x SPI, 2x USART with auto baud rate detection, 1x I2C supporting standard mode (100kHz) and fast mode (400kHz) with 7-bit addressing
