PUYA

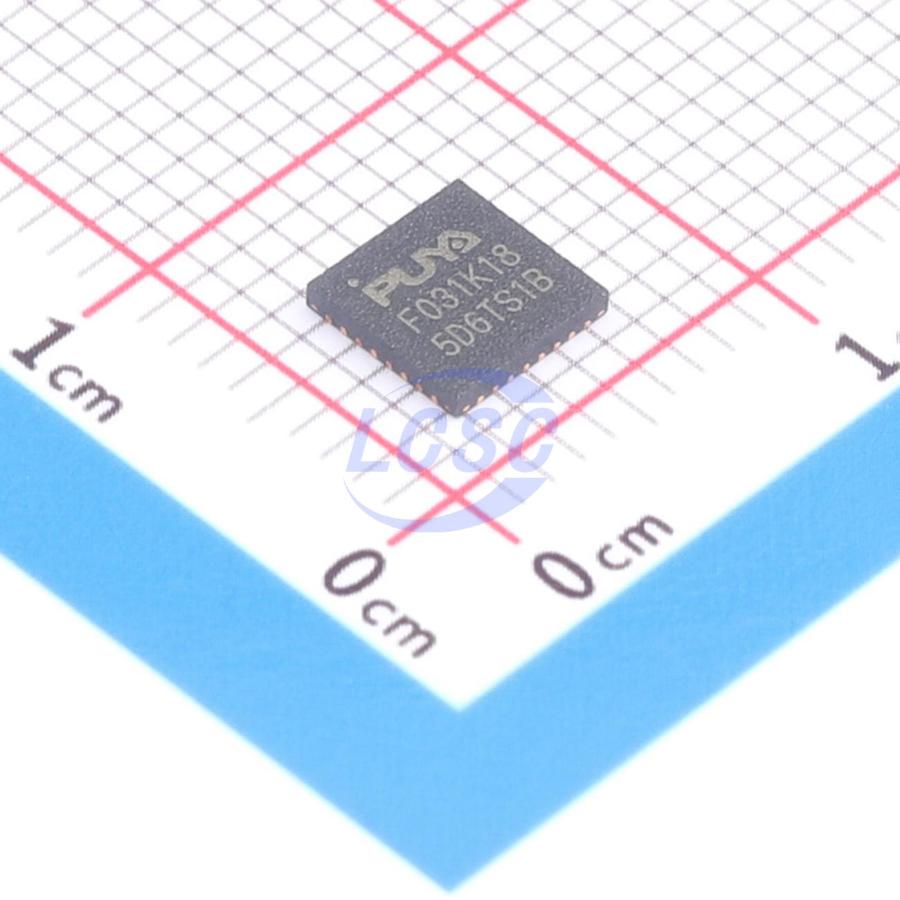

PY32F031K18U6TR

ARM Cortex-M0+ 32 Bit 72MHz QFN-32(5x5) Microcontrollers

QFN-32(5x5)RoHSActive

Manufacturer: PUYA
Manufacturer part #: PY32F031K18U6TR
Store part #: C22459605
Package / case: QFN-32(5x5)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,756 in stock

#C22459605

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹51.07	₹51.07
10+	₹44.76	₹447.60
30+	₹41.94	₹1,258.20
100+	₹38.46	₹3,846.00
500+	₹36.94	₹18,470.00
1,000+	₹36.08	₹36,080.00

Quantity (min 1)

1 × ₹51.07

₹51.07

excl. GST

₹60.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

PY32F031K18U6TR

₹51.07 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

ADC (Bit): 12bit
Number of I/O: 30
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.7V~5.5V
Program Memory Type: FLASH
CPU Core: ARM Cortex-M0+
Program Storage Size: 64KB
Core Size: 32 Bit
CPU Maximum Speed: 72MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.152 g

Overview

Key features

32-bit ARM® Cortex®-M0+ core
Up to 72 MHz operating frequency
Up to 64 KB Flash memory
Up to 8 KB SRAM
128-byte user OTP data
Internal 4/8/16/22.12/24 MHz RC oscillator (HSI)
Internal 32.768 kHz RC oscillator (LSI)
4 ~ 32 MHz crystal oscillator (HSE)
32.768 kHz low-speed crystal oscillator (LSE)
PLL supporting 2x and 3x frequency multiplication
Operating voltage range 1.7 ~ 5.5 V
Low-power modes: Sleep mode, Stop mode
Power-on/power-down reset (POR/PDR)
Brown-out reset (BOR)
Programmable voltage detector (PVD)
Up to 44 GPIO pins, all capable of external interrupt source
3-channel DMA controller
1x 12-bit ADC, up to 10 external input channels and 5 internal channels, input conversion range 0 ~ VCC, internal reference voltage selectable 1.024 V/1.5 V/2.048 V/2.5 V
4×18 or 8×14 segment LCD controller
1x 16-bit advanced-control timer (TIM1)
3x general-purpose 16-bit timers (TIM14/TIM16/TIM17)
1x general-purpose 32-bit timer (TIM2)
1x low-power timer (LPTIM) with Stop mode wakeup support
1x independent watchdog timer (IWDG)
1x window watchdog timer (WWDG)
1x SysTick timer
1x infrared transmit timer (IRTIM)
1x RTC
2x SPI, one with I2S protocol support
3x USART with auto baud rate detection, one with LIN protocol support
2x I2C, supporting Standard mode (100 kHz), Fast mode (400 kHz), and Fast-mode Plus (1 MHz), 7-bit addressing
Hardware CRC-32 module
2x comparators
2x op-amps
Hardware 32-bit divider (DIV)
Digital co-processor (square root, sine/cosine, arctangent operations)
Device unique identifier (UID)
Serial Wire Debug (SWD) interface
Operating temperature range: -40 ~ 85 ℃, -40 ~ 105 ℃
Package types: LQFP48, QFN48(6×6), QFN48(5×5), QFN40, LQFP32, QFN32(5×5), QFN32(4×4), TSSOP20, DFN8(2×2×0.45)
