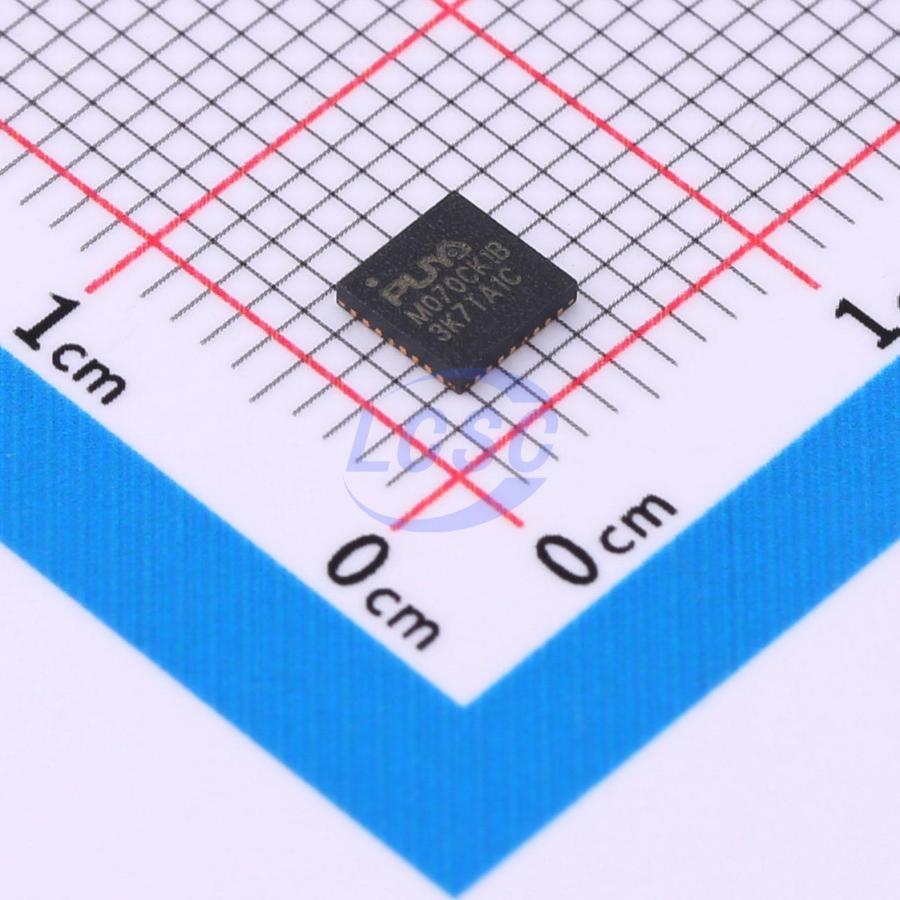

PUYA

PY32M070K1BU7TR-C

ARM Cortex-M0+ 32 Bit 72MHz QFN-32-EP(4x4) Microcontrollers

QFN-32-EP(4x4)RoHSActive

Manufacturer: PUYA
Manufacturer part #: PY32M070K1BU7TR-C
Store part #: C20754746
Package / case: QFN-32-EP(4x4)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,162 in stock

#C20754746

Stock & price checked 21 h ago

Quantity	Unit price	Pack price
1+	₹85.06	₹85.06
10+	₹64.39	₹643.90
30+	₹55.70	₹1,671.00
100+	₹44.60	₹4,460.00
500+	₹39.81	₹19,905.00
1,000+	₹36.77	₹36,770.00

Quantity (min 1)

1 × ₹85.06

₹85.06

excl. GST

₹100.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

PY32M070K1BU7TR-C

₹85.06 for 1 + GST

Specifications

DAC (Bit): 12bit
ADC (Bit): 12bit
Number of I/O: 28
Operating Temperature: -40℃~+105℃
Voltage - Supply: 2V~5.5V
Program Memory Type: FLASH
Program Storage Size: 128KB
CPU Core: ARM Cortex-M0+
Core Size: 32 Bit
CPU Maximum Speed: 72MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.08 g

Overview

The PY32M070-C series microcontrollers are based on a high-performance 32-bit ARM Cortex-M0+ core, operating across a wide voltage range. They feature up to 128KB of Flash memory and 16KB of SRAM, with a maximum operating frequency of 72MHz. The series is available in multiple package types. The MCU integrates multiple I²C, SPI, and USART communication peripherals, a 1-channel 12-bit ADC, 2-channel DAC, 13 timers, 3 comparators, and 2 op-amps. The PY32M070-C series operates over a temperature range of -40 ~ 105℃ and a supply voltage range of 2.0 ~ 5.5V. Sleep and Stop low-power modes are supported to meet diverse low-power application requirements. This MCU series is suitable for a wide range of applications.

Key features

32-bit ARM Cortex-M0+ core
Up to 72 MHz operating frequency
Up to 128KB Flash
Up to 16KB SRAM
Internal high-speed clock (HSI): 4/8/16/22.12/24 MHz
Internal low-speed clock (LSI): 32.768 kHz
External high-speed crystal oscillator (HSE): 4 ~ 32 MHz (PF0)
External low-speed crystal oscillator (LSE): 32.768 kHz (PC14)
PLL supporting 2x and 3x multiplication for HSE/HSI
Operating voltage: 2.0 ~ 5.5 V
Low-power modes: Sleep and Stop
Power-on/power-down reset (POR/PDR)
Brown-out reset (BOR)
Programmable voltage detector (PVD)
Up to 28 I/Os, all capable of external interrupt
7-channel DMA controller
1x 12-bit ADC, up to 11 external input channels, input conversion range: 0 ~ VCCA
2x 12-bit DAC, 2 channels
3x comparators
2x op-amps
1x 16-bit advanced-control timer (TIM1)
1x 32-bit general-purpose timer (TIM2)
5x 16-bit general-purpose timers (TIM3/14/15/16/17)
2x basic timers (TIM6/TIM7)
1x low-power timer (LPTIM) with wakeup from low-power mode
1x independent watchdog timer (IWDG)
1x window watchdog timer (WWDG)
1x SysTick timer
RTC
Up to 2x SPI with I²S functionality
Up to 4x USART with auto baud rate detection; 2 support ISO7816, LIN, and IrDA
Up to 2x I²C, supporting standard mode (100 kHz) and fast mode (400 kHz), 7-bit/10-bit addressing; one supports SMBus/PMBus
Hardware CRC-32 module
Hardware 32-bit divider (DIV)
UID
Serial Wire Debug (SWD)
Operating temperature: -40 ~ 105℃
Packages: QFN32, SSOP24, QFN24
