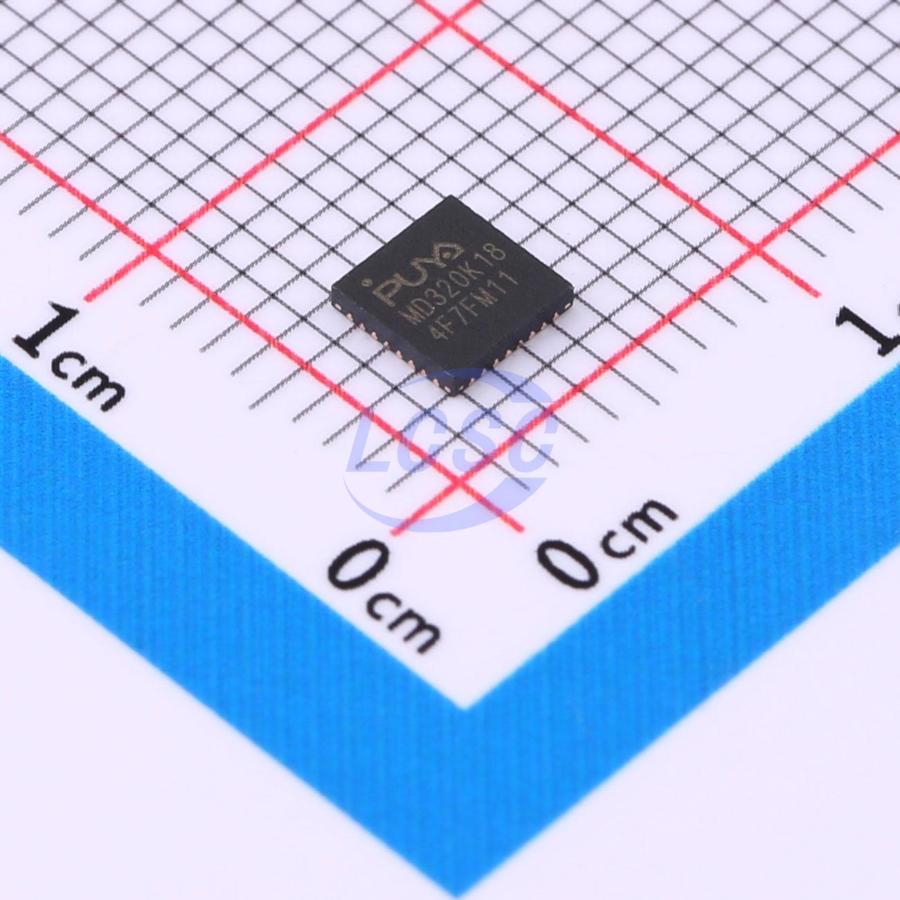

PY32MD320K18U7TR

The PY32MD320 series microcontrollers feature a high-performance 32-bit ARM Cortex-M0+ core with a wide voltage operating range. Embedded with up to 64 Kbytes of flash and 8 Kbytes of SRAM, operating at a maximum frequency of 48 MHz. Multiple products are available in various package types. The MCU integrates multiple I2C, SPI, and USART communication peripherals, a 1-channel 12-bit ADC, 5 sixteen-bit timers, and 2 comparators. The PY32MD320 series microcontrollers operate over a temperature range of -40℃~105℃ and a supply voltage range of 1.7 V~5.5 V. The device provides sleep and stop low-power operating modes to meet various low-power application requirements.

Applications

• Three-phase BLDC/PMSM
• Water pumps
• Power tools
• Drone/RC models

Key features

• Memory: Up to 64 Kbytes flash, up to 8 Kbytes SRAM
• Clock System: Internal 4/8/16/22.12/24 MHz RC oscillator (HSI), internal 32.768 KHz RC oscillator (LSI), PLL (supports 2x multiplication of HSI)
• Power Management & Reset: Operating voltage 1.7~5.5 V, low-power modes: Sleep and Stop, POR/PDR, BOR, PVD
• GPIO: Up to 14 I/Os, all capable of external interrupt, 8 mA drive current
• 1 x 12-bit ADC: Up to 7 external input channels, input voltage conversion range 0~Vcc
• Timers: 1x 16-bit advanced control timer (TIM1), 4x general-purpose 16-bit timers (TIM3/TIM14/TIM16/TIM17), 1x low-power timer (LPTIM) with Stop mode wake-up support, 1x independent watchdog timer (IWDT), 1x window watchdog timer (WWDT), 1x SysTick timer, 1x IRTIM
• RTC
• Communication Interfaces: 2x SPI, 2x USART with auto baud rate detection, 1x I2C supporting standard mode (100 KHz) and fast mode (400 KHz) with 7-bit addressing
• Unique UID, SWD
• Operating Temperature: -40~105℃
• Package: QFN32 (4*4)
