NexperiaDatasheet (PDF)

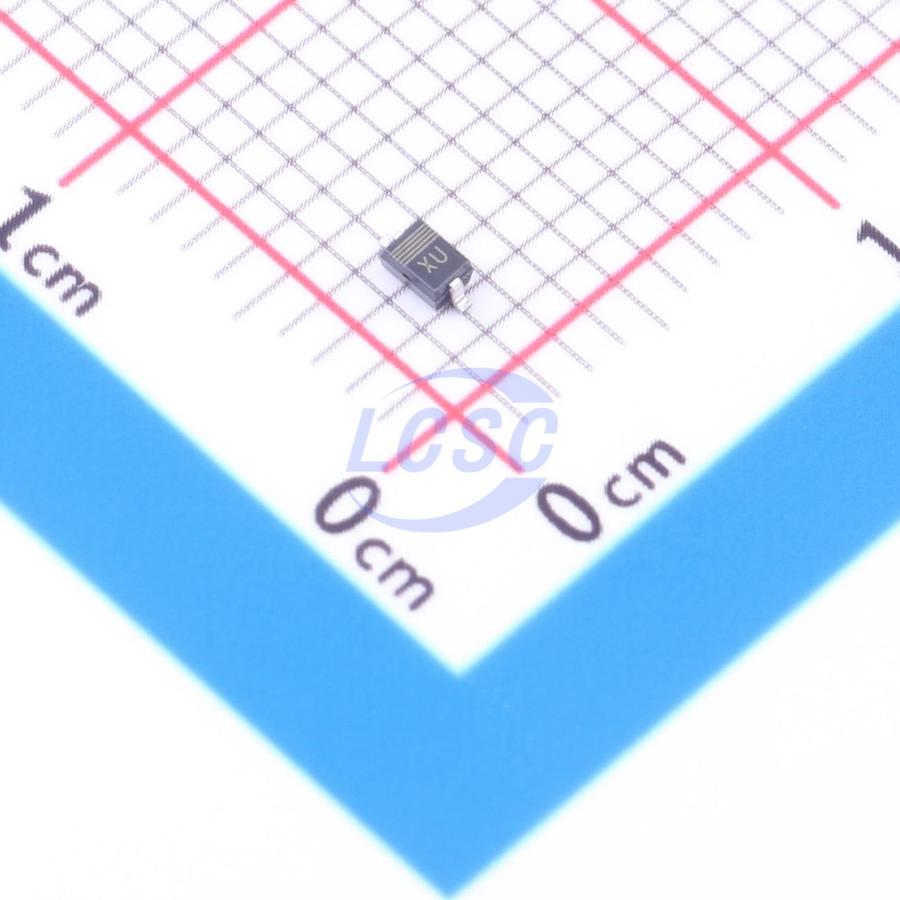

PZU3.0B1A,115
1 Independent 2.8V~3.05V 3V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU3.0B1A,115
- Store part #
- C553686
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C553686
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.00 | ₹95.00 |
| 50+ | ₹18.56 | ₹928.00 |
| 150+ | ₹18.27 | ₹2,740.50 |
| 500+ | ₹17.98 | ₹8,990.00 |
5 × ₹19.00
₹95.00
excl. GST
₹112.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU3.0B1A,115
₹95.00 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 320mW
- Reverse Leakage Current (Ir)
- 10uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 2.8V~3.05V
- Zener Voltage(Nom)
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
General- purpose Zener diodes in a SOD323 (SC- 76) very small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W
- Total power dissipation: Ptot ≤ 320 mW
- Tolerance series:
- B: approximately ± 5%
- B1, B2, B3: approximately ± 2%
- Wide working voltage range: nominal 2.4 V to 36 V (E24 range)
- Low reverse current IR range
- Small plastic package suitable for surface-mounted design
- PZU5.1BA - 10BA: Very low dynamic impedances at low currents, very low leakage current, hard breakdown knee
- PZU-types at 10 V: Intentional minor rise of leakage current for optimized fast switching and noise reduction [Ref. AN90031]
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384-B3V0,115#C550556Nexperia · SOD-323(SC-76) | Nexperia | SOD-323(SC-76) | 18,460 | ₹4.33 · 18,460 in stock | View |
 | PDZ3.0B,115#C503378Nexperia · SOD-323 | Nexperia | SOD-323 | 67,580 | ₹3.43 · 67,580 in stock | View |
 | PZU3.0B2,115#C553687Nexperia · SOD-323F | Nexperia | SOD-323F | 2,960 | ₹8.51 · 2,960 in stock | View |
 | BZX384B3V0-G3-08#C5957727VISHAY · SOD-323 | VISHAY | SOD-323 | 2,890 | ₹21.80 · 2,890 in stock | View |
 | BZX384-B3V0-QX#C7508089Nexperia · SOD-323 | Nexperia | SOD-323 | 3,000 | ₹5.83 · 3,000 in stock | View |
